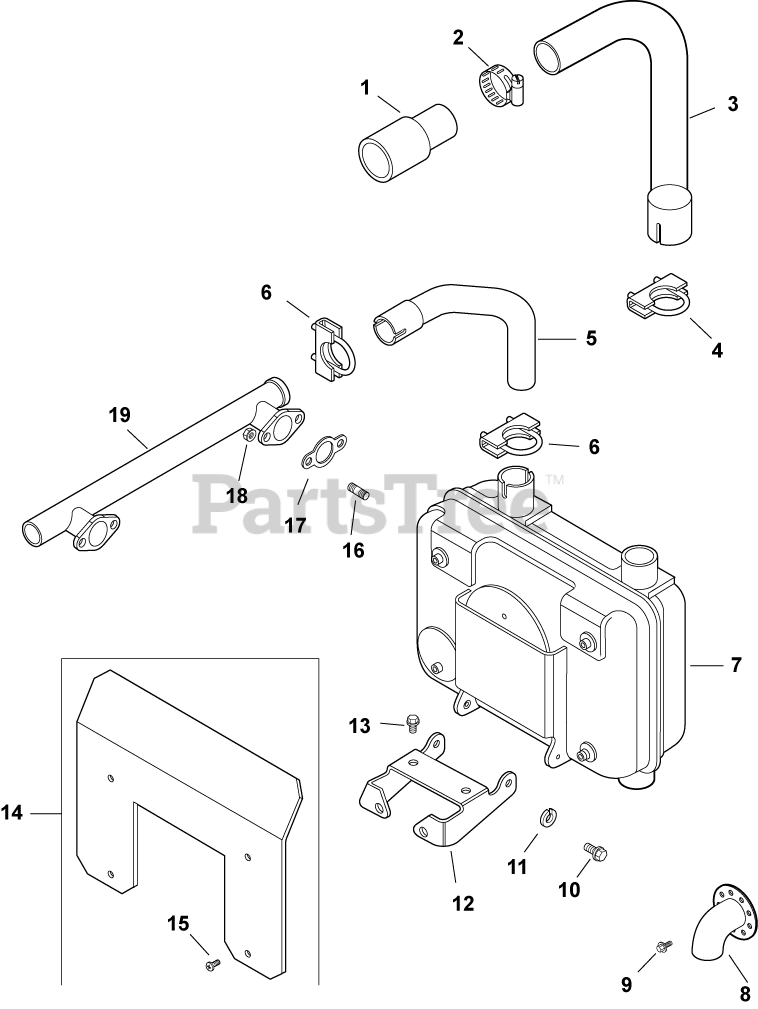

CH18-62562 - Kohler Command PRO Twin Engine, Made for Chetech/Smithco, 18hp, 13.4kW Exhaust 11-24-97 for CH740-0056 Parts Diagram

Command PRO Twin Engine, Made for Chetech/Smithco, 18hp, 13.4kW

Exhaust 11-24-97 for CH740-0056 Parts Diagram

  • Title

1

Kohler 24 326 09-S

HOSE, STEP

$42.99

$

Usually ships in 2-5 days

0

2

Kohler 24 237 02-S

CLAMP, HOSE

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 24 123 14-S

TUBE, CONNECTOR - USE 24 123 26-S
(Superseded to 24 123 26-S)

$63.99

$

Usually ships in 2-5 days

0

4

Kohler 24 237 13-S

CLAMP, MUFFLER

$12.99

$

Usually ships in 2-5 days

0

5

Kohler 24 382 03-S

PIPE, EXHAUST

$48.99

$

Usually ships in 2-5 days

0

6

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

7

Kohler 24 068 24-S

MUFFLER, SIDE MOUNT USE 24 068 155-S
(Superseded to 24 068 155-S)

$458.99

$

Usually ships in 2-5 days

0

8

Kohler 12 265 03-S

DEFLECTOR, EXHAUST - USE 12 265 09-S
(Superseded to 12 265 09-S)

$80.99

$

In Stock, only 1 left!

0

9

Kohler 25 086 40-S

SCREW, SEMS DRILL #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

10

Kohler 24 126 15-S

BRACKET, MUFFLER

$22.99

$

Usually ships in 2-5 days

0

11

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 2 left!

0

12

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$4.99

$

In Stock, only 2 left!

0

13

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

14

Kohler 24 755 45-S

KIT, HEAT SHIELD

Note: (includes 15)

$58.99

$

Usually ships in 2-5 days

0

15

Kohler M-550010-S

SCREW, HVY FLG M5X.8X10

$3.99

$

In Stock, only 3 left!

0

16

Kohler 25 072 14-S

STUD, EXHAUST-USE 25 072 24-S
(Superseded to 25 072 24-S)

$5.49

$

In Stock, Qty 12

0

17

Kohler 24 041 49-S

GASKET, EXHAUST
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

18

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 20+

0

19

Kohler 24 164 10-S

MANIFOLD, EXHAUST

$180.99

$

Usually ships in 2-5 days

0
