CH18-62562 - Kohler Command PRO Twin Engine, Made for Chetech/Smithco, 18hp, 13.4kW Fuel System 8-24-465 Parts Diagram

Command PRO Twin Engine, Made for Chetech/Smithco, 18hp, 13.4kW

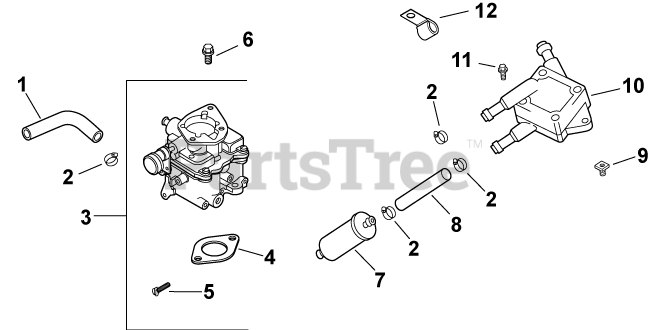

Fuel System 8-24-465 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 12

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, Qty 10

0

3

Kohler 24 853 33-S

KIT, CARBURETOR W/GASKETS-KSF

Note: (inclues 4,5)

$573.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, only 2 left!

0

5

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 4 left!

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

24755125-S

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$67.99

$

In Stock, only 1 left!

0

2551824-S

Kohler 25 518 24-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$281.99

$

In Stock, only 2 left!

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$139.99

$

Usually ships in 2-5 days

0

2475709-S

Kohler 24 757 09-S

KIT, REPAIR-ACC PUMP SEAL

Note: NOT ILLUSTRATED

$135.99

$

Usually ships in 2-5 days

0
