CH18-62571 - Kohler Command PRO Twin Engine, Made for Alkota, 18hp, 13.4kW Crankcase 2-24-189 Parts Diagram

Command PRO Twin Engine, Made for Alkota, 18hp, 13.4kW

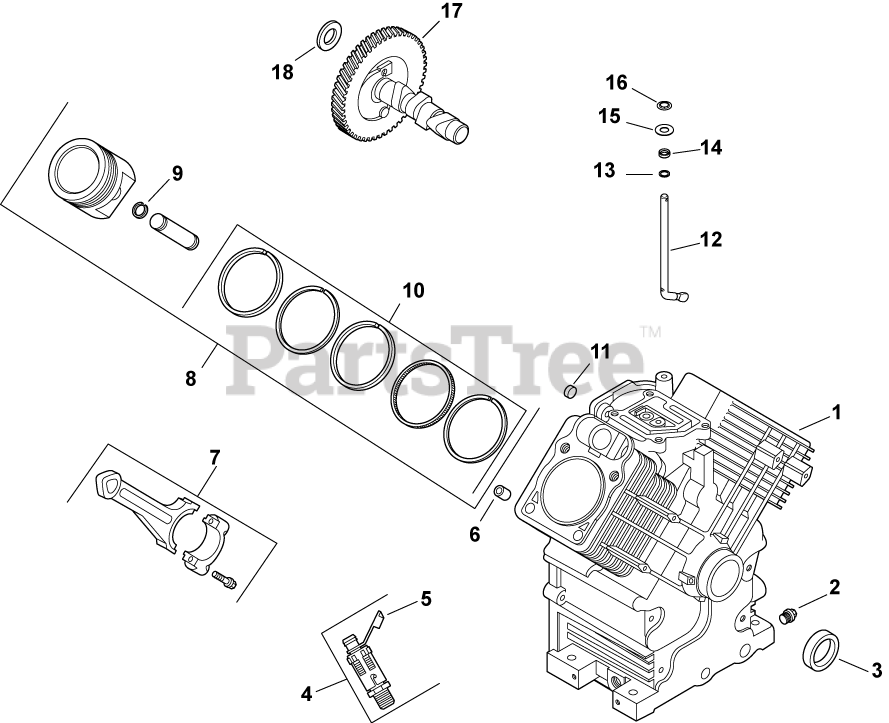

Crankcase 2-24-189 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 25 755 14-S

KIT, OIL DRAIN VALVE

Note: (includes 5)

$30.99

$

In Stock, only 4 left!

0

5

Kohler 25 173 14-S

CAP, OIL DRAIN VALVE

$2.49

$

In Stock, only 1 left!

0

6

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 7

0

7

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$83.99

$

In Stock, Qty 20+

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$83.99

$

In Stock, only 1 left!

0

8

Kohler 24 874 38-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 46-S
(Superseded to 24 874 46-S)

Note: (includes 9, 10)

$

$

Not available

2487439-S

Kohler 24 874 39-S

KIT, PISTON-USE 24 874 47-S
(Superseded to 24 874 47-S)

$

$

Not available

2487440-S

Kohler 24 874 40-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

$

$

Not available

2487441-S

Kohler 24 874 41-S

PISTON W/RINGS (STYLE A(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

$

$

Not available

9

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

10

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

2410823-S

Kohler 24 108 23-S

RING SET (.08)1.5MM TOP RING THICKNESS - DISCONTINUED (STYLE A)

$

$

Not available

2410824-S

Kohler 24 108 24-S

RING SET (.25)1.5MM TOP RING THICKNESS - DISCONTINUED, USE PISTON ASSEMBLY (STYLE A)

$

$

Not available

2410825-S

Kohler 24 108 25-S

RING SET (.50)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

11

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0

12

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$58.99

$

Usually ships in 2-5 days

0

13

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

14

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 10

0

15

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

16

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

17

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

Note: (includes 12 422 08-S & 25 357 14-S)

$

$

Not available

18

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
