CH18-62620 - Kohler Command PRO Twin Engine, Made for American Iowa, 18hp, 13.4kW Fuel System 8-24-461 Parts Diagram

Command PRO Twin Engine, Made for American Iowa, 18hp, 13.4kW

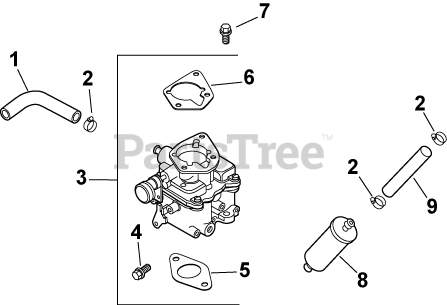

Fuel System 8-24-461 Parts Diagram

  • Title

1

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

Note: 3-1/2"

$17.99

$

In Stock, Qty 20+

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

3

Kohler 24 853 35-S

KIT, CARBURETOR W/GASKETS-KSF
(Superseded to 24 853 319-S)

Note: (Includes 4-6)

$291.99

$

Usually ships in 2-5 days

0

4

Kohler 24 086 05-S

SCREW, THROTTLE STOP

$4.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 6

0

6

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

8

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 353 12-S

LINE, FUEL 11"

Note: 11"

$3.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: See Part Info for service details.

$281.99

$

In Stock, only 3 left!

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: See Part Info for service details.

$166.99

$

Usually ships in 2-5 days

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: See Part Info for service details.

$139.99

$

Usually ships in 2-5 days

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: See Part Info for service details.

$116.99

$

In Stock, only 2 left!

0
