CH18-62627 - Kohler Command PRO Twin Engine, Made for Matweld, 18hp, 13.4kW Oil Pan/Lubrication 3-24-408 Parts Diagram

Command PRO Twin Engine, Made for Matweld, 18hp, 13.4kW

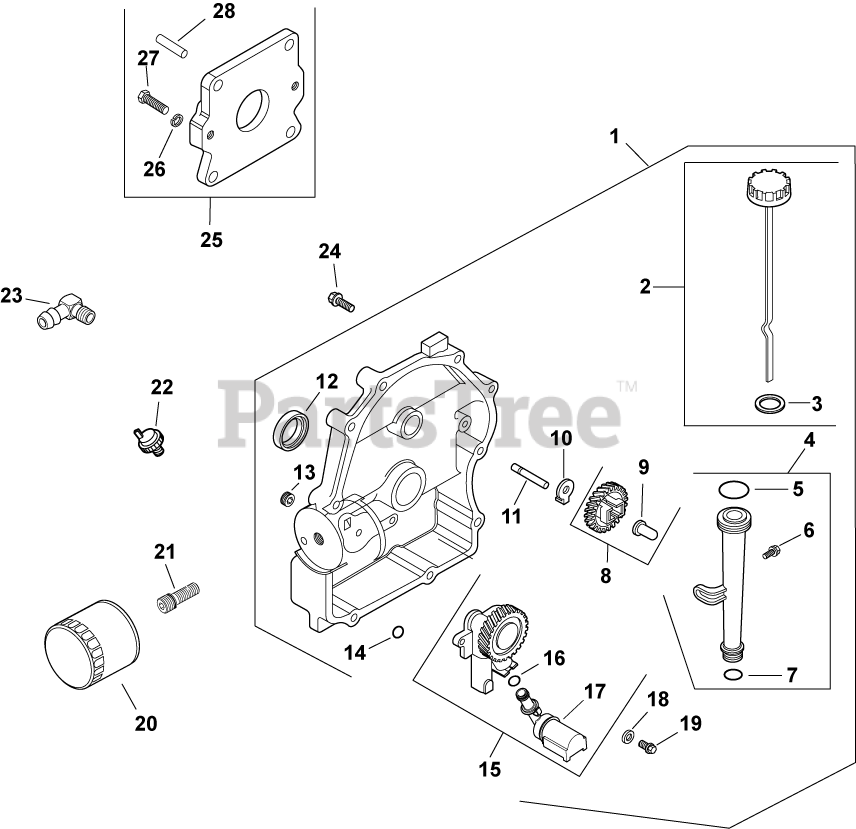

Oil Pan/Lubrication 3-24-408 Parts Diagram

  • Title

1

Kohler 24 009 91-S

USE 24 009 165-S CLOSURE PLATE
(Superseded to 24 009 239-S)

Note: (includes 2-19)

$451.99

$

Usually ships in 2-5 days

0

2

Kohler 24 038 15-S

KIT, DIPSTICK

Note: (includes 3)

$19.99

$

In Stock, only 3 left!

0

3

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 123 22-S

KIT, OIL FILL TUBE - PLASTIC

Note: (includes 5-7)

$31.99

$

In Stock, only 1 left!

0

5

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.49

$

In Stock, only 3 left!

0

6

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 7

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 9)

$68.99

$

In Stock, Qty 5

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 16

0

10

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 6

0

12

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

13

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

14

Kohler 24 153 08-S

O-RING

$6.49

$

In Stock, only 1 left!

0

15

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 16,17)

$

$

Not available

16

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 7

0

17

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 4 left!

0

18

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 8

0

19

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

20

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

21

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

22

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 6

0

23

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

25

Kohler 24 755 09-S

KIT, PUMP ADAPTER

Note: (includes 25-27)

$312.99

$

Usually ships in 2-5 days

0

26

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

$3.99

$

Usually ships in 2-5 days

0

27

Kohler X-8-21-S

SCREW,CAP HD 7/16-14x1 1/2"

$3.49

$

Usually ships in 2-5 days

0

28

Kohler 52 380 06-S

PIN, ALIGNMENT

$58.99

$

Usually ships in 2-5 days

0

X-22-16-S

Kohler X-22-16-S

WASHER,INT EXT TOOTH LOCK 5/16"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

275066-S

Kohler 275066-S

SPACER (.005")

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

275067-S

Kohler 275067-S

SPACER (.010")

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 2 left!

0
