CH18-62629 - Kohler Command PRO Twin Engine, Made for Yangshou Wanfang, 18hp, 13.4kW Lubrication Group 3-24-118 Parts Diagram

Command PRO Twin Engine, Made for Yangshou Wanfang, 18hp, 13.4kW

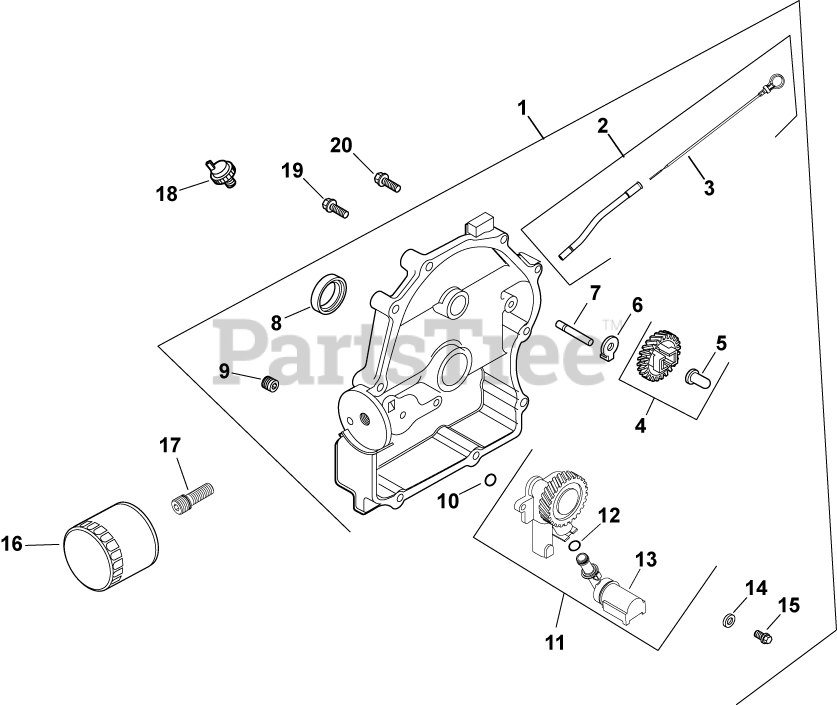

Lubrication Group 3-24-118 Parts Diagram

  • Title

1

Kohler 24 009 90-S

USE 24 009 166-S CLOSURE PLATE
(Superseded to 24 009 240-S)

$396.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$45.99

$

In Stock, only 2 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$76.99

$

In Stock, only 2 left!

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 9

0

6

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$5.99

$

In Stock, only 2 left!

0

8

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$13.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 7

0

11

Kohler 24 393 37-S

OIL PUMP ASSY KIT-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.99

$

In Stock, Qty 13

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

14

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 2 left!

0

15

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$3.49

$

In Stock, Qty 14

0

16

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

17

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

18

Kohler 52 099 06

SWITCH - USE 25 099 24
(Superseded to 25 099 24)

$15.99

$

In Stock, Qty 7

0

19

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

20

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0
