CH20-62604 - Kohler Command PRO Twin Engine, Made for Miller Electric, 20hp, 14.9kW Oil Pan/Lubrication 3-24-122 Parts Diagram

Command PRO Twin Engine, Made for Miller Electric, 20hp, 14.9kW

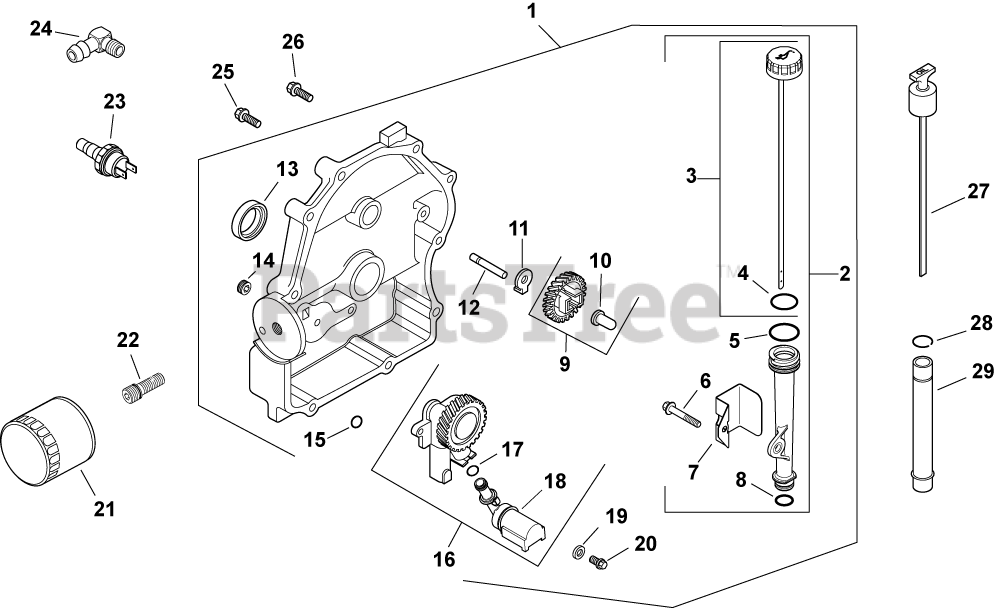

Oil Pan/Lubrication 3-24-122 Parts Diagram

  • Title

1

Kohler 24 009 98-S

KIT, CLOSURE PLATE ASSEMBLY - USE 24 009 219-S
(Superseded to 24 009 219-S)

Note: (includes 2-20)

$607.99

$

Usually ships in 2-5 days

0

2

Kohler 24 123 22-S

KIT, OIL FILL TUBE - PLASTIC

Note: (After S/N 3522700001)(includes 2-8)

$31.99

$

In Stock, only 1 left!

0

3

Kohler 24 038 15-S

KIT, DIPSTICK

Note: (After S/N 3522700001)(includes 4)

$19.99

$

In Stock, only 3 left!

0

4

Kohler 25 153 02-S

O-RING, DIPSTICK

Note: (After S/N 3522700001)

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

Note: (After S/N 3522700001)

$2.49

$

In Stock, only 3 left!

0

6

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0

7

Kohler 24 314 49-S

SHIELD, DIPSTICK HEAT
(Superseded to 24 314 61-S)

$24.99

$

Usually ships in 2-5 days

0

8

Kohler 12 153 07-S

O-RING

Note: (After S/N 3522700001)(

$2.49

$

In Stock, Qty 7

0

9

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 10)

$68.99

$

In Stock, Qty 5

0

10

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 16

0

11

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

12

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 6

0

13

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

14

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

15

Kohler 24 153 08-S

O-RING

$6.49

$

In Stock, only 1 left!

0

16

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 17,18)

$

$

Not available

17

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 7

0

18

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 4 left!

0

19

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 8

0

20

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

21

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

22

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

23

Kohler 25 099 23-S

SWITCH, OIL PRESSURE

$31.99

$

Usually ships in 2-5 days

0

24

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

Usually ships in 2-5 days

0

25

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

26

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 20+

0

27

Kohler 12 038 03-S

DIPSTICK

Note: (Before S/N 3522700011)

$28.99

$

In Stock, only 1 left!

0

28

Kohler 41 153 01-S

O-RING

Note: (Before S/N 3522700011)

$5.49

$

Usually ships in 2-5 days

0

29

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

Note: (Before S/N 3522700011)(includes 28)

$35.99

$

Usually ships in 2-5 days

0

X-22-10-S

Kohler X-22-10-S

WASHER, INT TOOTH LOCK 3/8"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0
