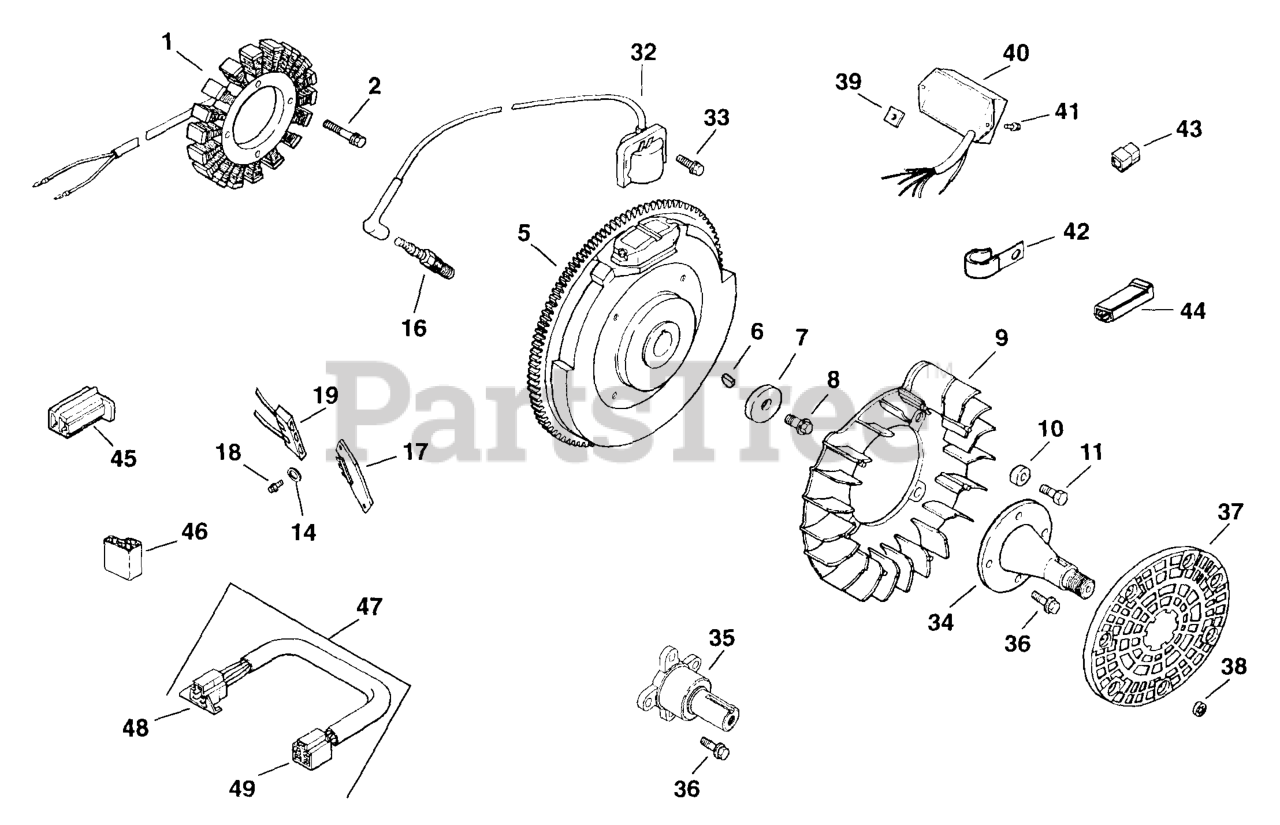

CH20-64509 - Kohler Command PRO Twin Engine, Made for MTD, 20hp, 14.9kW Ignition/Electrical (Cont.) 5-24-2 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Made for MTD, 20hp, 14.9kW

Ignition/Electrical (Cont.) 5-24-2 (TP-2439-C) Parts Diagram

  • Title

1

Kohler 24 085 01

KIT - USE 54 755 09
(Superseded to 54 755 09)

$149.99

$

In Stock, Qty 15

0

2

Kohler M-0548025

SCREW - USE M-548025
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

5

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 4 left!

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

Usually ships in 2-5 days

0

9

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

$45.99

$

In Stock, Qty 7

0

10

Kohler 12 112 01

BOLT - USE 25 086 47
(Superseded to 25 086 47)

$2.49

$

Usually ships in 2-5 days

0

11

Kohler M-0639016

SCREW - USE M-639016
(Superseded to M-639016)

$2.49

$

In Stock, only 3 left!

0

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

16

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

17

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$105.99

$

In Stock, Qty 6

0

18

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 11

0

37

Kohler 24 162 02-S

SCREEN, GRASS (#DSC)
(Superseded to 24 162 36-S)

$25.99

$

Usually ships in 2-5 days

0

38

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, Qty 13

0

Adapter, front drive

Note: Not supplied by Kohler Co., contact Original Equipment Manufacturer

$

$

Not available

2417608-S

Kohler 24 176 08-S

HARNESS, WIRE-USE 24 176 171-S
(Superseded to 24 176 171-S)

$117.99

$

In Stock, only 1 left!

0

2451804

Kohler 24 518 04

LEAD - USE 25 518 34
(Superseded to 25 518 34)

Note: 4" - 18 gauge - terminals: 2 insulated grip barrel eyelets

$6.99

$

Usually ships in 2-5 days

0
