CH20-64559 - Kohler Command PRO Twin Engine, Made for Metalcraft, 20hp, 14.9kW Air Intake/Filtration Parts Diagram

Command PRO Twin Engine, Made for Metalcraft, 20hp, 14.9kW

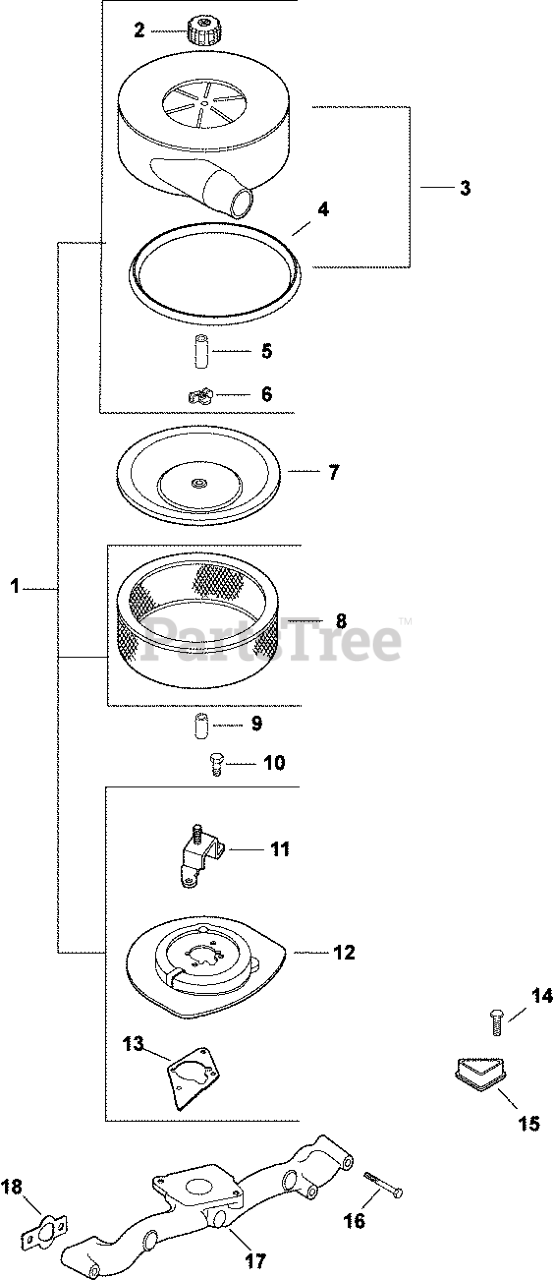

Air Intake/Filtration Parts Diagram

  • Title

1

Kohler 24 743 12-S

KIT, PLENUM AIR CLEANER

Note: (includes 2-6,8,11-13)

$274.99

$

Usually ships in 2-5 days

0

2

Kohler 12 341 01-S

KNOB

$15.99

$

Usually ships in 2-5 days

0

3

Kohler 24 096 53-S

COVER, AIR CLEANER

Note: (includes 4)

$209.99

$

Usually ships in 2-5 days

0

4

Kohler 24 743 18-S

KIT, AIR CLEANER COVER SEAL

Note: (includes 24 597 02-S)

$48.99

$

Usually ships in 2-5 days

0

5

Kohler 24 032 08-S

SEAL

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 20+

0

7

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

8

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 9

0

9

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 2 left!

0

10

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.99

$

In Stock, only 3 left!

0

11

Kohler 24 126 97-S

BRACKET ASSY,AIR CLEANER-USE 24 126 211-
(Superseded to 24 126 211-S)

$22.99

$

Usually ships in 2-5 days

0

12

Kohler 24 094 05-S

BASE, AIR CLEANER-USE 24 094 91-S
(Superseded to 24 094 91-S)

$71.99

$

Usually ships in 2-5 days

0

13

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 14

0

14

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$5.99

$

In Stock, Qty 9

0

16

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$291.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$3.49

$

In Stock, only 4 left!

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2408305-S

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

Note: NOT ILLUSTRATED

$4.99

$

In Stock, Qty 6

0
