CH20-64563 - Kohler Command PRO Twin Engine, Made for Allmand Bros, 20hp, 14.9kW Ignition/Electrical 5-24-209 Parts Diagram

Command PRO Twin Engine, Made for Allmand Bros, 20hp, 14.9kW

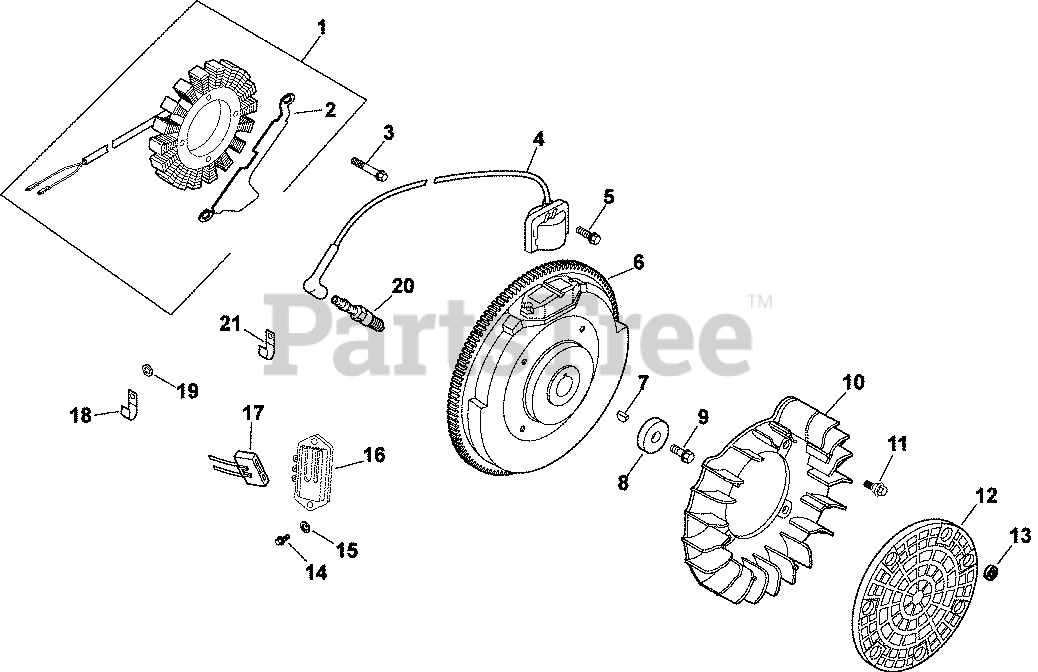

Ignition/Electrical 5-24-209 Parts Diagram

  • Title

1

Kohler 24 085 03-S

STATOR ASSEMBLY 15/20A (KM)-USE 237878-S
(Superseded to 54 755 09-S)

Note: (includes 2)

$149.99

$

In Stock, Qty 16

0

2

Kohler 24 126 71-S

BRACKET, STATOR WIRE-USE 24 126 139-S
(Superseded to 24 126 139-S)

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$3.49

$

In Stock, Qty 8

0

4

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$93.99

$

Usually ships in 2-5 days

0

5

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

6

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$310.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, only 4 left!

0

10

Kohler 24 157 01-S

FAN (KM)-USE 24 157 15-S
(Superseded to 24 755 253-S)

$46.99

$

In Stock, only 1 left!

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

12

Kohler 24 162 03-S

SCREEN, GRASS

$

$

Not available

13

Kohler 24 018 03-S

RETAINER

$2.49

$

In Stock, Qty 17

0

14

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

15

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

16

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$105.99

$

Usually ships in 2-5 days

0

17

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, Qty 14

0

18

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

19

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

21

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

2417650-S

Kohler 24 176 50-S

USE 24 176 112-S HARNESS
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$56.99

$

Usually ships in 2-5 days

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2545401-S

Kohler 25 454 01-S

USE 25 454 05-S WIRE TIE
(Superseded to 25 454 05-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0

2551807-S

Kohler 25 518 07-S

LEAD - DISCONTINUED

Note: NOT ILLUSTRATED

$

$

Not available

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED

$7.99

$

In Stock, only 2 left!

0

1245401-S

Kohler 12 454 01-S

USE 12 454 03-S TIE
(Superseded to 12 454 03-S)

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2451807

Kohler 24 518 07

LEAD - USE 25 518 34
(Superseded to 25 518 34)

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2451809-S

Kohler 24 518 09-S

LEAD, OIL SENTRY

Note: NOT ILLUSTRAETD

$17.99

$

In Stock, only 1 left!

0

2515506-S

Kohler 25 155 06-S

CONNECTOR

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

X-468-1-S

Kohler X-468-1-S

TIE, WIRE USE 25 454 03-S
(Superseded to 25 454 03-S)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0
