CH20-64573 - Kohler Command PRO Twin Engine, Made for Seidensha Ltd, 20hp, 14.9kW Fuel System 8-24-137 Parts Diagram

Command PRO Twin Engine, Made for Seidensha Ltd, 20hp, 14.9kW

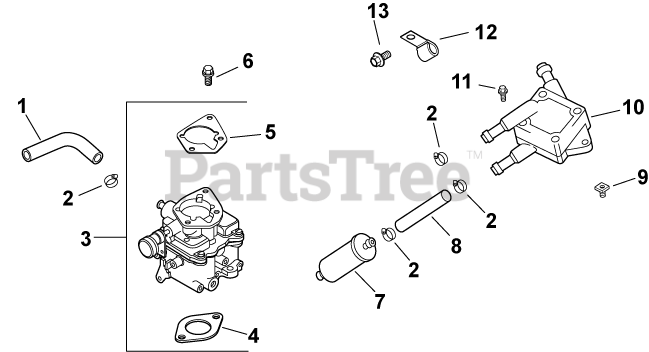

Fuel System 8-24-137 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 6

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

3

Kohler 24 853 31-S

KIT, CARBURETOR W/GASKETS

Note: (includes 4,5)

$403.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 15

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 11

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

12

Kohler 47 154 01-S

CLIP, CABLE

$4.99

$

In Stock, Qty 7

0

13

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0
