CH20-64626 - Kohler Command PRO Twin Engine, Made for HCC Digit, 20hp, 14.9kW Ignition/Electrical 5-24-426 Parts Diagram

Command PRO Twin Engine, Made for HCC Digit, 20hp, 14.9kW

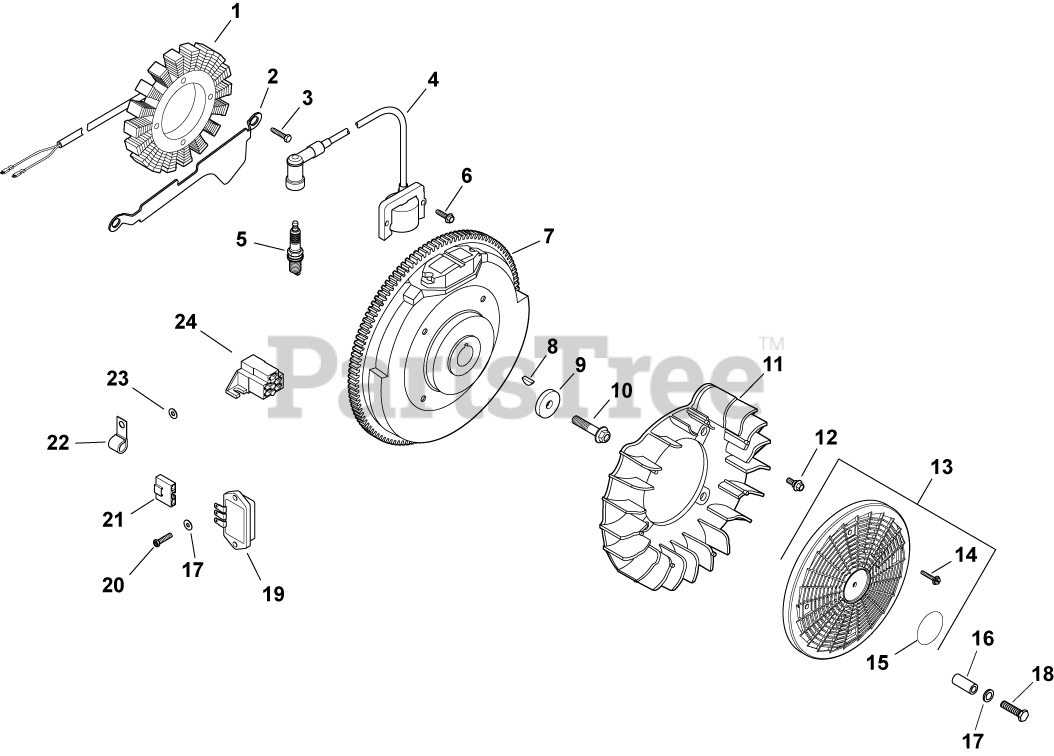

Ignition/Electrical 5-24-426 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 10

0

2

Kohler 24 126 71-S

BRACKET, STATOR WIRE-USE 24 126 139-S
(Superseded to 24 126 139-S)

$15.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$

$

Not available

5

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

6

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

7

Kohler 24 025 01-S

USE 24 025 04-S FLYWHEEL
(Superseded to 24 025 55-S)

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 2 left!

0

9

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

Usually ships in 2-5 days

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

11

Kohler 24 157 07-S

FAN (WITH HOLE)-USE 24 157 16-S
(Superseded to 24 755 253-S)

$45.99

$

In Stock, only 4 left!

0

12

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, only 4 left!

0

13

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 14,15)

$41.99

$

Usually ships in 2-5 days

0

14

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

16

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

17

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

18

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

Usually ships in 2-5 days

0

19

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$105.99

$

In Stock, only 2 left!

0

20

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

In Stock, only 2 left!

0

21

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 10

0

22

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

23

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 4 left!

0

24

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

2417640-S

Kohler 24 176 40-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0

2451812-S

Kohler 24 518 12-S

LEAD

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 1 left!

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 5

0

2545401-S

Kohler 25 454 01-S

USE 25 454 05-S WIRE TIE
(Superseded to 25 454 05-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 2 left!

0
