CH20-64644 - Kohler Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW Oil Pan/Lubrication 3-24-202 Parts Diagram

Command PRO Twin Engine, Made for Toro, 20hp, 14.9kW

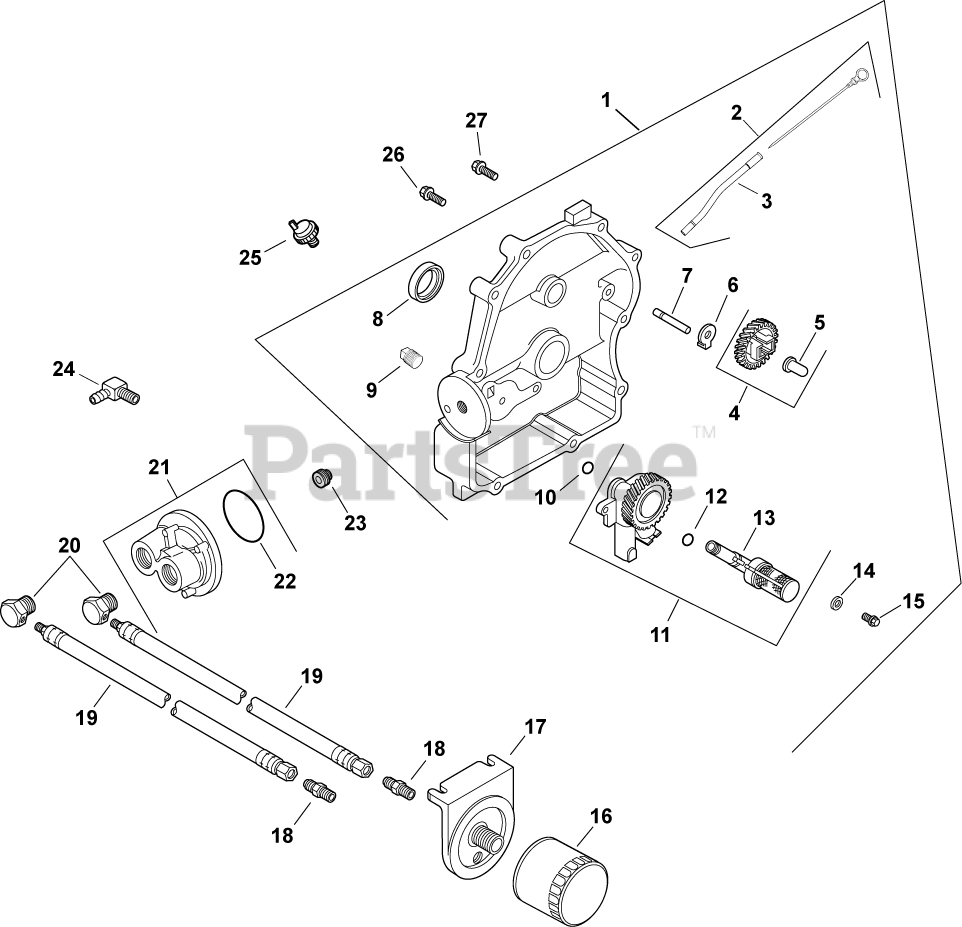

Oil Pan/Lubrication 3-24-202 Parts Diagram

  • Title

1

Kohler 24 009 82-S

USE 24 009 150-S CLOSURE PLATE
(Superseded to 24 009 237-S)

Note: (Includes 2-15)

$609.99

$

In Stock, only 1 left!

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (Includes 3)

$35.99

$

In Stock, only 1 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 5

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (Includes 5)

$68.99

$

In Stock, only 1 left!

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 13

0

6

Kohler 24 448 01-S

TAB, LOCKING

$2.49

$

In Stock, only 3 left!

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 6

0

8

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

10

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

11

Kohler 24 393 37-S

OIL PUMP ASSY KIT-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (Includes 12,13)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 6

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 4 left!

0

14

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 8

0

15

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

16

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

17

Kohler 25 029 01-S

ADAPTER

$122.99

$

Usually ships in 2-5 days

0

18

Kohler 52 136 02-S

NIPPLE

$10.99

$

Usually ships in 2-5 days

0

19

Kohler 52 326 11-S

HOSE

$82.99

$

In Stock, only 3 left!

0

20

Kohler 24 294 04-S

FITTING, REDUCER - DISCONTINUED

$

$

Not available

21

Kohler 24 029 02-S

KIT,OIL FILTER ADAPTER

Note: (Includes 22)

$60.99

$

Usually ships in 2-5 days

0

22

Kohler 24 153 25-S

O-RING

$6.99

$

Usually ships in 2-5 days

0

23

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

24

Kohler 25 155 02-S

CONNECTOR, 90 DEG. HOSE

$14.99

$

Usually ships in 2-5 days

0

25

Kohler 24 099 03-S

SENSOR, OIL PSI

$34.99

$

In Stock, only 2 left!

0

26

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 19

0

27

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 19

0
