CH20-64706 - Kohler Command PRO Twin Engine, Made for Terramite, 20hp, 14.9kW Fuel System 8-24-589 Parts Diagram

Command PRO Twin Engine, Made for Terramite, 20hp, 14.9kW

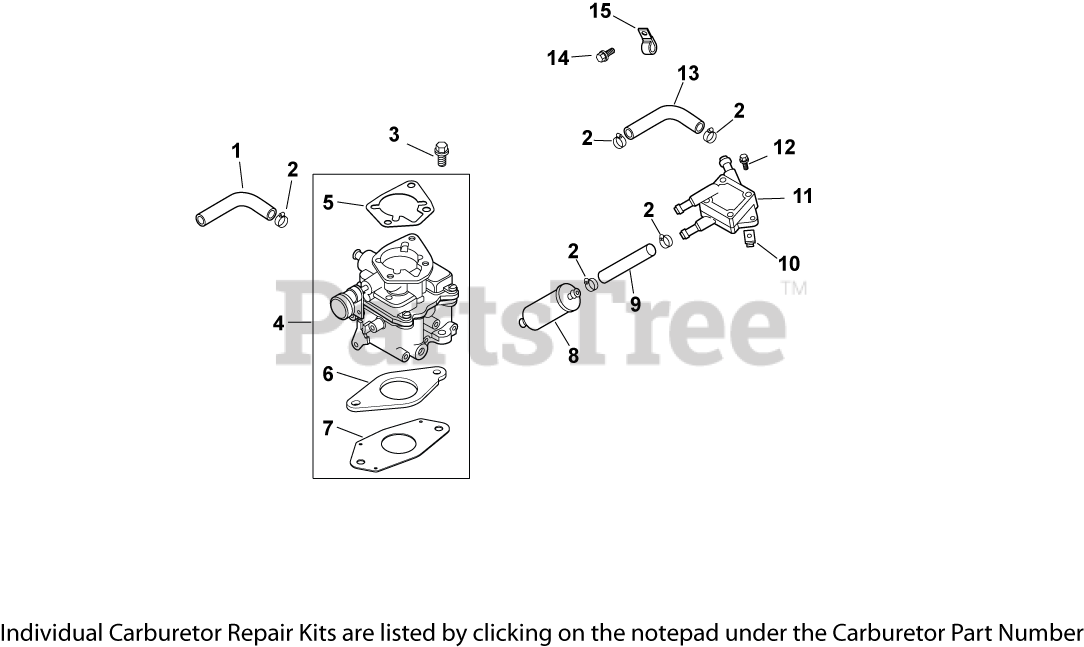

Fuel System 8-24-589 Parts Diagram

  • Title

1

Kohler 25 111 36-S

HOSE, FUEL LOW-PERMEATION

$7.99

$

Usually ships in 2-5 days

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, Qty 5

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 853 32-S

KIT, CARBURETOR W/GASKETS KSF
(Superseded to 24 853 309-S)

Note: (includes 5-7)

$289.99

$

In Stock, only 4 left!

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, only 1 left!

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 7

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 1 left!

0

10

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 4 left!

0

14

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, Qty 7

0

15

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0
