CH20-64728 - Kohler Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW Crankcase 2-24-202 Parts Diagram

Command PRO Twin Engine, Made for Cub Cadet, 20hp, 14.9kW

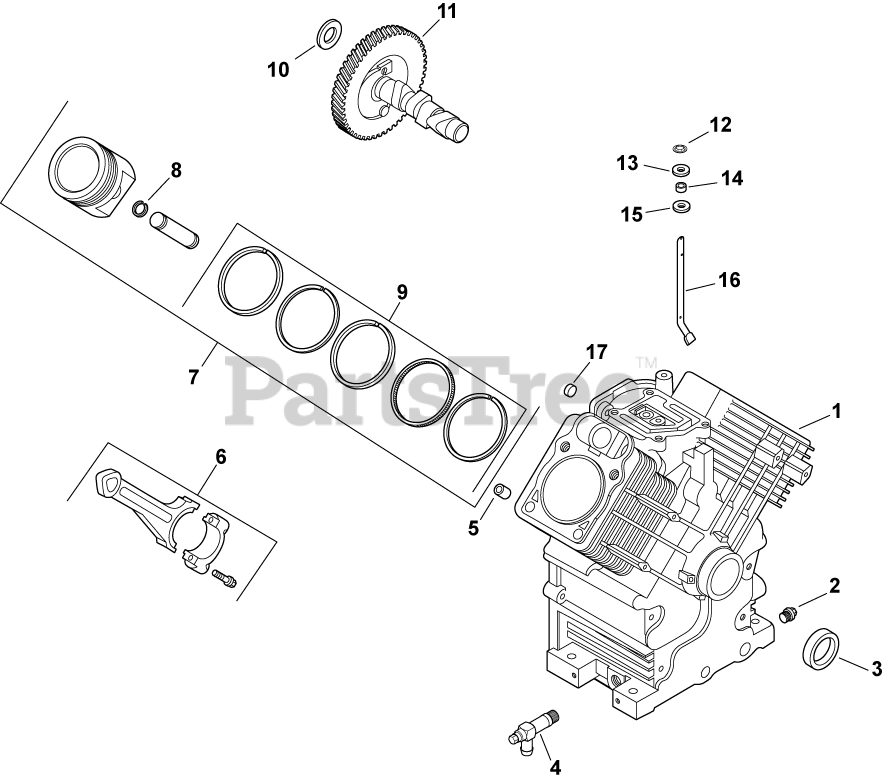

Crankcase 2-24-202 Parts Diagram

  • Title

1

CRANKCASE (USE MINIBLOCK)

$

$

Not available

2

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 12

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 25 462 12-S

VALVE, OIL DRAIN MEDIUM

$50.99

$

In Stock, only 1 left!

0

5

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 5

0

6

Kohler 24 067 16-S

USE 24 067 24-S CONNECTING ROD
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 20+

0

2406714-S

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$75.99

$

In Stock, only 1 left!

0

7

Kohler 24 874 17-S

PISTON W/RINGS (STYLE A)(STD)-USE 24 874 46-S
(Superseded to 24 874 46-S)

Note: (includes 8,9)

$199.99

$

Usually ships in 2-5 days

0

2487414-S

Kohler 24 874 14-S

KIT, PISTON W/RING SET & RET-USE 24 874 39-S
(Superseded to 24 874 47-S)

$

$

Not available

2487418-S

Kohler 24 874 18-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

$

$

Not available

2487419-S

Kohler 24 874 19-S

PISTON W/RINGS (STYLE A)(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

$189.99

$

Usually ships in 2-5 days

0

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

9

Kohler 24 108 11-S

RING SET-USE 24 108 22-S
(Superseded to 24 108 22-S)

$

$

Not available

2410812-S

Kohler 24 108 12-S

RING SET-USE 24 108 24-S
(Superseded to 24 108 24-S)

$

$

Not available

2410813-S

Kohler 24 108 13-S

RING SET (.50) - (#2410825S)
(Superseded to 24 108 25-S)

$

$

Not available

10

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

12

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

13

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 7

0

14

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, only 2 left!

0

15

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$52.99

$

Usually ships in 2-5 days

0

17

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 9

0
