CH20-64734 - Kohler Command PRO Twin Engine, Basic Version, 20hp, 14.9kW Crankcase 2-24-91 Parts Diagram

Command PRO Twin Engine, Basic Version, 20hp, 14.9kW

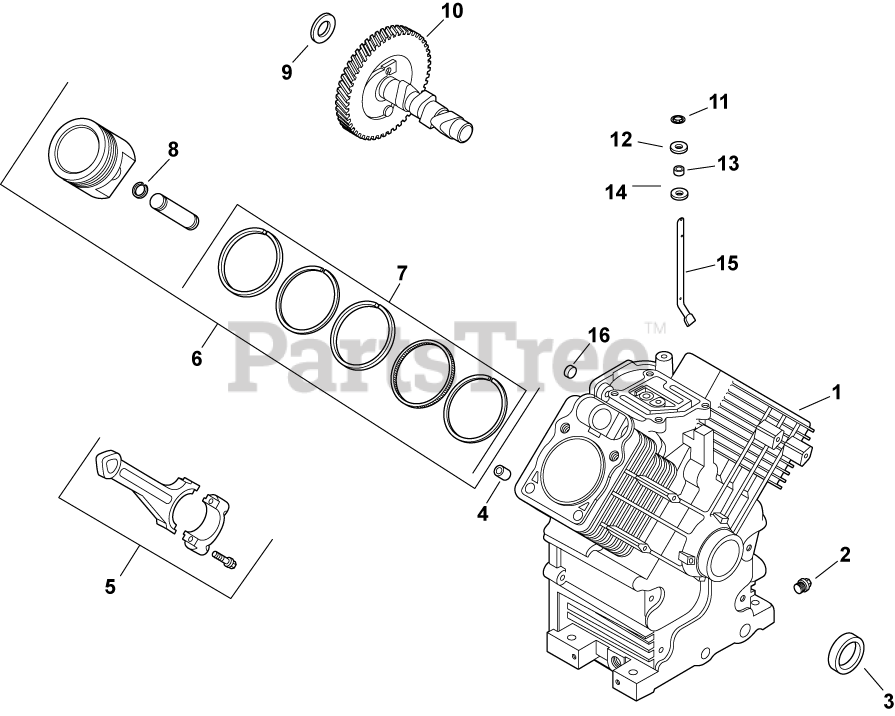

Crankcase 2-24-91 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE: SHORT BLOCK)

$

$

Not available

2

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$8.99

$

In Stock, Qty 20+

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 16

0

5

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$71.99

$

In Stock, Qty 10

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$71.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 38-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 46-S
(Superseded to 24 874 46-S)

$

$

Not available

2487439-S

Kohler 24 874 39-S

KIT, PISTON-USE 24 874 47-S
(Superseded to 24 874 47-S)

$

$

Not available

2487440-S

Kohler 24 874 40-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

$

$

Not available

2487441-S

Kohler 24 874 41-S

PISTON W/RINGS (STYLE A(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

$

$

Not available

7

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

2410823-S

Kohler 24 108 23-S

RING SET (.08)1.5MM TOP RING THICKNESS - DISCONTINUED (STYLE A)

$

$

Not available

2410824-S

Kohler 24 108 24-S

RING SET (.25)1.5MM TOP RING THICKNESS - DISCONTINUED, USE PISTON ASSEMBLY (STYLE A)

$

$

Not available

2410825-S

Kohler 24 108 25-S

RING SET (.50)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 9

0

9

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 1 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

Usually ships in 2-5 days

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 10

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 010 06-S

KIT, CAMSHAFT

Note: (includes 25 357 14-S)

$456.99

$

In Stock, only 1 left!

0

11

Kohler 24 018 09-S

RETAINER, RING

$2.99

$

In Stock, only 1 left!

0

12

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.99

$

In Stock, only 2 left!

0

14

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$49.99

$

In Stock, only 1 left!

0

16

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 4 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 2 left!

0
