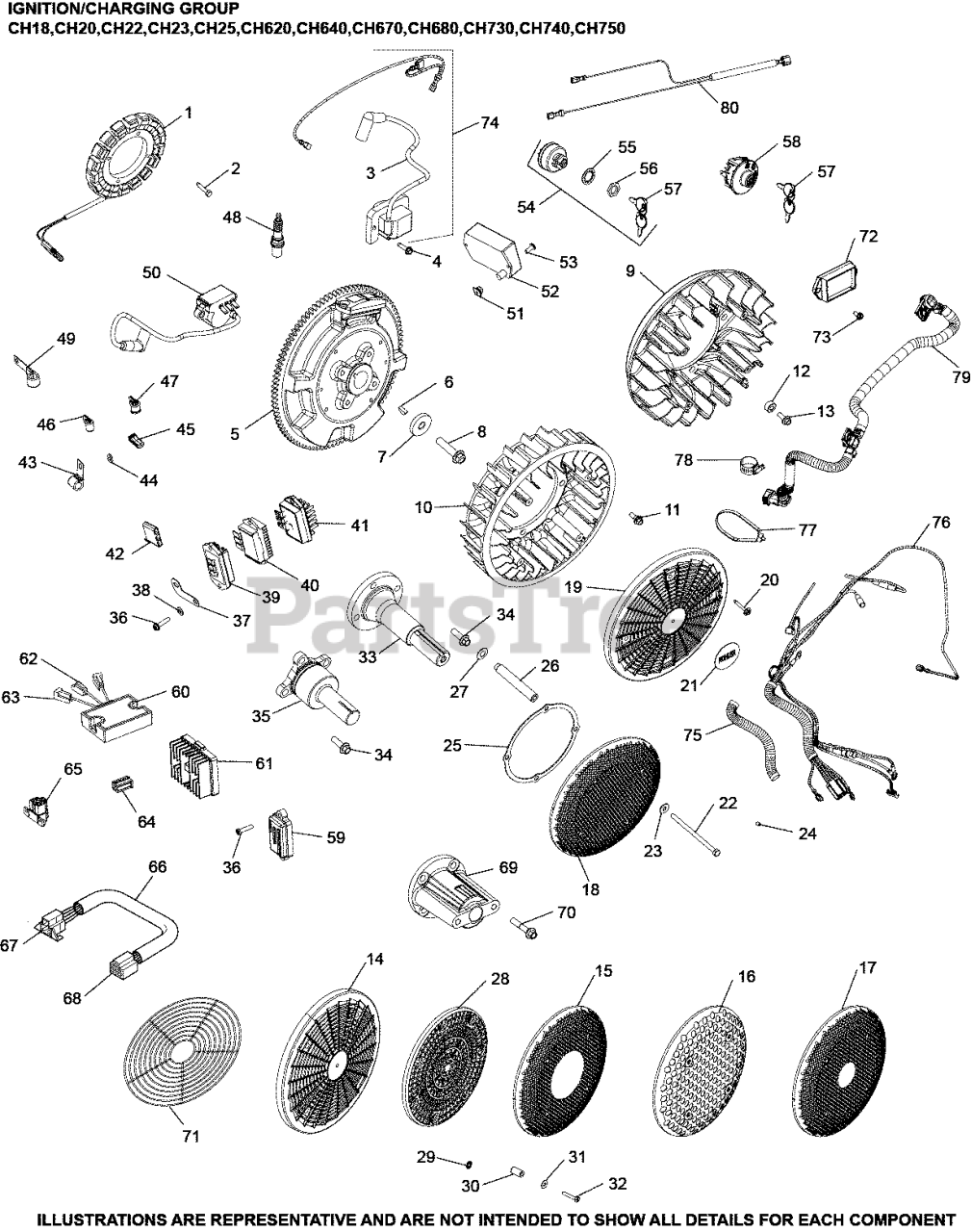

CH22-66534 - Kohler Command PRO Twin Engine, Made for Ariens, 22hp, 16.4kW > Parts Diagrams (16) > Ignition/Electrical 5-24-208

  • Title
54 755 09-S

1

STATOR KIT - USE 237878-S

Part# 54 755 09-S (Superseded to 237878-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $122.20

M-548025-S

2

SCREW, M5X0.8X25 - (#25086402S)

Part# M-548025-S (Superseded to 25 086 402-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 584 15-S

3

MODULE USE 24 584 36-S

Part# 24 584 15-S (Superseded to 24 584 36-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $83.58

24 025 05-S

5

FLYWHEEL, PAINTED-USE 24 025 56-S

Part# 24 025 05-S (Superseded to 24 025 56-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $305.27

X-42-15-S

6

KEY, 3/16" X 5/8"

Part# X-42-15-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.29

12 468 03-S

7

WASHER, FLAT 13/32"

Part# 12 468 03-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $5.11

12 086 14-S

8

SCREW, FLG M10X1.5X45 - (#25086361S)

Part# 12 086 14-S (Superseded to 25 086 361-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.85

24 157 03-S

9

USE 24 157 07-S FAN

Part# 24 157 03-S (Superseded to 24 755 253-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $37.06

25 086 47-S

11

BOLT, SHOULDER

Part# 25 086 47-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

X-25-92-S

31

WASHER, FLAT 3/16"

Part# X-25-92-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 144 26-S

33

SHAFT, FRONT DRIVE - DISCONTINUED

Part# 24 144 26-S

OEM Warranty Repair Part for Kohler

Not available

M-839025-S

34

SCREW, FLG M8X1.25X25

Part# M-839025-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 086 18-S

36

SCREW, PHL HD #11-16X7/8"

Part# 24 086 18-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.00

25 403 03-S

39

USE 41 403 09-S REG/RECT

Part# 25 403 03-S (Superseded to 41 403 10-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $85.17

236602-S

42

CONNECTOR, BODY (KM)-USE 25 155 41-S

Part# 236602-S (Superseded to 25 155 41-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $6.29

235173-S

43

CLIP, CABLE

Part# 235173-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $9.19

X-25-63-S

44

WASHER, FLAT 1/4" (O.D. 1/2")

Part# X-25-63-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

12 132 02-S

48

PLUG, SPARK (STD)

Part# 12 132 02-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $3.40

24 100 02-S

51

NUT, PLASTIC

Part# 24 100 02-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $1.92

24 584 10-S

52

MODULE, SPEED ADVANCE-DISCONTINUED SEE PB265

Part# 24 584 10-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $151.28

24 086 41-S

53

SCREW, PHL HD #11-16X1/2"

Part# 24 086 41-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 126 71-S

2412671-S

BRACKET, STATOR WIRE-USE 24 126 139-S

Part# 24 126 71-S (Superseded to 24 126 139-S)

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $12.57

24 518 12-S

2451812-S

LEAD

Part# 24 518 12-S

Note: NOT ILLUSTRATED (6" - 12 gauge - insulated grip barrel eyelet terminals)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $3.72

X-22-11-S

X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Part# X-22-11-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

48 154 02-S

4815402-S

CLIP

Part# 48 154 02-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $13.49

54 755 02-S

5475502-S

KIT, WIRING HARNESS

Part# 54 755 02-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $123.08

25 518 34-S

2551834-S

LEAD, 20/25 AMP B+

Part# 25 518 34-S

Note: NOT ILLUSTRATED (36-1/2" - 12 gauge - uninsulated push on tab and insulated grip barrel eyelet terminals)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.38

24 176 41-S

2417641-S

LEAD, DUPLEX

Part# 24 176 41-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $5.11

15 452 01-S

1545201-S

TERMINAL

Part# 15 452 01-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.56

24 518 09-S

2451809-S

LEAD, OIL SENTRY

Part# 24 518 09-S

Note: NOT ILLUSTRATED (19-1/2" - 18 gauge - fully insulated push on tab terminals)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $11.24

24 176 50-S

2417650-S

USE 24 176 112-S HARNESS

Part# 24 176 50-S (Superseded to 24 176 112-S)

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Not available

25 454 03-S

2545403-S

TIE, WIRE

Part# 25 454 03-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $1.92

M-561025-S

M-561025-S

SCREW, SKT THD FRM M5X0.8X25

Part# M-561025-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

12 454 03-S

1245403-S

TIE, CABLE

Part# 12 454 03-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.68
