CH22-66534 - Kohler Command PRO Twin Engine, Made for Ariens, 22hp, 16.4kW Oil Pan/Lubrication 3-24-109 Parts Diagram

Command PRO Twin Engine, Made for Ariens, 22hp, 16.4kW

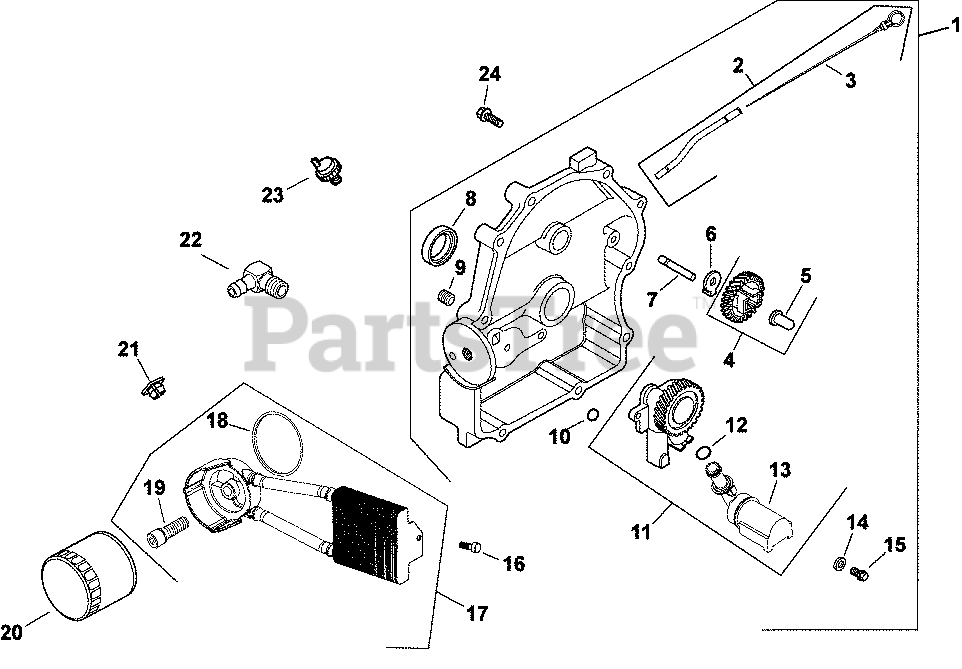

Oil Pan/Lubrication 3-24-109 Parts Diagram

  • Title
1

Kohler Part# 24 009 150-S

CLOSURE PLATE ASSEMBLY USE 24 009 237-S
(Superseded to 24 009 237-S)

Note: (includes 2-14)

Usually ships in 4 to 10 days

$

$499.67

0

2

Kohler Part# 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (includes 3)

Usually ships in 1 day

$

$28.97

0

Usually ships in 1 day

$

$10.04

0

4

Kohler Part# 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 5)

Usually ships in 4 to 10 days

$

$56.26

0

5

Kohler Part# 12 380 01-S

PIN, GOVERNOR REGULATING
Usually ships in 1 day

$

$2.63

0

6
Usually ships in 1 day

$

$1.92

0

7

Kohler Part# 12 144 02-S

SHAFT, GOVERNOR GEAR
Usually ships in 4 to 10 days

$

$3.56

0

Usually ships in 1 day

$

$8.88

0

9

Kohler Part# 25 139 60-S

PLUG, CTSK PIPE 1/8"
Usually ships in 1 day

$

$2.52

0

Usually ships in 1 day

$

$5.14

0

11

Kohler Part# 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 12, 13)

Usually ships same day

Not available

$

$

12

Kohler Part# 24 153 01-S

O-RING, OIL PICK-UP
Usually ships in 1 day

$

$1.92

0

13
Usually ships in 1 day

$

$28.26

0

14

Kohler Part# M-631005-S

WASHER, FLAT 6 MM
Usually ships in 1 day

$

$1.92

0

15

Kohler Part# M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)
Usually ships in 1 day

$

$1.92

0

16

Kohler Part# 24 086 12-S

SCREW, TAP M6X1.7X18
Usually ships in 1 day

$

$1.92

0

17

Kohler Part# 54 755 21-S

KIT, OIL COOLER

Note: (includes 18, 19)

Usually ships in 1 day

$

$210.50

0

18

Kohler Part# 24 153 21-S

O-RING, OIL COOLER
Usually ships in 1 day

$

$4.85

0

19

Kohler Part# 24 136 05-S

NIPPLE, OIL FILTER
Usually ships in 1 day

$

$10.27

0

20
Usually ships in 1 day

$

$11.71

0

21

Kohler Part# 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)
Usually ships in 1 day

$

$1.92

0

22

Kohler Part# 25 155 02-S

CONNECTOR, 90 DEG. HOSE
Usually ships in 1 day

$

$11.91

0

23

Kohler Part# 25 099 27-S

SENSOR, OIL PSI
Usually ships in 1 day

$

$13.04

0

24

Kohler Part# 24 086 17-S

SCREW, FLG M8X1.25X45
Usually ships in 1 day

$

$1.92

0
