CH22-66535 - Kohler Command PRO Twin Engine, Made for OY Intermotor, 22hp, 16.4kW Fuel System 8-24-115 Parts Diagram

Command PRO Twin Engine, Made for OY Intermotor, 22hp, 16.4kW

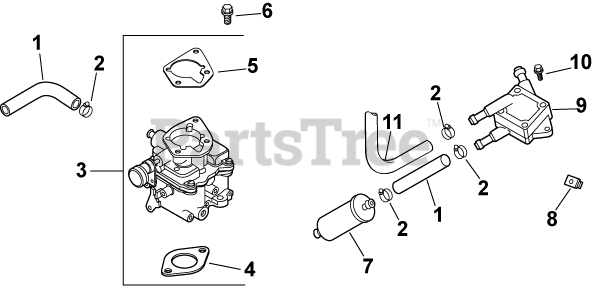

Fuel System 8-24-115 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 32-S

KIT, CARBURETOR W/GASKETS KSF
(Superseded to 24 853 309-S)

Note: (Includes 4,5) See Part Info for service details.

$307.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 12

0

5

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, only 4 left!

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

7

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$17.99

$

In Stock, Qty 20+

0

8

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

9

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 2 left!

0

10

Kohler 52 112 13-S

SPACER

$

$

Not available

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

12

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$9.99

$

In Stock, only 3 left!

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$261.99

$

In Stock, only 2 left!

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$154.99

$

Usually ships in 2-5 days

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$

$

Not available

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$109.99

$

Usually ships in 2-5 days

0

24755125-S

Kohler 24 755 125-S

KIT, HIGH ALTITUDE (4,000 - 8,000 FT)

Note: NOT ILLUSTRATED

$75.99

$

Usually ships in 2-5 days

0
