CH22-66556 - Kohler Command PRO Twin Engine, Made for Pug Power, 22hp, 16.4kW

Command PRO Twin Engine, Made for Pug Power, 22hp, 16.4kW

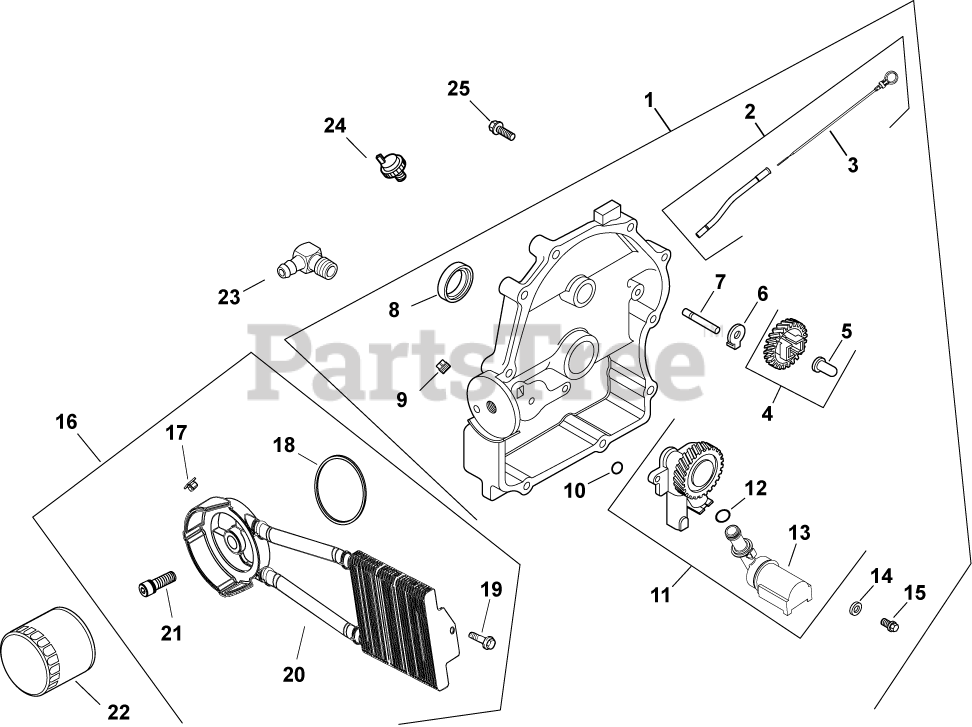

CH22-66556 - Kohler Command PRO Twin Engine, Made for Pug Power, 22hp, 16.4kW > Parts Diagrams (14) > Oil Pan/Lubrication 3-24-332

  • Title
24 009 82-S

1

USE 24 009 150-S CLOSURE PLATE

Part# 24 009 82-S (Superseded to 24 009 237-S)

Note: (includes 2-15)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $499.67

24 755 121-S

2

KIT, DIPSTICK/DIPSTICK TUBES

Part# 24 755 121-S

Note: (includes 3)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $28.97

24 038 10-S

3

DIPSTICK

Part# 24 038 10-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $10.04

24 043 12-S

4

KIT, GOVERNOR GEAR W/PIN

Part# 24 043 12-S

Note: (includes 5)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $56.26

12 380 01-S

5

PIN, GOVERNOR REGULATING

Part# 12 380 01-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.63

24 448 01-S

6

TAB, LOCKING

Part# 24 448 01-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

12 144 02-S

7

SHAFT, GOVERNOR GEAR

Part# 12 144 02-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $3.56

52 032 08-S

8

SEAL, OIL (KM)-USE 25 032 06-S

Part# 52 032 08-S (Superseded to 25 032 06-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $8.88

25 139 60-S

9

PLUG, CTSK PIPE 1/8"

Part# 25 139 60-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.52

24 153 08-S

10

O-RING

Part# 24 153 08-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $5.14

24 393 37-S

11

OIL PUMP ASSY KIT-USE 24 393 53-S

Part# 24 393 37-S (Superseded to 24 393 53-S)

Note: (includes 12, 13)

OEM Warranty Repair Part for Kohler

Not available

24 153 01-S

12

O-RING, OIL PICK-UP

Part# 24 153 01-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 381 04-S

13

PICK-UP, OIL

Part# 24 381 04-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $28.26

M-631005-S

14

WASHER, FLAT 6 MM

Part# M-631005-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

M-645025-S

15

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)

Part# M-645025-S (Superseded to 25 086 395-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

54 755 14-S

16

OIL COOLER KIT-USE 24 755 120-S

Part# 54 755 14-S (Superseded to 24 755 120-S)

Note: (includes 17-21 & 41 037 10-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $252.60

24 100 01-S

17

NUT, PLASTIC (KM)-USE 25 100 37-S

Part# 24 100 01-S (Superseded to 25 100 37-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 153 21-S

18

O-RING, OIL COOLER

Part# 24 153 21-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $4.85

24 086 12-S

19

SCREW, TAP M6X1.7X18

Part# 24 086 12-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 594 15-S

20

COOLER, OIL - PHENOLIC-USE 24 594 36-S

Part# 24 594 15-S (Superseded to 24 594 36-S)

Note: (includes 18, 21)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $180.62

24 136 05-S

21

NIPPLE, OIL FILTER

Part# 24 136 05-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $10.27

52 050 02-S

22

OIL FILTER

Part# 52 050 02-S (Superseded to 52-050-02-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $12.26

25 155 02-S

23

CONNECTOR, 90 DEG. HOSE

Part# 25 155 02-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $11.91

25 099 24-S

24

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-

Part# 25 099 24-S (Superseded to 25 099 27-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $13.04

24 086 17-S

25

SCREW, FLG M8X1.25X45

Part# 24 086 17-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

41 037 10-S

4103710-S

NAMEPLATE, SERVICE

Part# 41 037 10-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $6.83
