CH22-76515 - Kohler Command PRO Twin Engine, Made for Berendnsen, 22hp, 16.4kW Lubrication Group 3-24-125 Parts Diagram

Command PRO Twin Engine, Made for Berendnsen, 22hp, 16.4kW

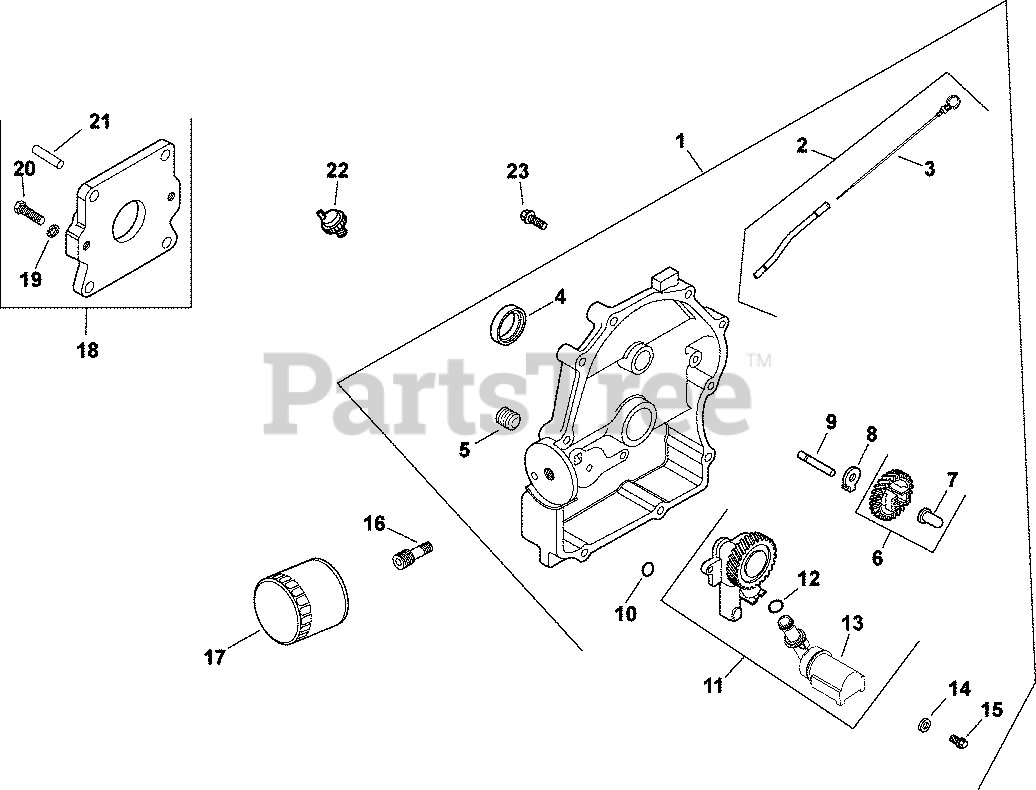

Lubrication Group 3-24-125 Parts Diagram

  • Title

1

Kohler 24 009 167-S

PLATE, CLOSURE & BEARING USE 24 009 227-S
(Superseded to 24 009 238-S)

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$43.99

$

In Stock, only 1 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 6

0

4

Kohler 25 032 06-S

SEAL, OIL

$12.99

$

In Stock, Qty 20+

0

5

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, only 2 left!

0

7

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, only 4 left!

0

8

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, only 1 left!

0

10

Kohler 24 153 08-S

O-RING

$7.99

$

In Stock, Qty 5

0

11

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 13

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

14

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.99

$

In Stock, Qty 14

0

15

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, only 2 left!

0

16

Kohler 24 136 01-S

NIPPLE, OIL FILTER USE 24 136 09-S
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

17

Kohler 12 050 01-S

OIL FILTER

$18.99

$

In Stock, Qty 20+

0

18

Kohler 24 755 09-S

KIT, PUMP ADAPTER

$313.99

$

Usually ships in 2-5 days

0

19

Kohler X-23-1-S

WASHER, SPRING LOCK 7/16"

$3.99

$

Usually ships in 2-5 days

0

20

Kohler X-8-21-S

SCREW,CAP HD 7/16-14x1 1/2"

$3.49

$

Usually ships in 2-5 days

0

21

Kohler 52 380 06-S

PIN, ALIGNMENT

$58.99

$

Usually ships in 2-5 days

0

22

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, only 4 left!

0

23

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0

275066-S

Kohler 275066-S

SPACER (.005")

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

275067-S

Kohler 275067-S

SPACER (.010")

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 2 left!

0
