CH22-76518 - Kohler Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW Crankcase 2-24-122 Parts Diagram

Command PRO Twin Engine, Made for Encore Mfg, 22hp, 16.4kW

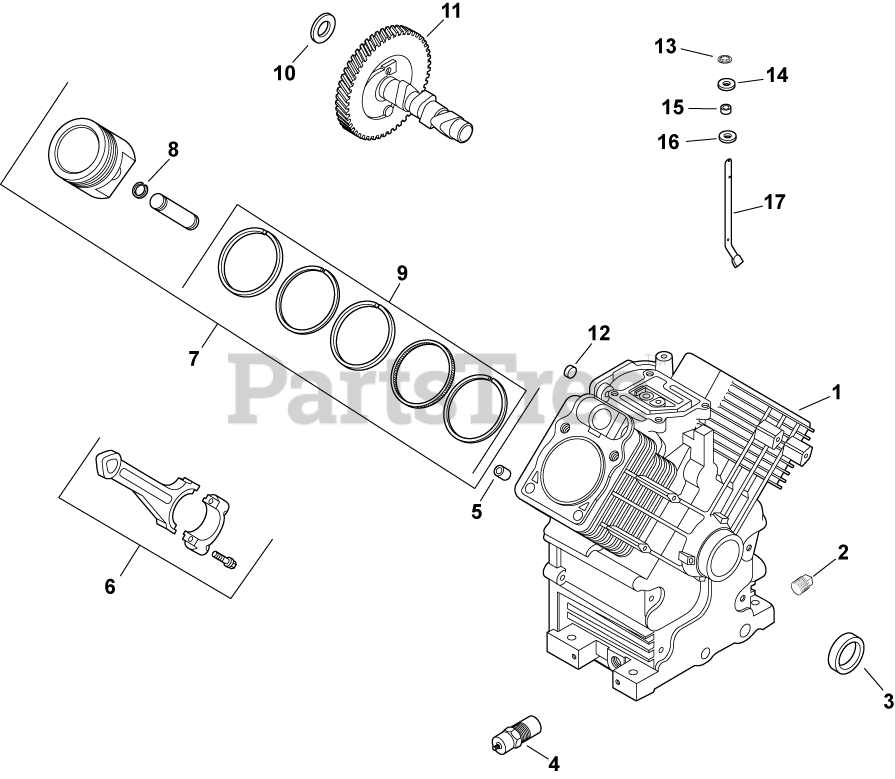

Crankcase 2-24-122 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE; SHORT BLOCK)

$

$

Not available

2

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$8.99

$

In Stock, Qty 20+

0

4

Kohler 24 418 01-S

SENSOR, OIL TEMPERATURE

$133.99

$

In Stock, only 3 left!

0

5

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 16

0

6

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$71.99

$

In Stock, Qty 10

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$71.99

$

In Stock, only 1 left!

0

7

Kohler 24 874 34-S

PISTON W/RINGS (STYLE A)(STD)-USE 24 874 42-S
(Superseded to 24 874 54-S)

$300.99

$

Usually ships in 2-5 days

0

2487435-S

Kohler 24 874 35-S

PISTON W/RINGS (STYLE A) (.08) -USE 24 874 43-S
(Superseded to 24 874 55-S)

$

$

Not available

2487436-S

Kohler 24 874 36-S

KIT, PISTON-USE 24 874 44-S
(Superseded to 24 874 56-S)

$347.99

$

Usually ships in 2-5 days

0

2487437-S

Kohler 24 874 37-S

KIT, PISTON-USE 24 874 45-S
(Superseded to 24 874 45-S)

$318.99

$

Usually ships in 2-5 days

0

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 9

0

9

Kohler 24 108 18-S

RING SET (STYLE A)(STD) 1.5MM TOP RING THICKNESS USE PISTON ASSY PER SPEC - Discontinued
(Superseded to 24 108 19-S)

$

$

Not available

2410819-S

Kohler 24 108 19-S

RING SET (STYLE A) (.08) 1.5MM TOP RING THICKNESS -DISCONTINUED
(Superseded to 24 874 43-S)

$

$

Not available

2410820-S

Kohler 24 108 20-S

RING SET (STYLE A)(.25)1.5MM TOP RING THICKNESS - USE 24 874 44-S
(Superseded to 24 874 44-S)

$347.99

$

Usually ships in 2-5 days

0

2410821-S

Kohler 24 108 21-S

RING SET (STYLE A)(.50)1.5MM TOP RING THICKNESS
(Superseded to 24 108 29-S)

$175.99

$

Usually ships in 2-5 days

0

10

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 1 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

Usually ships in 2-5 days

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 10

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

11

Kohler 24 010 06-S

KIT, CAMSHAFT

$456.99

$

In Stock, only 1 left!

0

12

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 4 left!

0

13

Kohler 24 018 09-S

RETAINER, RING

$2.99

$

In Stock, only 1 left!

0

14

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.99

$

Usually ships in 2-5 days

0

16

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$49.99

$

In Stock, only 1 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 2 left!

0
