CH22-76521 - Kohler Command PRO Twin Engine, Made for Sherman & Reilly, 22hp, 16.4kW Cylinder Head/ Breather Group 4-24-381 CH18-750 Parts Diagram

Command PRO Twin Engine, Made for Sherman & Reilly, 22hp, 16.4kW

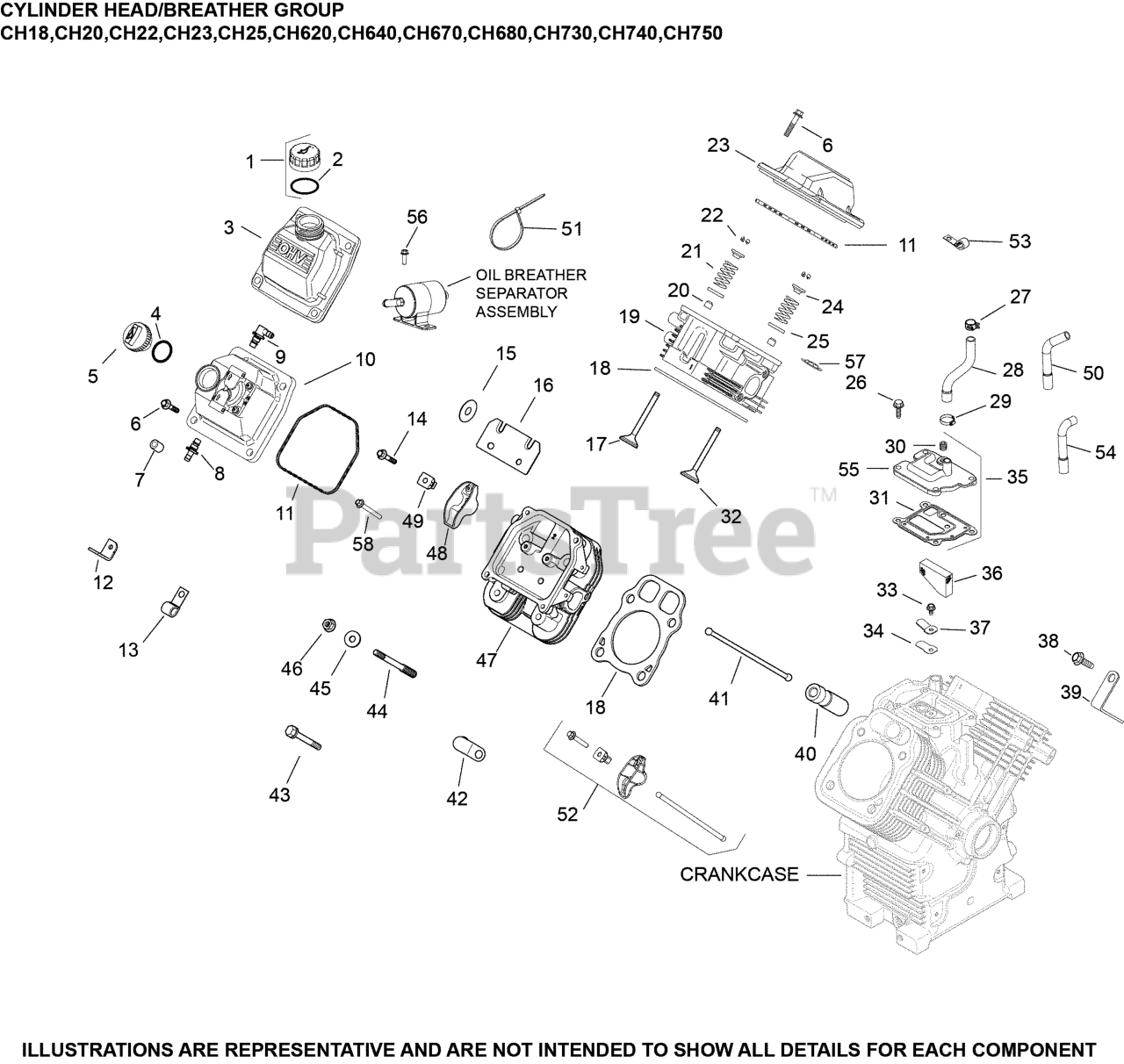

Cylinder Head/ Breather Group 4-24-381 CH18-750 Parts Diagram

  • Title

4

Kohler 24 153 32-S

O-RING

$2.99

$

In Stock, Qty 18

0

5

Kohler 24 227 02-S

CAP ASSY, OIL FILL (YELLOW)

$7.99

$

In Stock, Qty 20+

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

8

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, Qty 11

0

9

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 1 left!

0

10

Kohler 24 559 10-S

KIT, VALVE COVER-FUEL PUMP

$173.99

$

In Stock, Qty 20+

0

11

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

14

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$21.99

$

In Stock, Qty 20+

0

17

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$20.99

$

In Stock, Qty 8

0

18

Kohler 24 841 02-S

KIT, GSKT CYL HD (C22-23 674CC)

$45.99

$

In Stock, Qty 7

0

19

Kohler 24 318 144-S

HEAD ASSEMBLY, CYLINDER (#1) USE 24 318 173-S
(Superseded to 24 318 202-S)

$240.99

$

In Stock, only 2 left!

0

20

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

21

Kohler 24 089 02-S

SPRING, VALVE

$11.99

$

In Stock, Qty 20+

0

22

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 18

0

23

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN (PLASTIC)

$39.99

$

In Stock, Qty 19

0

24

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 9

0

25

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, Qty 10

0

26

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.99

$

In Stock, Qty 20+

0

27

Kohler 25 237 37-S

CLAMP SPRING HOSE

$2.49

$

In Stock, Qty 20+

0

28

Kohler 24 326 89-S

HOSE, BREATHER

$13.99

$

In Stock, Qty 20+

0

31

Kohler 24 041 67-S

GASKET, BREATHER

$13.99

$

In Stock, Qty 20+

0

32

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$41.99

$

In Stock, Qty 20+

0

32

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

33

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 5

0

34

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 20+

0

35

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

$31.99

$

In Stock, Qty 6

0

36

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

In Stock, Qty 20+

0

37

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 19

0

38

Kohler 25 086 395-S

SCREW, THREAD FORMING

$3.49

$

In Stock, Qty 17

0

39

Kohler 25 445 03-S

STRAP, LIFT

$

$

Not available

40

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC - (#2535111S)
(Superseded to 25 351 11-S)

$32.99

$

In Stock, Qty 20+

0

41

Kohler 24 411 05-S

ROD, PUSH

$7.49

$

In Stock, Qty 20+

0

43

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 20+

0

47

Kohler 24 318 150-S

HEAD ASSEMBLY, CYLINDER (#2) USE 24 318 174-S
(Superseded to 24 318 203-S)

$240.99

$

In Stock, only 2 left!

0

48

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, Qty 7

0

49

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 20+

0

51

Kohler 25 454 05-S

TIE

$2.49

$

In Stock, only 2 left!

0

52

Kohler 24 755 66-S

KIT, VALVE TRAIN

$45.99

$

In Stock, Qty 17

0

55

Kohler 24 096 163-S

COVER, BREATHER

$50.99

$

In Stock, only 4 left!

0

57

Kohler 24 018 05-S

RETAINER, VALVE GUIDE (KM)

$2.49

$

Usually ships in 2-5 days

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED (SERVICES 1 HEAD. QUANTITIES LISTED ARE FOR BOTH HEADS)

$96.99

$

In Stock, only 2 left!

0

No Description

$

$

Not available
