CH22-76529 - Kohler Command PRO Twin Engine, Made for Lincoln Electric, 22hp, 16.4kW Oil Pan/Lubrication 3-24-359 Parts Diagram

Command PRO Twin Engine, Made for Lincoln Electric, 22hp, 16.4kW

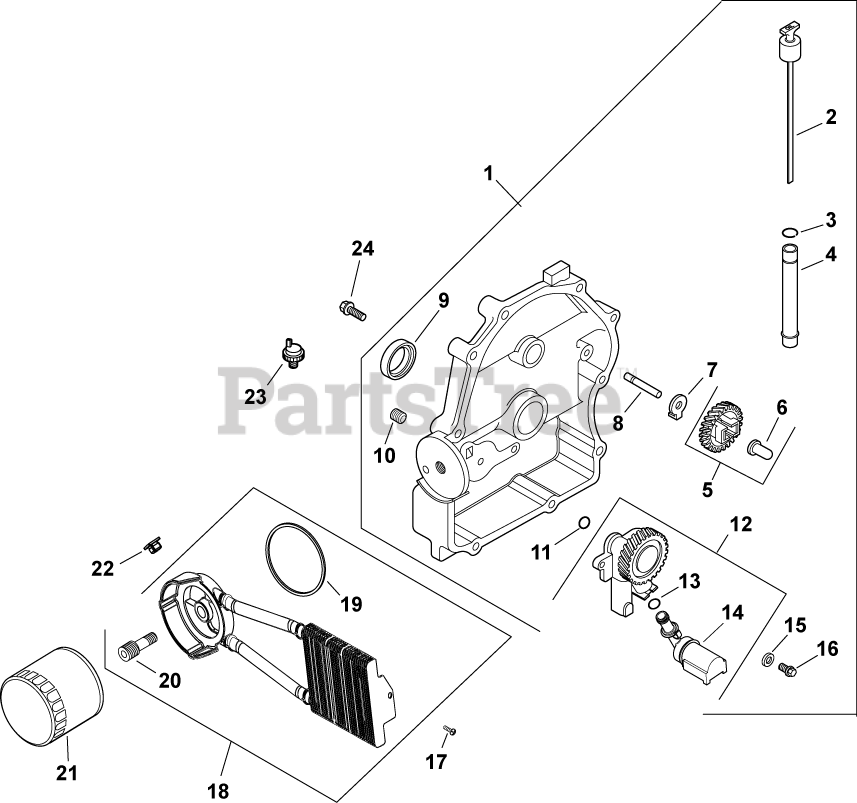

Oil Pan/Lubrication 3-24-359 Parts Diagram

  • Title

1

Kohler 24 009 105-S

KIT, CLOSURE PLATE USE 24 009 220-S
(Superseded to 24 009 220-S)

Note: (includes 2-16)

$669.99

$

Usually ships in 2-5 days

0

2

Kohler 24 038 08-S

DIPSTICK

Note: (includes 3)

$

$

Not available

3

Kohler 41 153 01-S

O-RING

$5.49

$

Usually ships in 2-5 days

0

4

Kohler 24 123 11-S

KIT, OIL FILL TUBE - METAL

$35.99

$

Usually ships in 2-5 days

0

5

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 6)

$68.99

$

In Stock, only 1 left!

0

6

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 12

0

7

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, only 4 left!

0

9

Kohler 25 032 06-S

SEAL, OIL

$10.99

$

In Stock, Qty 20+

0

10

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 3 left!

0

11

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

12

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 13, 14)

$

$

Not available

13

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

14

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 4 left!

0

15

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

16

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

17

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

18

Kohler 54 755 21-S

KIT, OIL COOLER

Note: (includes 19, 20)

$256.99

$

Usually ships in 2-5 days

0

19

Kohler 24 153 21-S

O-RING, OIL COOLER

$5.99

$

In Stock, Qty 6

0

20

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 08-S)

$12.99

$

In Stock, only 4 left!

0

21

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

22

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

23

Kohler 25 099 23-S

SWITCH, OIL PRESSURE

$31.99

$

Usually ships in 2-5 days

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 19

0

1208613-S

Kohler 12 086 13-S

SCREW, FLG M8X1.25X50
(Superseded to 25 086 618-S)

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0
