CH23-76523 - Kohler Command PRO Twin Engine, Made for Metalcraft, 23hp, 17.2kW Fuel System Group 8-24-233 Parts Diagram

Command PRO Twin Engine, Made for Metalcraft, 23hp, 17.2kW

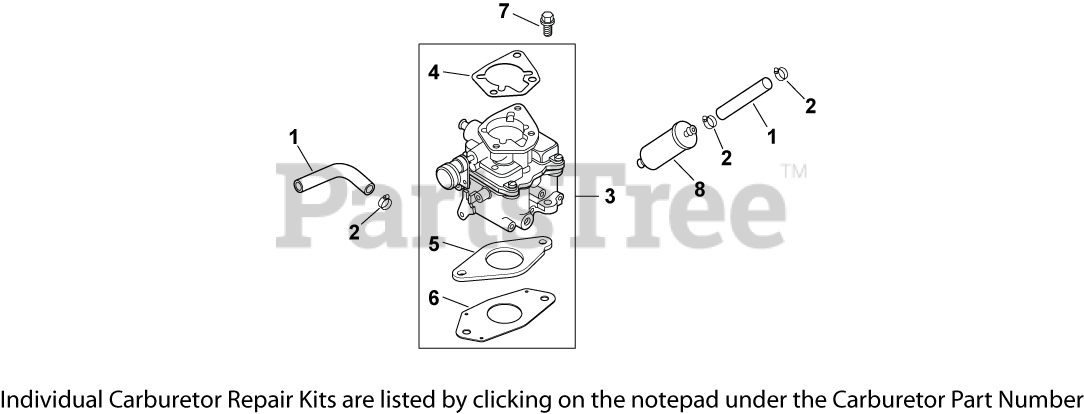

Fuel System Group 8-24-233 Parts Diagram

  • Title

1

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

3

Kohler 24 853 58-S

KIT, CARBURETOR W/GASKETS
(Superseded to 24 853 310-S)

$285.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 9

0

5

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 15

0

6

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, Qty 12

0

7

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

8

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2451824-S

Kohler 24 518 24-S

LEAD, GROUND

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 1 left!

0
