CH23-76547 - Kohler Command PRO Twin Engine, Made for Magnum Products, 23hp, 17.2kW Engine Controls 9-24-334 Parts Diagram

Command PRO Twin Engine, Made for Magnum Products, 23hp, 17.2kW

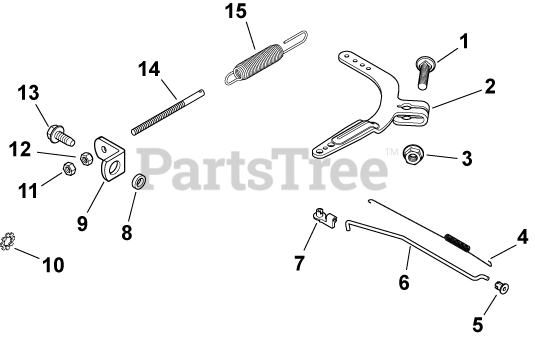

Engine Controls 9-24-334 Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 16

0

2

Kohler 24 090 33-S

LEVER, GOVERNOR-USE 24 090 57-S
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 16

0

4

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, Qty 8

0

5

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 15

0

6

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

Usually ships in 2-5 days

0

7

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 20+

0

8

Kohler 25 431 01-S

SPACER

$6.99

$

Usually ships in 2-5 days

0

9

Kohler 47 126 32-S

BRACKET

$6.99

$

Usually ships in 2-5 days

0

10

Kohler X-22-12-S

WASHER,INT EXT TOOTH LOCK 1/4"

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

$3.49

$

In Stock, only 1 left!

0

12

Kohler 25 100 06-S

NUT, ADJUSTING

$8.49

$

Usually ships in 2-5 days

0

13

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

14

Kohler 24 411 03-S

ROD, SPEED CONTROL

$15.99

$

Usually ships in 2-5 days

0

15

Kohler 24 089 44-S

SPRING, GOVERNOR (RED)

$8.99

$

In Stock, only 1 left!

0
