CH23-76607 - Kohler Command PRO Twin Engine, Made for Cub Cadet, 23hp, 17.2kW Air Intake/Filtration 10-24-213 Parts Diagram

Command PRO Twin Engine, Made for Cub Cadet, 23hp, 17.2kW

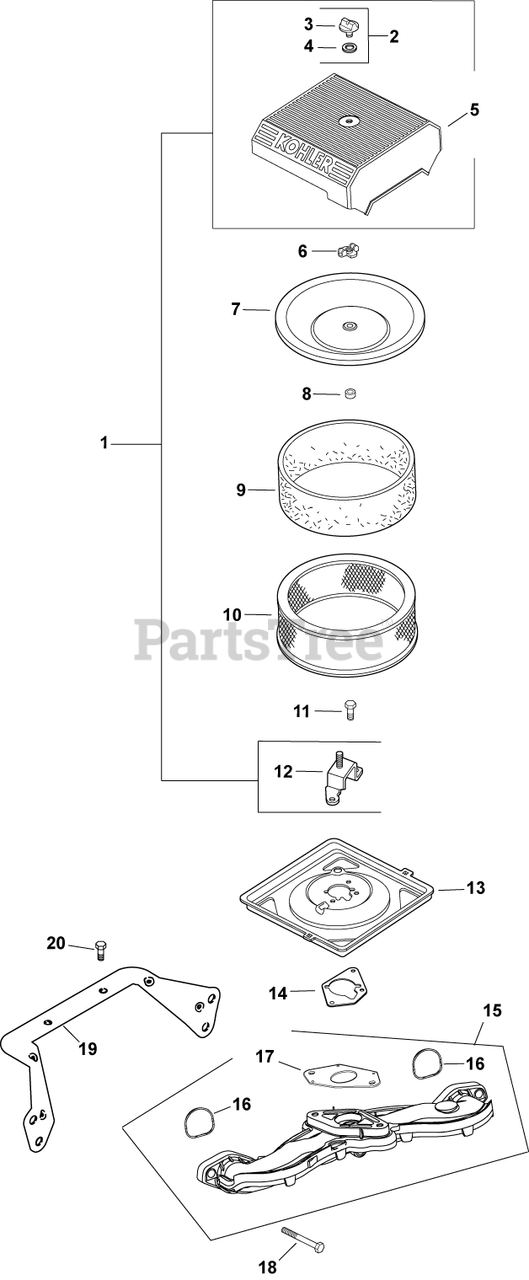

Air Intake/Filtration 10-24-213 Parts Diagram

  • Title

1

Kohler 24 743 08-S

KIT, AIR CLEANER COVER

Note: (includes 3,4,5,12 & 24 126 88-S)

$67.99

$

Usually ships in 2-5 days

0

2

Kohler 54 755 01-S

KIT, KNOB W/SEAL

Note: (includes 3,4 & 24 041 27-S)

$9.49

$

In Stock, Qty 14

0

3

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

In Stock, only 2 left!

0

4

Kohler 24 153 20-S

O-RING

$2.99

$

In Stock, only 2 left!

0

5

Kohler 24 096 69-S

COVER, AIR CLEANER

$47.99

$

In Stock, only 2 left!

0

6

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 20+

0

7

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

8

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

Usually ships in 2-5 days

0

9

Kohler 24 083 02-S

ELEMENT, PRECLEANER (LOW)

$6.99

$

Usually ships in 2-5 days

0

10

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 15

0

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

12

Kohler 24 126 21-S

BRACKET,AIR CLEANERBASE-USE 24 126 206-S
(Superseded to 24 126 206-S)

$12.99

$

In Stock, only 2 left!

0

13

Kohler 24 094 39-S

BASE, AIR CLEANER-USE 24 094 84-S
(Superseded to 24 094 84-S)

$20.99

$

In Stock, only 1 left!

0

14

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 13

0

15

Kohler 24 164 54-S

MANIFOLD, INTAKE - PLASTIC-USE 24 164 93
(Superseded to 24 164 93-S)

Note: (includes 16,17)

$184.99

$

In Stock, only 1 left!

0

16

Kohler 24 153 27-S

O-RING, INTAKE PORT

$3.99

$

In Stock, only 3 left!

0

17

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.99

$

Usually ships in 2-5 days

0

18

Kohler M-651040-S

SCREW, FLG M6X1.0X40

$2.49

$

In Stock, only 1 left!

0

19

Kohler 24 126 130-S

BRACKET, AIR CLEANER BASE

$10.99

$

In Stock, only 2 left!

0

20

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.99

$

In Stock, only 3 left!

0
