CH23-76607 - Kohler Command PRO Twin Engine, Made for Cub Cadet, 23hp, 17.2kW Lubrication Group 3-24-545 Parts Diagram

Command PRO Twin Engine, Made for Cub Cadet, 23hp, 17.2kW

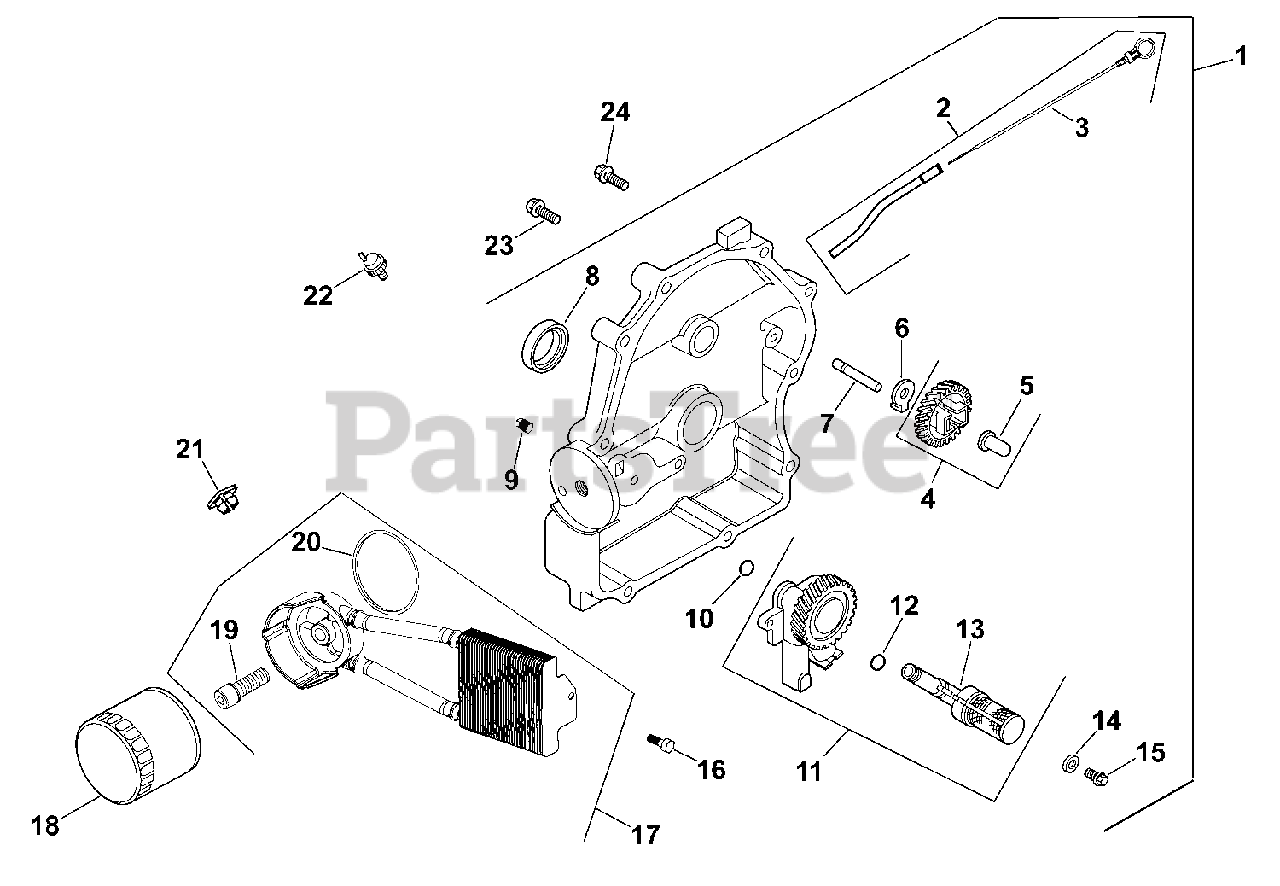

Lubrication Group 3-24-545 Parts Diagram

  • Title

1

Kohler 24 009 83-S

USE 24 009 167-S CLOSURE PLATE
(Superseded to 24 009 238-S)

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$45.99

$

In Stock, only 4 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 8

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$76.99

$

In Stock, Qty 7

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

6

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$6.49

$

In Stock, Qty 13

0

8

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$13.99

$

In Stock, Qty 20+

0

9

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 1 left!

0

10

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 20+

0

11

Kohler 24 393 37-S

OIL PUMP ASSY KIT-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.99

$

In Stock, Qty 20+

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

14

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

15

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$3.49

$

In Stock, Qty 17

0

16

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

17

Kohler 54 755 21-S

KIT, OIL COOLER

$311.99

$

Usually ships in 2-5 days

0

18

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

19

Kohler 28 136 01-S

NIPPLE, OIL FILTER

$90.99

$

Usually ships in 2-5 days

0

20

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 20+

0

21

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 2 left!

0

22

Kohler 25 099 24-S

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-
(Superseded to 25 099 27-S)

$15.99

$

In Stock, Qty 20+

0

23

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

24

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0
