CH23-76635 - Kohler Command PRO Twin Engine, Made for Lincoln Ranger, 23hp, 17.2kW Blower Housing Group 6-24-446 Parts Diagram

Command PRO Twin Engine, Made for Lincoln Ranger, 23hp, 17.2kW

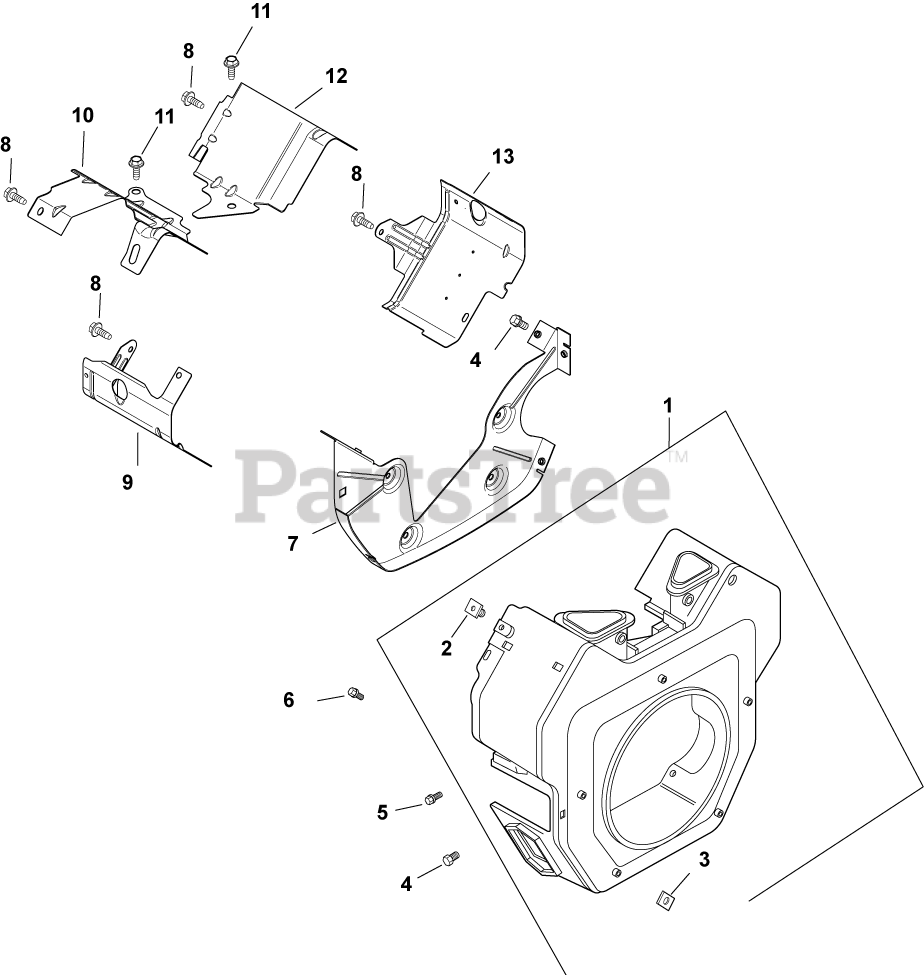

Blower Housing Group 6-24-446 Parts Diagram

  • Title

1

Kohler 24 027 176-S

KIT, BLOWER HOUSING ASSEMBLY USE 24 027 479-S
(Superseded to 24 027 479-S)

$166.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

4

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$4.99

$

In Stock, Qty 9

0

5

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, only 1 left!

0

7

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

Usually ships in 2-5 days

0

8

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 7

0

9

Kohler 32 063 02-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 24 063 94-S)

$9.49

$

Usually ships in 2-5 days

0

10

Kohler 32 063 03-S

BAFFLE, VALLEY-USE 24 063 93-S
(Superseded to 24 063 93-S)

$6.49

$

In Stock, only 2 left!

0

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

12

Kohler 24 063 88-S

KIT, CYL BAFFEL #2 SIDE

$28.99

$

Usually ships in 2-5 days

0

13

Kohler 24 063 85-S

KIT, CYL BAFFEL #1 SIDE

$17.99

$

In Stock, only 1 left!

0

2433201-S

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$12.99

$

In Stock, only 1 left!

0

2509930-S

Kohler 25 099 30-S

KIT, KEY SWITCH (SNAP-IN)

Note: NOT ILLUSTRATED

$36.99

$

Usually ships in 2-5 days

0

2513917-S

Kohler 25 139 17-S

PLUG, BUTTON 1/2

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2513976-S

Kohler 25 139 76-S

PLUG, KEY SWITCH

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0
