CH23-76635 - Kohler Command PRO Twin Engine, Made for Lincoln Ranger, 23hp, 17.2kW

Command PRO Twin Engine, Made for Lincoln Ranger, 23hp, 17.2kW

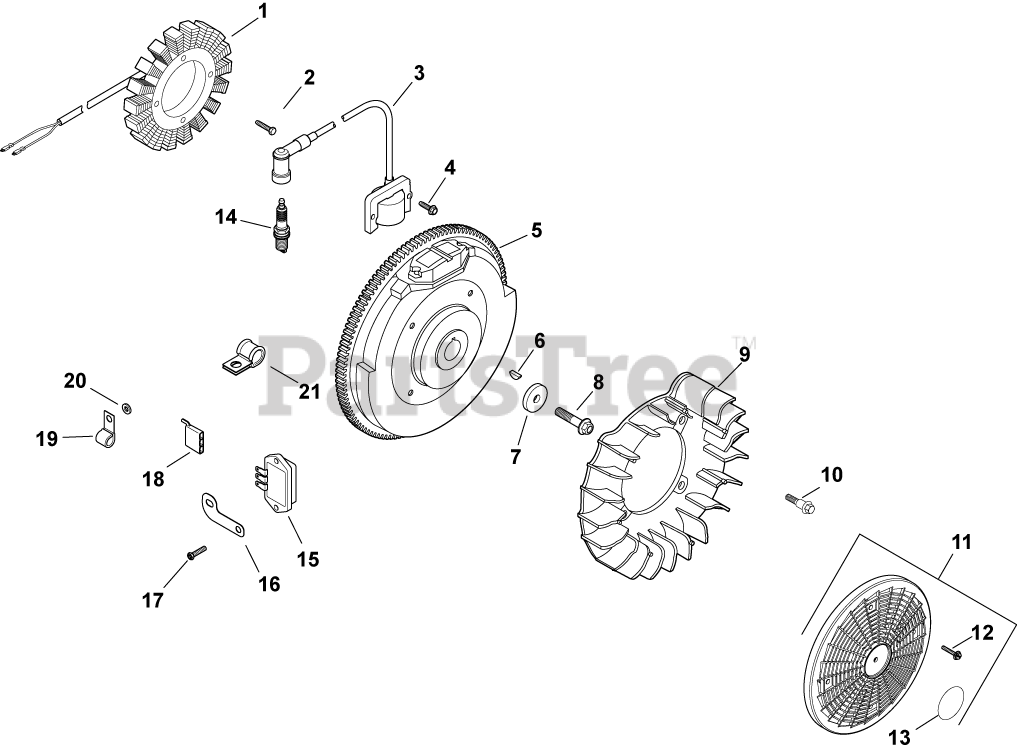

CH23-76635 - Kohler Command PRO Twin Engine, Made for Lincoln Ranger, 23hp, 17.2kW > Parts Diagrams (14) > Ignition/ Charging Group 5-24-979

  • Title
237878-S

1

KIT, 15 / 20 AMP STATOR

Part# 237878-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $122.20

M-548025-S

2

SCREW, M5X0.8X25 - (#25086402S)

Part# M-548025-S (Superseded to 25 086 402-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

24 584 45-S

3

KIT, MODULE IGNTN (CDI FIXED)

Part# 24 584 45-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $90.50

M-545020-S

4

SCREW, FLG THD FRM M5X.8X20-(#25086399S)

Part# M-545020-S (Superseded to 25 086 473-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.96

24 025 55-S

5

FLYWHEEL

Part# 24 025 55-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $254.33

X-42-15-S

6

KEY, 3/16" X 5/8"

Part# X-42-15-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.29

12 468 03-S

7

WASHER, FLAT 13/32"

Part# 12 468 03-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $5.11

12 086 14-S

8

SCREW, FLG M10X1.5X45 - (#25086361S)

Part# 12 086 14-S (Superseded to 25 086 361-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.85

24 157 11-S

9

FAN USE 24 755 253-S

Part# 24 157 11-S (Superseded to 24 755 253-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $37.06

25 086 47-S

10

BOLT, SHOULDER

Part# 25 086 47-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

54 755 15-S

11

KIT, GRASS SCREEN

Part# 54 755 15-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $33.79

25 086 117-S

12

SCREW, FLG SEMS M4X.7X25

Part# 25 086 117-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $2.04

24 113 18-S

13

DECAL, GRASS SCREEN USE 24 113 499-S

Part# 24 113 18-S (Superseded to 24 113 499-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $3.87

12 132 02-S

14

PLUG, SPARK (STD)

Part# 12 132 02-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $3.40

41 403 09-S

15

REG/RECT-15 AMP (KM)-USE 41 403 10-S

Part# 41 403 09-S (Superseded to 41 403 10-S)

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $85.17

24 126 137-S

16

BRACKET, GROUND STRAP USE 24 518 12-S

Part# 24 126 137-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $3.72

25 086 157-S

17

SCREW, HEX FLANGE HI-LO

Part# 25 086 157-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

25 155 41-S

18

CONNECTOR

Part# 25 155 41-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $6.29

235173-S

19

CLIP, CABLE

Part# 235173-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $9.19

X-25-63-S

20

WASHER, FLAT 1/4" (O.D. 1/2")

Part# X-25-63-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $1.92

210281-S

21

CLIP

Part# 210281-S

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $6.07

24 176 13-S

2417613-S

HARNESS, WIRING

Part# 24 176 13-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $79.79

25 454 07-S

2545407-S

TIE

Part# 25 454 07-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 4 to 10 business days

Your price: $1.92

25 452 01-S

2545201-S

TERMINAL

Part# 25 452 01-S

Note: NOT ILLUSTRATED

OEM Warranty Repair Part for Kohler

Usually leaves our warehouse in 1 business day

Your price: $4.49
