CH25-68515 - Kohler Command PRO Twin Engine, Made for Bunton, 25hp, 18.61kW Fuel System 8-24-29 (TP-2439-C) Parts Diagram

Command PRO Twin Engine, Made for Bunton, 25hp, 18.61kW

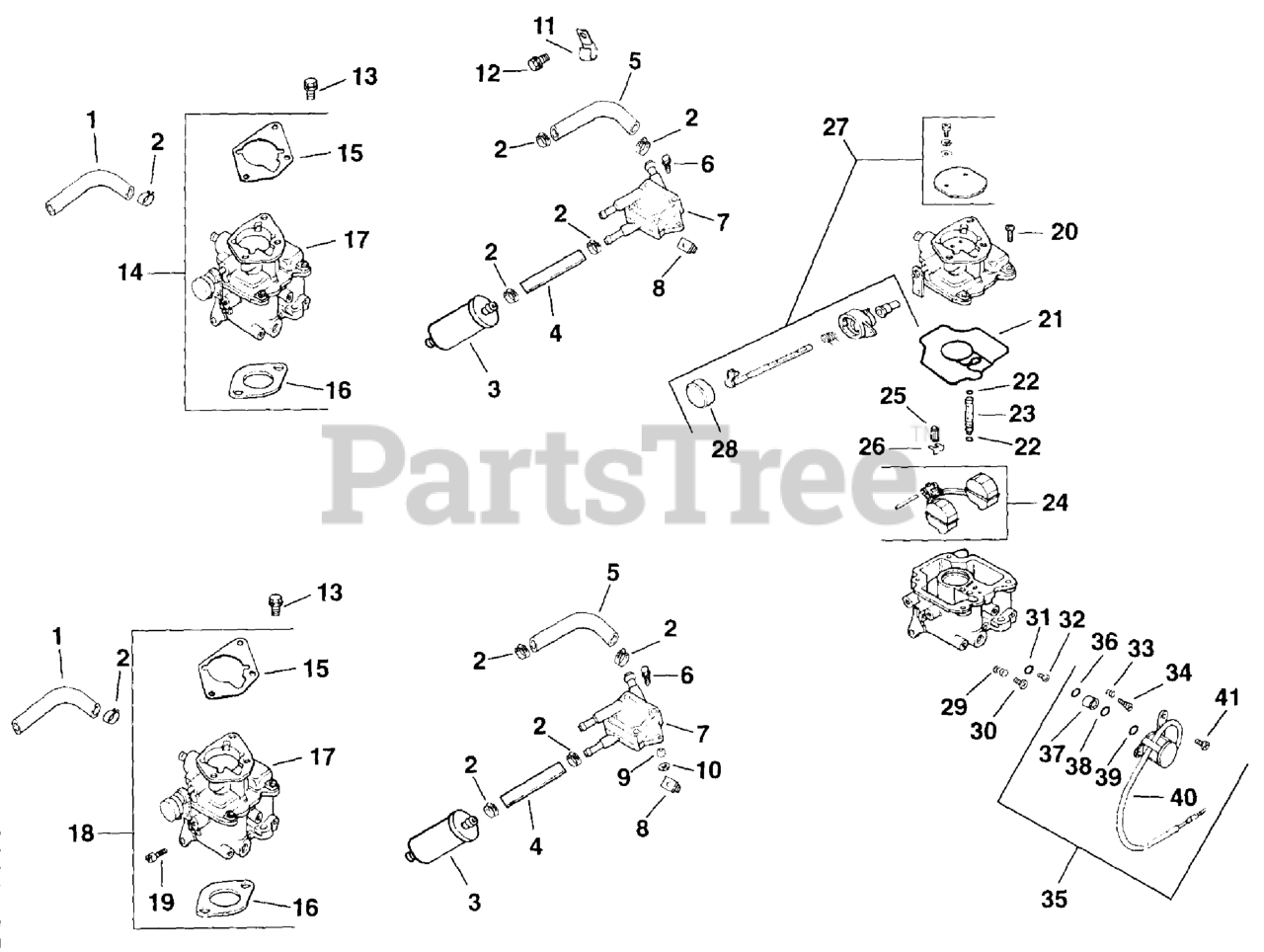

Fuel System 8-24-29 (TP-2439-C) Parts Diagram

  • Title

2

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$5.99

$

In Stock, Qty 12

0

3

Kohler 25 050 03-S

USE 25 050 08-S FUEL FILTER
(Superseded to 25 050 22-S)

Note: Replaced by 24-050-02

$8.99

$

In Stock, Qty 20+

0

4

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

5

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, Qty 5

0

6

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 393 04

PUMP, FUEL - PULSE - USE 24 393 16
(Superseded to 24 393 16)

$32.99

$

In Stock, Qty 20+

0

8

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

11

Kohler 47 154 01-S

CLIP, CABLE

Note: Order qty. according to design used on engine

$5.49

$

In Stock, only 2 left!

0

12

Kohler M-0650012

SCREW - USE M-650012
(Superseded to M-650012-S)

$3.49

$

In Stock, Qty 7

0

13

Kohler M-0651030

SCREW - USE M-651030
(Superseded to M-651030-S)

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 24 853 34-S

KIT,CARB(KEIHIN) W/GASKETS-KSF

$573.99

$

In Stock, only 1 left!

0

15

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

16

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 6

0
