CH25-68553 - Kohler Command PRO Twin Engine, Made for Lely, 25hp, 18.61kW Air Intake Group 10-24-34 Parts Diagram

Command PRO Twin Engine, Made for Lely, 25hp, 18.61kW

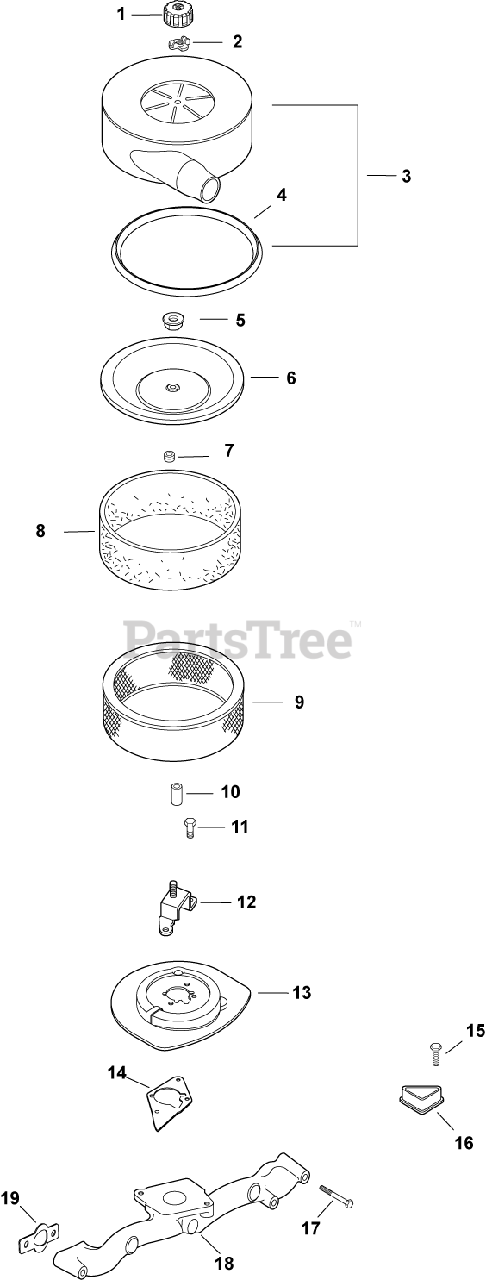

Air Intake Group 10-24-34 Parts Diagram

  • Title

1

Kohler 12 341 01-S

KNOB

$15.99

$

Usually ships in 2-5 days

0

2

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, Qty 18

0

3

Kohler 24 096 56-S

COVER, AIR CLEANER

$182.99

$

Usually ships in 2-5 days

0

4

Kohler 24 743 18-S

KIT, AIR CLEANER COVER SEAL

$48.99

$

Usually ships in 2-5 days

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

6

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 2 left!

0

7

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

Usually ships in 2-5 days

0

8

Kohler 24 083 05-S

PRE-CLEANER (HIGH)

$6.99

$

Usually ships in 2-5 days

0

9

Kohler 24 083 03-S

ELEMENT, AIR FILTER (HIGH) - Also available Retail Packaged 24 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 18

0

10

Kohler 230046-S

SEAL, BREATHER

$6.49

$

In Stock, only 2 left!

0

11

Kohler 24 086 53-S

SCREW, FLG THD FRM M6X1.0X16

$2.99

$

In Stock, only 2 left!

0

12

Kohler 24 126 97-S

BRACKET ASSY,AIR CLEANER-USE 24 126 211-
(Superseded to 24 126 211-S)

$22.99

$

Usually ships in 2-5 days

0

13

Kohler 24 094 05-S

BASE, AIR CLEANER-USE 24 094 91-S
(Superseded to 24 094 91-S)

$71.99

$

Usually ships in 2-5 days

0

14

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 13

0

15

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

16

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$5.99

$

In Stock, Qty 9

0

17

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 24 164 14-S

MANIFOLD, METAL INTAKE

$275.99

$

Usually ships in 2-5 days

0

19

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$3.49

$

In Stock, only 4 left!

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2475599-S

Kohler 24 755 99-S

KIT, AIR CLEANER BRACKET

Note: NOT ILLUSTRATED

$34.99

$

Usually ships in 2-5 days

0

2459702-S

Kohler 24 597 02-S

ADHESIVE

Note: NOT ILLUSTRATED

$22.99

$

Usually ships in 2-5 days

0
