CH25-68638 - Kohler Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW Ignition/Electrical 5-24-451 Parts Diagram

Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW

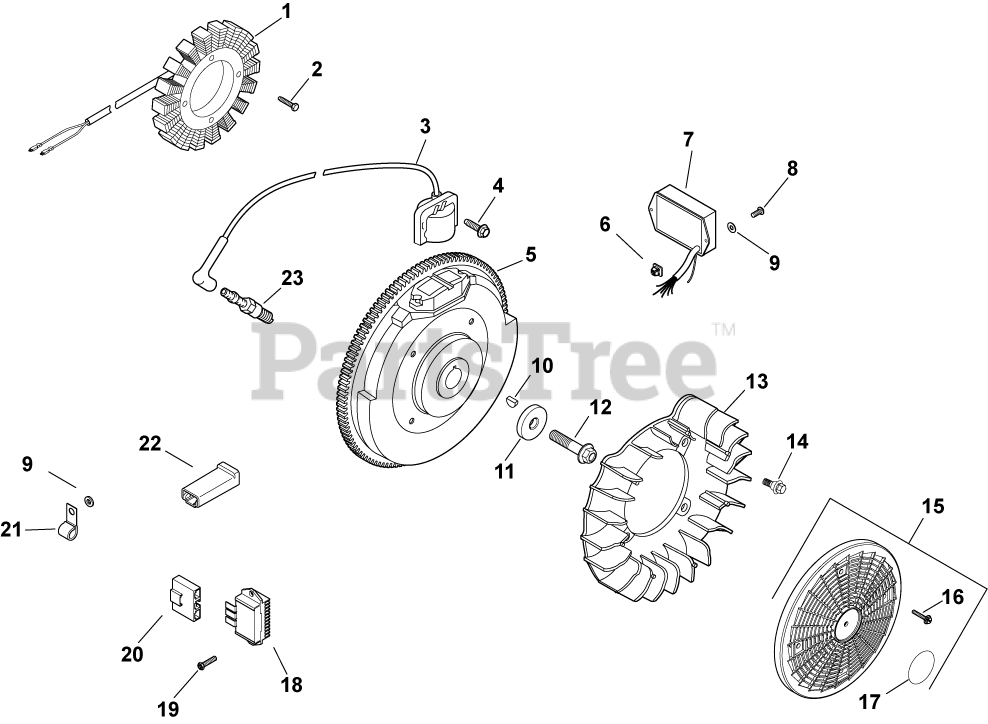

Ignition/Electrical 5-24-451 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 10

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 36-S

MODULE, IGNITION

Note: (Before S/N 3734900011)

$101.99

$

In Stock, Qty 6

0

2458454-S

Kohler 24 584 54-S

MODULE, SPARK ADV(DSAI)-USE 24 584 91-S
(Superseded to 24 584 65-S)

Note: (After S/N 3734900001)

$171.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

5

Kohler 24 025 58-S

FLYWHEEL ASSEMBLY (LW)

$

$

Not available

6

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 584 34-S

KIT, MDLE DSA LP/NG SWITCHABLE - DISCONTINUED
(Superseded to 24 755 344-S)

$225.99

$

Usually ships in 2-5 days

0

8

Kohler 24 086 41-S

SCREW, PHL HD #11-16X1/2"

$2.49

$

In Stock, only 3 left!

0

9

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 4 left!

0

10

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 2 left!

0

11

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

Usually ships in 2-5 days

0

12

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

13

Kohler 24 157 11-S

FAN USE 24 755 253-S
(Superseded to 24 755 253-S)

$45.99

$

In Stock, Qty 5

0

14

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, only 4 left!

0

15

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 16, 17)

$41.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

18

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-
(Superseded to 25 403 39-S)

$85.99

$

In Stock, Qty 12

0

19

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, only 3 left!

0

20

Kohler 25 155 41-S

CONNECTOR

$7.99

$

In Stock, Qty 10

0

21

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

22

Kohler 277563-S

CONNECTOR (1 CONTACT)

$6.49

$

Usually ships in 2-5 days

0

23

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

2415403-S

Kohler 24 154 03-S

CLIP, CABLE - USE 24 154 10-S
(Superseded to 24 154 10-S)

Note: NOT ILLUSTRATED

$2.99

$

In Stock, only 2 left!

0

25086158-S

Kohler 25 086 158-S

SCREW, FLNG THD FRM M6X1.0X10 USE 25 086 406-S
(Superseded to 25 086 406-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

4715401-S

Kohler 47 154 01-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$4.99

$

In Stock, Qty 7

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 1 left!

0

24176112-S

Kohler 24 176 112-S

HARNESS, WIRING-USE 24 176 150-S
(Superseded to 24 176 150-S)

Note: NOT ILLUSTRATED

$44.99

$

Usually ships in 2-5 days

0

2417678-S

Kohler 24 176 78-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$35.99

$

Usually ships in 2-5 days

0

2545407-S

Kohler 25 454 07-S

TIE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2551834-S

Kohler 25 518 34-S

LEAD, 20/25 AMP B+

Note: NOT ILLUSTRATED

$6.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0
