CH25-68639 - Kohler Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW Fuel System 8-24-275 Parts Diagram

Command PRO Twin Engine, Made for US Filter, 25hp, 18.61kW

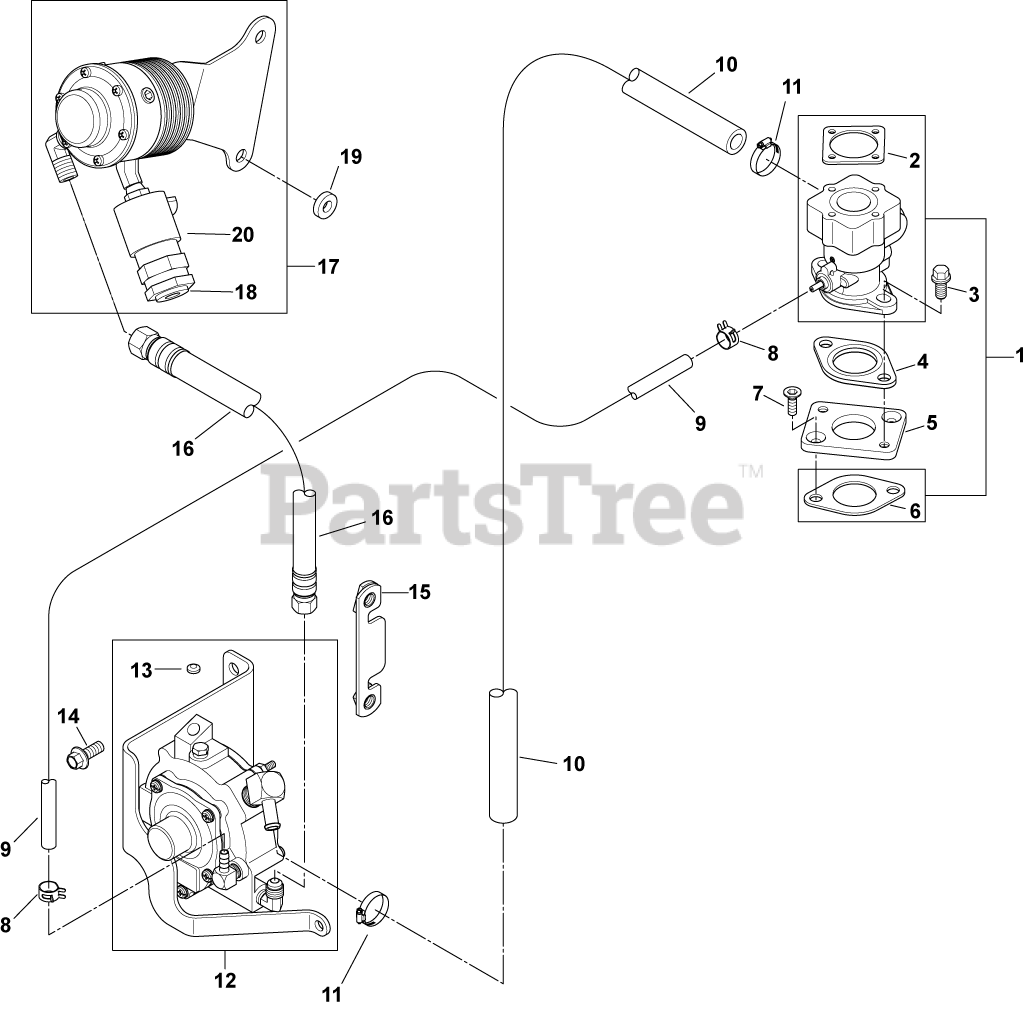

Fuel System 8-24-275 Parts Diagram

  • Title

1

Kohler 24 853 74-S

KIT, CARBURETOR W/GASKETS - DISCONTINUED

Note: (includes 2 & 6)

$

$

Not available

2

Kohler 277093-S

GASKET, AIR CLEANER

$8.49

$

In Stock, Qty 8

0

3

Kohler 24 086 47-S

SCREW

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 43-S

GASKET, CARBURETOR

$26.99

$

Usually ships in 2-5 days

0

5

Kohler 24 029 37-S

ADAPTER, MANIFOLD

$482.99

$

Usually ships in 2-5 days

0

6

Kohler 24 041 42-S

GASKET, INTAKE MANIFOLD

$23.99

$

Usually ships in 2-5 days

0

7

Kohler 24 086 46-S

SCREW

$

$

Not available

8

Kohler 25 237 01-S

CLAMP, HOSE

$3.49

$

Usually ships in 2-5 days

0

9

Kohler 24 353 26-S

DISCONTINUED - HOSE, VACUUM

$

$

Not available

10

Kohler 24 353 23-S

HOSE, REGULATOR

$90.99

$

Usually ships in 2-5 days

0

11

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 5

0

12

Kohler 24 403 10-S

REGULATOR ASSEMBLY

Note: (includes 13, 24 747 40-S)

$812.99

$

Usually ships in 2-5 days

0

13

Kohler 25 139 29-S

PLUG, EXPANDER - DISCONTINUED

$

$

Not available

14

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

15

Kohler 24 126 72-S

BRACKET, MOUNTING

$43.99

$

Usually ships in 2-5 days

0

16

Kohler 24 353 24-S

HOSE, VAPORIZER

$182.99

$

Usually ships in 2-5 days

0

17

Kohler 24 465 03-S

VAPORIZER ASSEMBLY

Note: (includes 18, 24 757 42-S)

$1059.99

$

Usually ships in 2-5 days

0

18

Kohler 25 139 23-S

PLUG, CAP 1/4 INCH

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 468 01-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

20

Kohler 24 435 04-S

SOLENOID, 12VDC LOCKOFF
(Superseded to 24 435 10-S)

Note: Lead Length may vary

$279.99

$

Usually ships in 2-5 days

0

2475740-S

Kohler 24 757 40-S

KIT, REPAIR - FUEL REGULATOR

Note: NOT ILLUSTRATED

$252.99

$

Usually ships in 2-5 days

0

2475742-S

Kohler 24 757 42-S

KIT, REPAIR - SOLENOID

Note: NOT ILLUSTRATED

$95.99

$

Usually ships in 2-5 days

0
