CH25-68645 - Kohler Command PRO Twin Engine, Made for Metalcraft, 25hp, 18.61kW Fuel System 8-24-170 Parts Diagram

Command PRO Twin Engine, Made for Metalcraft, 25hp, 18.61kW

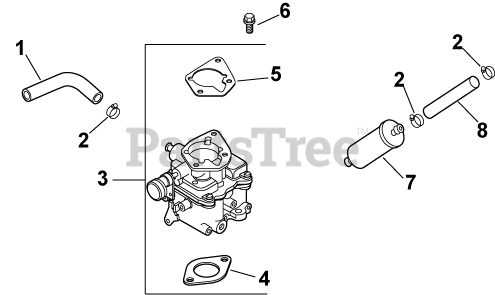

Fuel System 8-24-170 Parts Diagram

  • Title

1

Kohler 25 353 12-S

LINE, FUEL
(Superseded to 25 111 34-S)

$17.99

$

In Stock, only 3 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

3

Kohler 24 853 34-S

KIT, CARBURETOR W/GASKET KSF

$425.99

$

In Stock, only 2 left!

0

4

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 12

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 20+

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

7

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

8

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

Usually ships in 2-5 days

0

2475701-S

Kohler 24 757 01-S

KIT, SOLENOID

Note: NOT ILLUSTRATED

$227.99

$

In Stock, only 1 left!

0

2475702-S

Kohler 24 757 02-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$133.99

$

Usually ships in 2-5 days

0

2475703-S

Kohler 24 757 03-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$111.99

$

Usually ships in 2-5 days

0

2475707-S

Kohler 24 757 07-S

KIT, REPAIR CHOKE

Note: NOT ILLUSTRATED

$94.99

$

In Stock, only 1 left!

0

2475708-S

Kohler 24 757 08-S

KIT, REPAIR ACC PUMP

Note: NOT ILLUSTRATED

$84.99

$

In Stock, only 1 left!

0

2475709-S

Kohler 24 757 09-S

KIT, REPAIR-ACC PUMP SEAL

Note: NOT ILLUSTRATED

$109.99

$

Usually ships in 2-5 days

0
