CH25-68658 - Kohler Command PRO Twin Engine, Made for Repower Spec, 25hp, 18.61kW Oil Pan/Lubrication 3-24-371 Parts Diagram

Command PRO Twin Engine, Made for Repower Spec, 25hp, 18.61kW

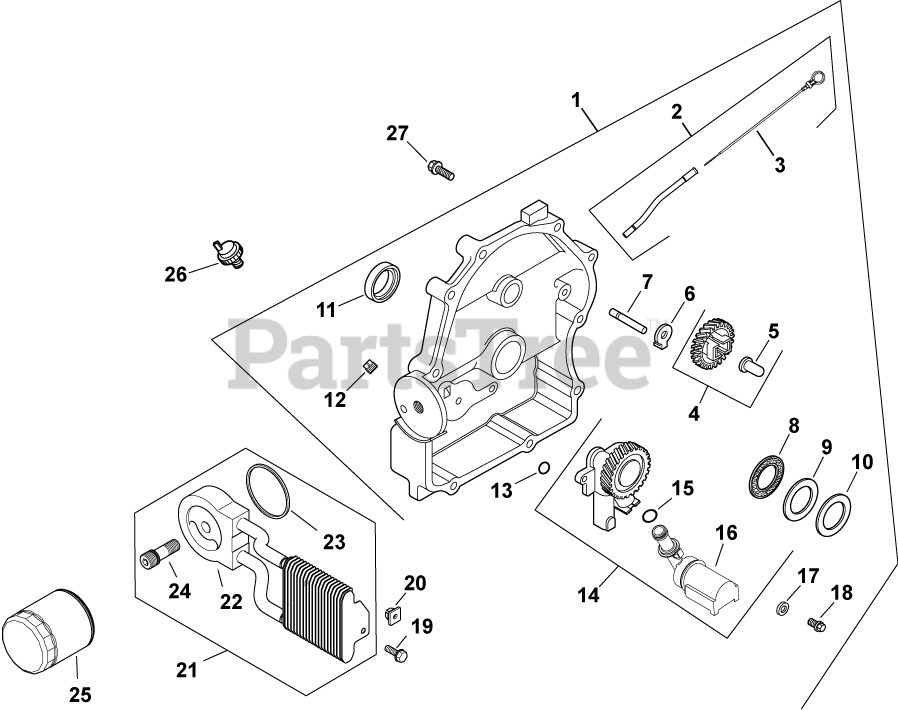

Oil Pan/Lubrication 3-24-371 Parts Diagram

  • Title

1

Kohler 24 755 39-S

KIT, CLOSURE PLATE USE 24 009 230-S
(Superseded to 24 009 230-S)

Note: (includes 2-18)

$538.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

Note: (includes 3)

$45.99

$

In Stock, only 4 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, Qty 8

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: (includes 5)

$76.99

$

In Stock, Qty 7

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 20+

0

6

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$6.49

$

In Stock, Qty 13

0

8

Kohler 24 030 08-S

BEARING, THRUST

$60.99

$

Usually ships in 2-5 days

0

9

Kohler 52 114 04-S

WASHER, THRUST (1MM)

$23.99

$

Usually ships in 2-5 days

0

10

Kohler 24 422 04-S

SHIM, THRUST (BLUE .5MM)

$

$

Not available

2442205-S

Kohler 24 422 05-S

SHIM, THRUST (BLACK .686MM)

$20.99

$

In Stock, only 2 left!

0

11

Kohler 25 032 06-S

SEAL, OIL

$13.99

$

In Stock, Qty 20+

0

12

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 1 left!

0

13

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 20+

0

14

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: (includes 15, 16)

$

$

Not available

15

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.99

$

In Stock, Qty 20+

0

16

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

17

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 7

0

18

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$3.49

$

In Stock, Qty 17

0

19

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

20

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 2 left!

0

21

Kohler 24 594 36-S

KIT, OIL COOLER

Note: (includes 22-24)

$233.99

$

Usually ships in 2-5 days

0

22

Kohler 24 029 75-S

KIT,OIL FLTR ADPTR (W/DRIP LIP)

$134.99

$

Usually ships in 2-5 days

0

23

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 20+

0

24

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 10-S)

$13.99

$

In Stock, only 2 left!

0

25

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

26

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 20+

0

27

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0
