CH25-68692 - Kohler Command PRO Twin Engine, Made for Toro Dingo, 25hp, 18.61kW Fuel System 8-24-332 Parts Diagram

Command PRO Twin Engine, Made for Toro Dingo, 25hp, 18.61kW

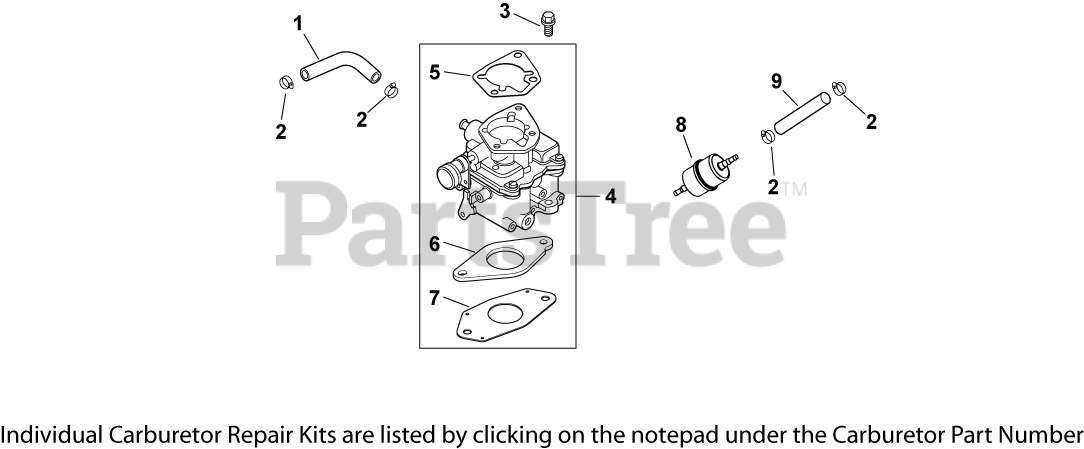

Fuel System 8-24-332 Parts Diagram

  • Title

1

Kohler 24 353 02-S

LINE, FLEXIBLE FUEL 15 1/2"

$8.99

$

In Stock, only 1 left!

0

2

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 7

0

3

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

4

Kohler 24 853 78-S

KIT, CARBURETOR W/GASKETS

Note: (includes 5-7)

$403.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 06-S

GASKET, AIR CLEANER BASE

$2.49

$

In Stock, Qty 5

0

6

Kohler 24 041 17-S

GASKET, CARBURETOR

$9.49

$

In Stock, Qty 11

0

7

Kohler 24 041 53-S

GASKET, CARBURETOR

$3.49

$

In Stock, only 4 left!

0

8

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0
