CH255-3166 - Kohler Command PRO Twin Engine, Made for Ningbo Bopu, 5.5hp, 4kW Ignition Parts Diagram

Command PRO Twin Engine, Made for Ningbo Bopu, 5.5hp, 4kW

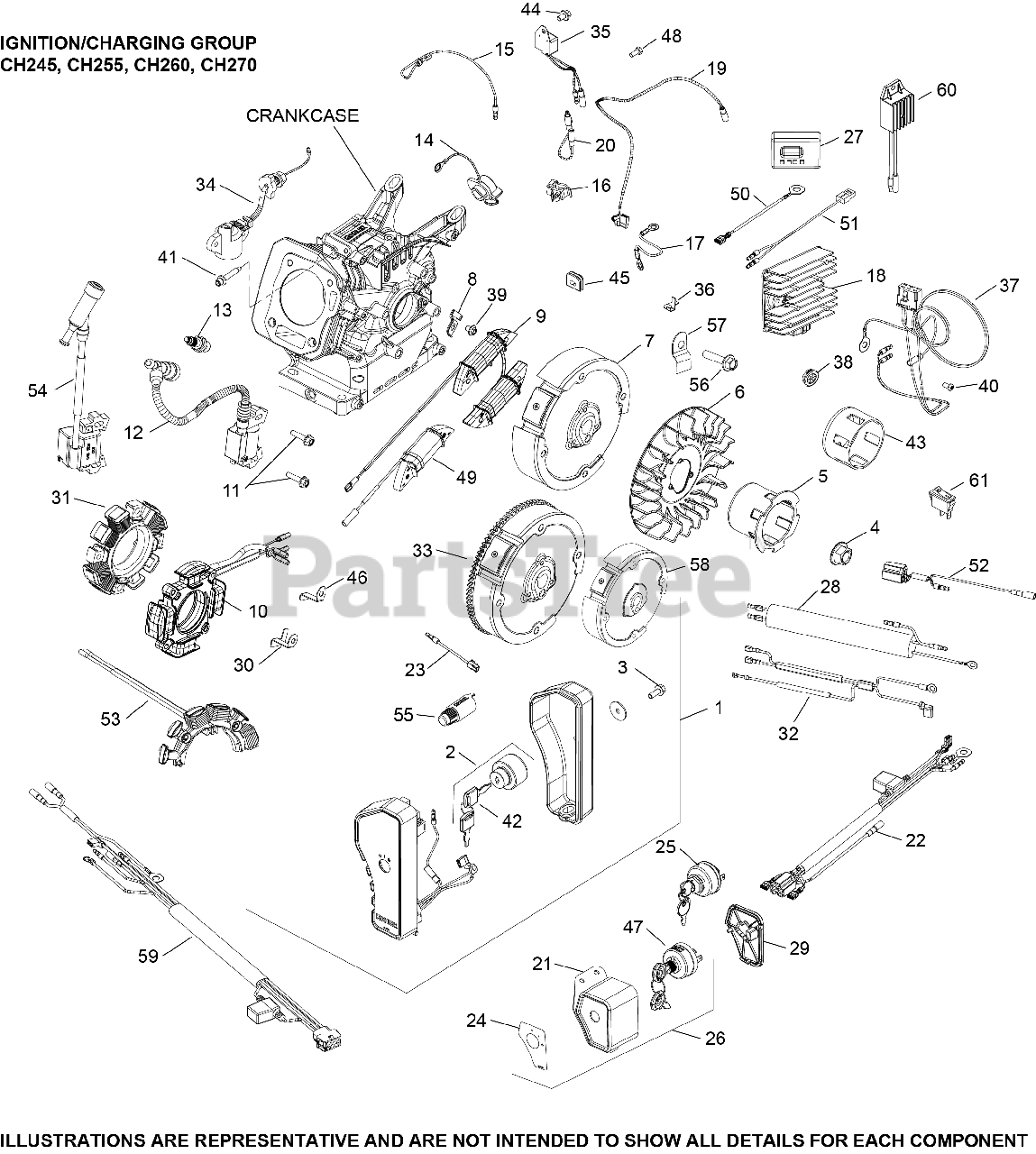

Ignition Parts Diagram

  • Title

4

Kohler 14 100 10-S

NUT, FLYWHEEL (W/SERRATIONS)

$8.49

$

In Stock, only 2 left!

0

6

Kohler 17 157 06-S

FAN, FLYWHEEL

$15.99

$

Usually ships in 2-5 days

0

7

Kohler 18 025 10-S

FLYWHEEL ASSEMBLY

$134.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 186-S

SCREW, M6 X 25 USE 25 086 436-S
(Superseded to 25 086 436-S)

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 18 584 05-S

MODULE, IGNITION

$98.99

$

In Stock, only 3 left!

0

13

Kohler 14 132 11-S

PLUG, SPARK 12MM RFI

$11.99

$

In Stock, Qty 20+

0

34

Kohler 18 099 17-S

SWITCH, OIL SENSOR ASSEMBLY

$25.99

$

Usually ships in 2-5 days

0

35

Kohler 18 526 03-S

CONTROL, OIL ALERT UNIT

$55.99

$

In Stock, only 1 left!

0

36

Kohler 18 154 02-S

CLIP, WIRE HARNESS - DISCONTINUED

$

$

Not available

37

Kohler 18 176 03-S

WIRING HARNESS, MICROSWITCH

$15.99

$

Usually ships in 2-5 days

0

41

Kohler 25 086 468-S

SCREW, HEX SOCKET HEAD CAP

$3.49

$

Usually ships in 2-5 days

0

43

Kohler 17 109 17-S

CUP, STARTER

$24.99

$

Usually ships in 2-5 days

0

44

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0
