CH26-78512 - Kohler Command PRO EFI Engine, Made for Allen Engineering, 26hp, 19.4kW Head/Valve/Breather 4-24-243 (TP-2510-A) Parts Diagram

Command PRO EFI Engine, Made for Allen Engineering, 26hp, 19.4kW

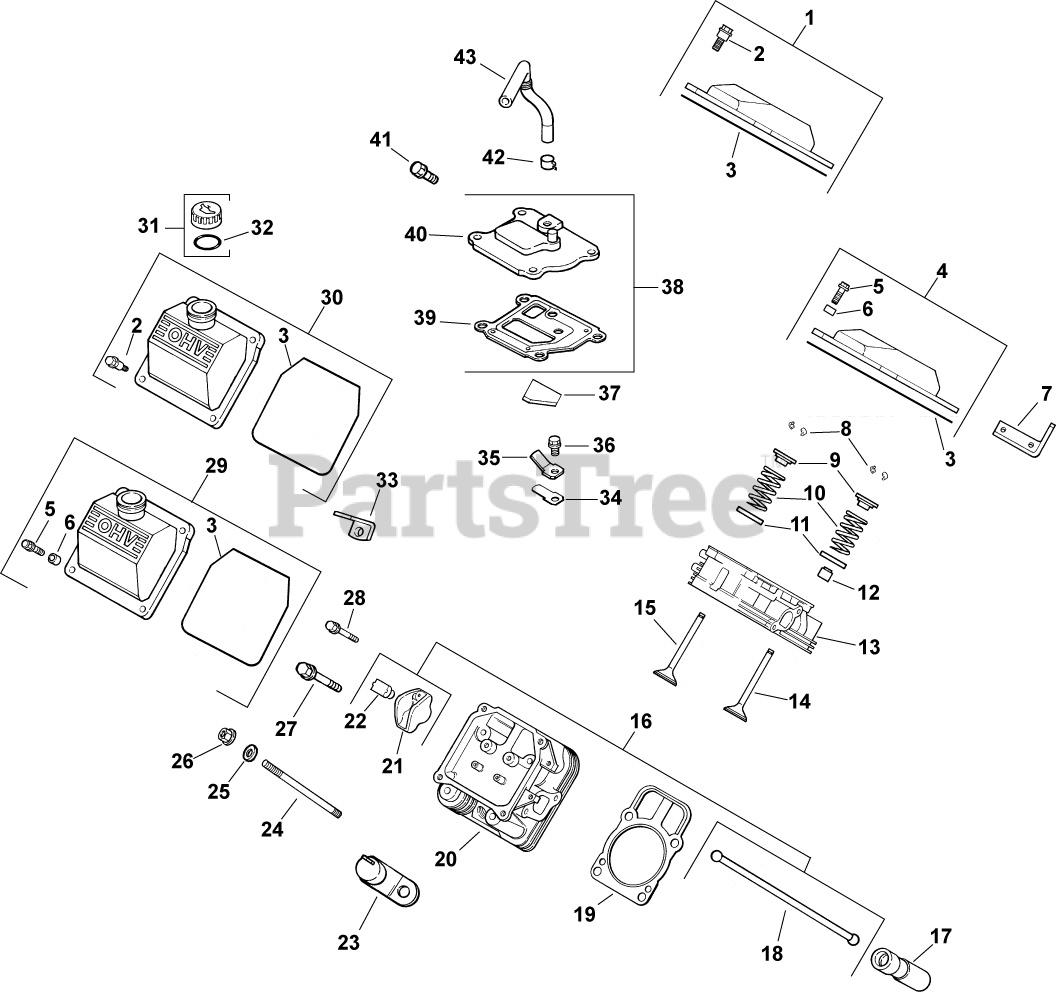

Head/Valve/Breather 4-24-243 (TP-2510-A) Parts Diagram

  • Title

1

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 2,3)

$35.99

$

In Stock, Qty 7

0

2

Kohler 24 086 32-S

SCREW, SHOULDER

$2.99

$

In Stock, only 3 left!

0

3

Kohler 24 153 23-S

O-RING (BLACK)

$18.99

$

In Stock, only 4 left!

0

7

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

8

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 10

0

9

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

Usually ships in 2-5 days

0

10

Kohler 24 089 02-S

SPRING, VALVE

$9.99

$

In Stock, Qty 5

0

11

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

12

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

13

Kohler 24 318 65-S

HEAD, SERVICE ASSY CYL #1-USE 24 318 106
(Superseded to 24 318 106-S)

$272.99

$

In Stock, only 2 left!

0

14

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$36.99

$

In Stock, Qty 7

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

15

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 9

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

16

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 18,21,22)

$53.99

$

In Stock, Qty 6

0

17

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

$27.99

$

In Stock, Qty 10

0

18

Kohler 24 411 05-S

ROD, PUSH

$6.49

$

In Stock, Qty 8

0

19

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

$47.99

$

In Stock, Qty 20+

0

20

Kohler 24 318 66-S

HEAD, SERVICE ASSY CYL #2-USE 24 318 114
(Superseded to 24 818 02-S)

$274.99

$

In Stock, only 2 left!

0

21

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

22

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 7

0

24

Kohler 24 072 09-S

STUD, M8X1.25

Note: (if studs, nuts, and washers were used to mount heads use)

$6.99

$

In Stock, only 2 left!

0

25

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

Note: (if studs, nuts, and washers were used to mount heads use)

$2.49

$

In Stock, Qty 6

0

26

Kohler 24 100 10-S

NUT, FLG M8X1.25

Note: (if studs, nuts, and washers were used to mount heads use)

$4.99

$

In Stock, only 4 left!

0

27

Kohler 24 086 44-S

SCREW-USE 62 086 08-S
(Superseded to 62 086 08-S)

Note: (if hex flange screws were used to mount heads use)

$5.99

$

In Stock, only 2 left!

0

28

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

30

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

Note: (includes 2,3)

$36.99

$

In Stock, only 2 left!

0

31

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (includes 32)

$13.99

$

In Stock, only 2 left!

0

32

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.99

$

In Stock, Qty 7

0

34

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 20+

0

35

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 2 left!

0

36

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

37

Kohler 24 050 01-S

FILTER, BREATHER-USE 24 050 11-S
(Superseded to 24 050 11-S)

$2.49

$

In Stock, Qty 5

0

38

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: (includes 39,40)

$38.99

$

In Stock, only 2 left!

0

39

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$15.99

$

In Stock, Qty 8

0

40

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$38.99

$

In Stock, only 2 left!

0

41

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 7

0

42

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 2 left!

0

43

Kohler 24 326 76-S

HOSE, BREATHER-USE 24 326 89-S
(Superseded to 24 326 89-S)

$11.99

$

In Stock, Qty 8

0
