CH26-78512 - Kohler Command PRO EFI Engine, Made for Allen Engineering, 26hp, 19.4kW Ignition/Electrical 5-24-466 Parts Diagram

Command PRO EFI Engine, Made for Allen Engineering, 26hp, 19.4kW

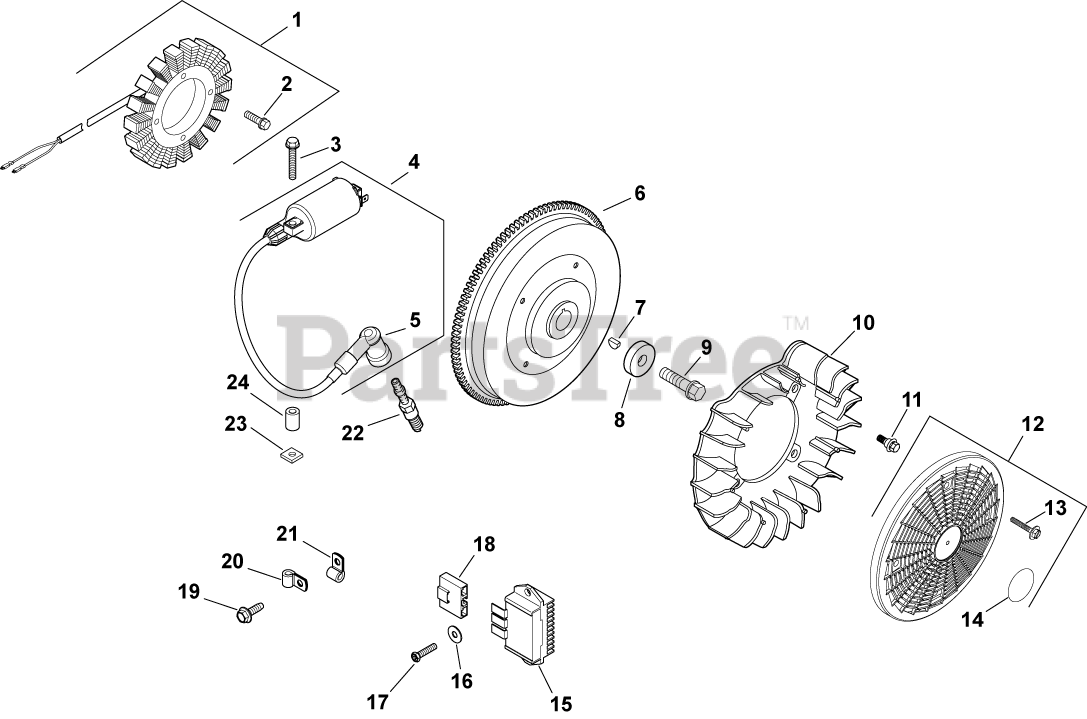

Ignition/Electrical 5-24-466 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (includes 2,18,25 452 01-S, 25 452 06-S & 25 155 06-S)

$194.99

$

In Stock, only 3 left!

0

2

Kohler 25 086 29-S

SCREW, WSH HD TAP #10-24X1"

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 24 086 48-S

SCREW,WSH HD TAP 1/4-14X1 1/2"

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 24 519 02-S

COIL, IGNITION

$216.99

$

In Stock, only 2 left!

0

5

Kohler 24 131 02-S

BOOT, SPARK PLUG

$69.99

$

Usually ships in 2-5 days

0

6

Kohler 24 025 30-S

FLYWHEEL, PAINTED-USE 24 025 23-S
(Superseded to 24 025 23-S)

$283.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 5

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 8

0

10

Kohler 24 157 04-S

FAN

$79.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 47-S

BOLT, SHOULDER

$3.49

$

In Stock, Qty 20+

0

12

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 13,14)

$41.99

$

In Stock, only 2 left!

0

13

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

14

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

15

Kohler 25 403 08-S

REG-RECTIFIER (25 AMP)-USE 25 403 21-S
(Superseded to 25 403 48-S)

$87.99

$

In Stock, Qty 20+

0

16

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

17

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, Qty 14

0

19

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 18

0

20

Kohler 25 237 06-S

CLAMP, INSULATED
(Superseded to 25 237 35-S)

$2.49

$

Usually ships in 2-5 days

0

21

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

22

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

23

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

24

Kohler 24 112 16-S

SPACER

$29.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$4.99

$

In Stock, only 2 left!

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

2545206-S

Kohler 25 452 06-S

TERMINAL

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0

2515509-S

Kohler 25 155 09-S

CONNECTOR ASSEMBLY

Note: NOT ILLUSTRATED (includes 25 155 06-S & 48 155 01-S)

$55.99

$

Usually ships in 2-5 days

0

2515506-S

Kohler 25 155 06-S

CONNECTOR

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

4815501-S

Kohler 48 155 01-S

CONNECTOR

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

2544902-S

Kohler 25 449 02-S

USE 25 449 05-S TACHOMETER
(Superseded to 25 449 05-S)

Note: NOT ILLUSTRATED

$96.99

$

Usually ships in 2-5 days

0
