CH26-78525 - Kohler Command PRO EFI Engine, Basic Version, 26hp, 19.4kW Head/Valve/Breather 4-24-292 Parts Diagram

Command PRO EFI Engine, Basic Version, 26hp, 19.4kW

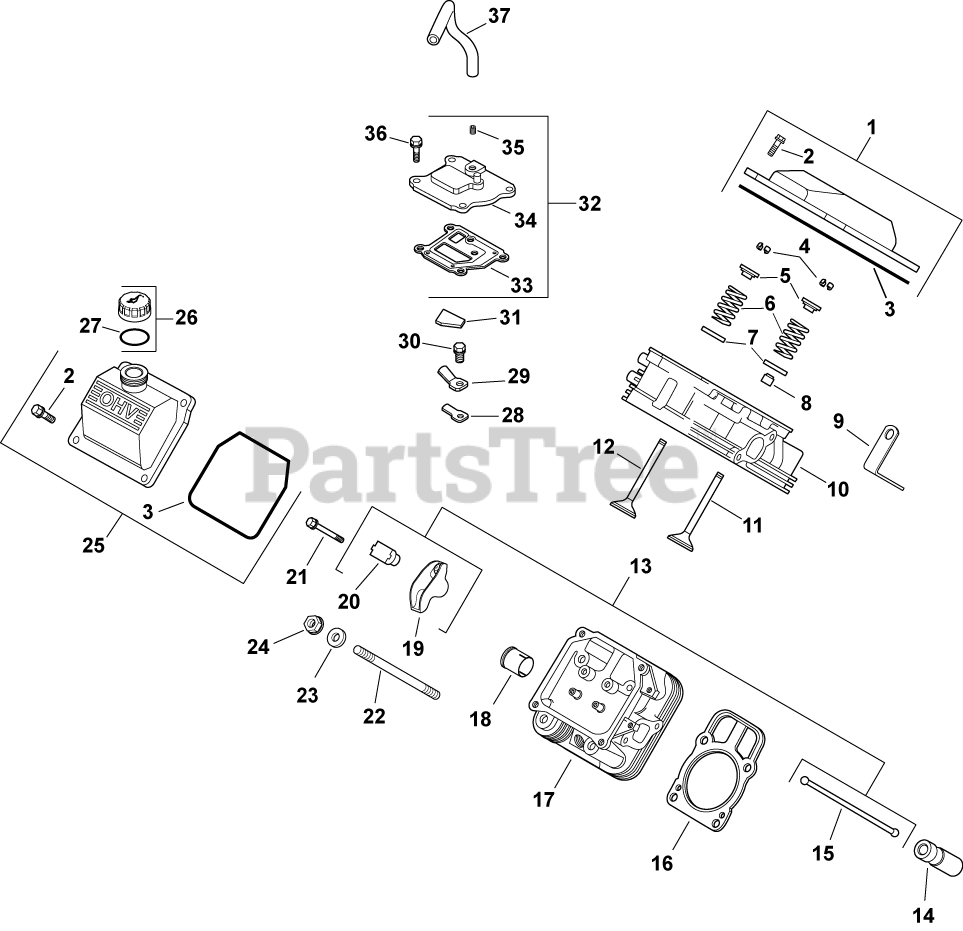

Head/Valve/Breather 4-24-292 Parts Diagram

  • Title

1

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

Note: (includes 2,3)

$35.99

$

In Stock, Qty 7

0

2

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

3

Kohler 24 153 28-S

O-RING (YELLOW) -USE 24 153 30-S
(Superseded to 25 153 24-S)

$10.99

$

In Stock, Qty 20+

0

4

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 7

0

5

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

Usually ships in 2-5 days

0

6

Kohler 24 089 02-S

SPRING, VALVE

$9.99

$

In Stock, Qty 5

0

7

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 2 left!

0

8

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

9

Kohler 24 445 01-S

STRAP, LIFTING-USE 25 445 03-S
(Superseded to 25 445 03-S)

$

$

Not available

10

Kohler 24 318 65-S

HEAD, SERVICE ASSY CYL #1-USE 24 318 106
(Superseded to 24 318 106-S)

$272.99

$

In Stock, only 3 left!

0

11

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$36.99

$

In Stock, Qty 7

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

12

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, only 2 left!

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 2 left!

0

13

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 15,19,20)

$53.99

$

In Stock, only 4 left!

0

14

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

$27.99

$

In Stock, Qty 5

0

15

Kohler 24 411 05-S

ROD, PUSH

$6.49

$

In Stock, Qty 20+

0

16

Kohler 24 841 03-S

CYL HEAD GASKET KIT-USE 24 841 04-S
(Superseded to 24 841 04-S)

Note: (includes head mounting hardware)

$47.99

$

In Stock, Qty 20+

0

17

Kohler 24 318 66-S

HEAD, SERVICE ASSY CYL #2-USE 24 318 114
(Superseded to 24 818 02-S)

$274.99

$

In Stock, only 2 left!

0

18

Kohler 24 605 01-S

LINER, EXHAUST PORT-USE 24 605 07-S
(Superseded to 24 605 07-S)

$17.99

$

In Stock, only 3 left!

0

19

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

20

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 7

0

21

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 072 09-S

STUD, M8X1.25

$6.99

$

In Stock, only 2 left!

0

23

Kohler 24 468 16-S

WASHER, FLAT 8.6 MM

$2.49

$

In Stock, Qty 6

0

24

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.99

$

In Stock, only 4 left!

0

25

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

Note: (includes 2,3)

$36.99

$

In Stock, only 2 left!

0

26

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (includes 27)

$13.99

$

In Stock, only 2 left!

0

27

Kohler 24 153 02-S

O-RING, SLOW JET

$7.99

$

In Stock, only 3 left!

0

28

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 20+

0

29

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 1 left!

0

30

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

31

Kohler 24 050 01-S

FILTER, BREATHER-USE 24 050 11-S
(Superseded to 24 050 11-S)

$2.49

$

In Stock, only 1 left!

0

32

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

Note: (includes 33-35)

$38.99

$

In Stock, only 2 left!

0

33

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$15.99

$

In Stock, Qty 12

0

34

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$38.99

$

In Stock, only 2 left!

0

35

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

36

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.99

$

In Stock, Qty 7

0

37

Kohler 24 326 68-S

HOSE, BREATHER -USE 24 326 63-S
(Superseded to 24 326 63-S)

$6.99

$

In Stock, Qty 11

0

24755147-S

Kohler 24 755 147-S

KIT, CYLINDER HEAD HARDWARE

Note: NOT ILLUSTRATED(SERVICES 1 HEAD. QUANTITIES LISTED ARE FOR BOTH HEADS)(includes 4-8,10,11,14,17-19)

$96.99

$

In Stock, only 2 left!

0
