CH260-0011 - Kohler Command PRO Engine, Made for Husqvarna, 6hp, 4.5kW 09 Engine Controls Parts Diagram

Command PRO Engine, Made for Husqvarna, 6hp, 4.5kW

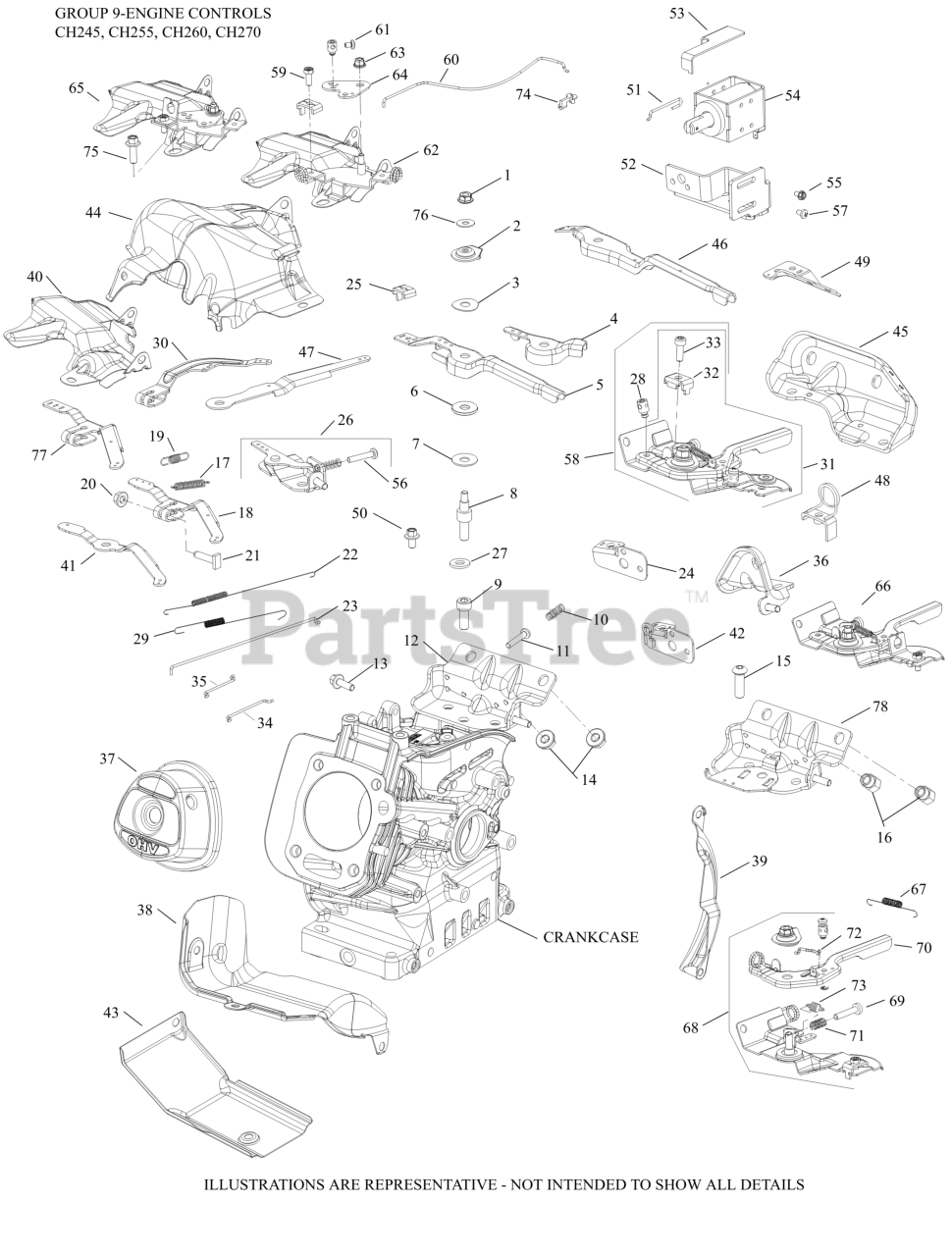

09 Engine Controls Parts Diagram

  • Title

1

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.99

$

In Stock, Qty 20+

0

2

Kohler 17 468 34-S

WASHER, CONTROL LEVER

$2.99

$

In Stock, only 2 left!

0

3

Kohler 25 468 17-S

WASHER, SPRING

$2.99

$

Usually ships in 2-5 days

0

5

Kohler 17 090 36-S

LEVER, CONTROL (THROTTLE)

$12.99

$

Usually ships in 2-5 days

0

6

Kohler 25 468 15-S

WASHER, NYLON CONTROL LEVER

$2.99

$

In Stock, only 2 left!

0

7

Kohler 17 468 19-S

WASHER, FLAT

$2.99

$

In Stock, only 2 left!

0

8

Kohler 17 072 11-S

STUD, CONTROL LEVER

$4.49

$

In Stock, only 1 left!

0

9

Kohler 25 086 253-S

SCREW, HEX SOCKET HD CAP

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 17 089 36-S

SPRING, COMPRESSION

$6.99

$

Usually ships in 2-5 days

0

11

Kohler 25 086 242-S

SCREW, SPEED ADJUSTING

$2.99

$

In Stock, only 1 left!

0

12

Kohler 17 126 117-S

BRACKET, FUEL AND CONTROLS

$23.99

$

Usually ships in 2-5 days

0

14

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 20+

0

18

Kohler 17 090 15-S

KIT, GOVERNOR LEVER

$11.99

$

Usually ships in 2-5 days

0

19

Kohler 17 089 70-S

SPRING, GOVERNOR

$7.99

$

Usually ships in 2-5 days

0

20

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$2.99

$

In Stock, Qty 20+

0

21

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.99

$

In Stock, only 1 left!

0

22

Kohler 17 089 09-S

SPRING, LINKAGE

$7.49

$

Usually ships in 2-5 days

0

23

Kohler 17 079 01-S

LINKAGE, GOVERNOR

$4.49

$

Usually ships in 2-5 days

0

24

Kohler 17 126 171-S

BRACKET, CABLE CLAMP

$5.49

$

Usually ships in 2-5 days

0

25

Kohler 17 237 12-S

CLAMP, CABLE

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 17 237 13-S

KIT, CABLE CLAMP

$9.99

$

Usually ships in 2-5 days

0
