CH270-0101 - Kohler Command PRO Engine, Made for SDMO, 7hp, 5.2kW Head/Valve/Breather Parts Diagram

Command PRO Engine, Made for SDMO, 7hp, 5.2kW

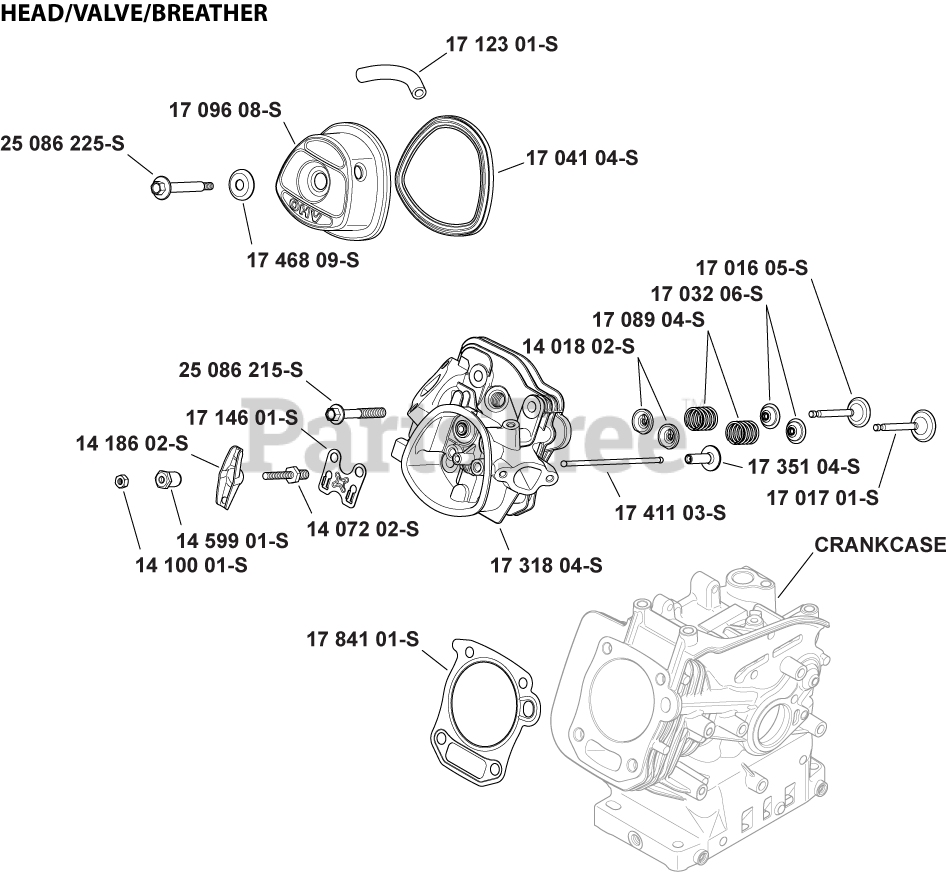

Head/Valve/Breather Parts Diagram

  • Title

1731804-S

Kohler 17 318 04-S

KIT, HEAD ASSEMBLY

Note: (INCLUDES 17 072 09-S, 25 072 19-S)

$126.99

$

Usually ships in 2-5 days

0

1709608-S

Kohler 17 096 08-S

KIT, VALVE COVER

$21.99

$

Usually ships in 2-5 days

0

1746809-S

Kohler 17 468 09-S

WASHER, ASSEMBLY VALVE COVER

$3.99

$

In Stock, only 2 left!

0

1712301-S

Kohler 17 123 01-S

TUBE, BREATHER - USE 17 123 89-S
(Superseded to 18 123 13-S)

$4.49

$

Usually ships in 2-5 days

0

1704104-S

Kohler 17 041 04-S

GASKET, VALVE COVER - USE 17 041 47-S
(Superseded to 17 041 47-S)

$6.99

$

Usually ships in 2-5 days

0

25086225-S

Kohler 25 086 225-S

SCREW, SHOULDER (CKY)-USE 25 086 310-S
(Superseded to 25 086 310-S)

$4.99

$

In Stock, only 1 left!

0

25086215-S

Kohler 25 086 215-S

SCREW, HEX FLANGE CYL HEAD

$2.49

$

Usually ships in 2-5 days

0

1784101-S

Kohler 17 841 01-S

KIT, HEAD GASKET

Note: (INCLUDES HEAD GASKET, 17 041 03-S, 17 041 04-S, 17 041 09-S)

$31.99

$

Usually ships in 2-5 days

0

1701701-S

Kohler 17 017 01-S

VALVE, INTAKE - (#1775527S)
(Superseded to 17 755 27-S)

$87.99

$

Usually ships in 2-5 days

0

1701605-S

Kohler 17 016 05-S

VALVE, EXHAUST - USE 17 755 27-S
(Superseded to 17 755 27-S)

$87.99

$

Usually ships in 2-5 days

0

1703206-S

Kohler 17 032 06-S

SEAL, VALVE STEM

$6.99

$

In Stock, only 2 left!

0

1708904-S

Kohler 17 089 04-S

SPRING, VALVE

$5.49

$

Usually ships in 2-5 days

0

1401802-S

Kohler 14 018 02-S

RETAINER, VALVE SPRING

$5.99

$

In Stock, only 2 left!

0

1735104-S

Kohler 17 351 04-S

LIFTER, VALVE

$8.99

$

Usually ships in 2-5 days

0

1741103-S

Kohler 17 411 03-S

ROD, PUSH
(Superseded to 18 411 01-S)

$3.99

$

Usually ships in 2-5 days

0

1714601-S

Kohler 17 146 01-S

PLATE, PUSHROD GUIDE

$6.49

$

Usually ships in 2-5 days

0

1407202-S

Kohler 14 072 02-S

STUD, ROCKER ARM - (#1407222S)
(Superseded to 14 072 29-S)

$6.49

$

In Stock, only 1 left!

0

1418602-S

Kohler 14 186 02-S

ARM, ROCKER

$7.49

$

In Stock, only 2 left!

0

1459901-S

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.49

$

Usually ships in 2-5 days

0

1410001-S

Kohler 14 100 01-S

NUT, HEX JAM

$2.49

$

In Stock, Qty 7

0

1704103-S

Kohler 17 041 03-S

KIT, INTAKE GASKET

Note: NOT ILLUSTRATED (INCLUDES AIR CLEANER BASE GASKET, INSULATOR TO CYLINDER HEAD GASKET, CARBURETOR TO INSULATOR GASKET)

$10.99

$

In Stock, Qty 16

0

1704109-S

Kohler 17 041 09-S

GASKET, MUFFLER

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 3 left!

0

1707209-S

Kohler 17 072 09-S

STUD, CARBURETOR

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2507219-S

Kohler 25 072 19-S

STUD, EXHAUST

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1775527-S

Kohler 17 755 27-S

KIT, VALVE AND PUSH ROD

$87.99

$

Usually ships in 2-5 days

0
