CH270-3118 - Kohler Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW Fuel System Parts Diagram

Command PRO Engine, Made for RBI Chesapeake, 7hp, 5.2kW

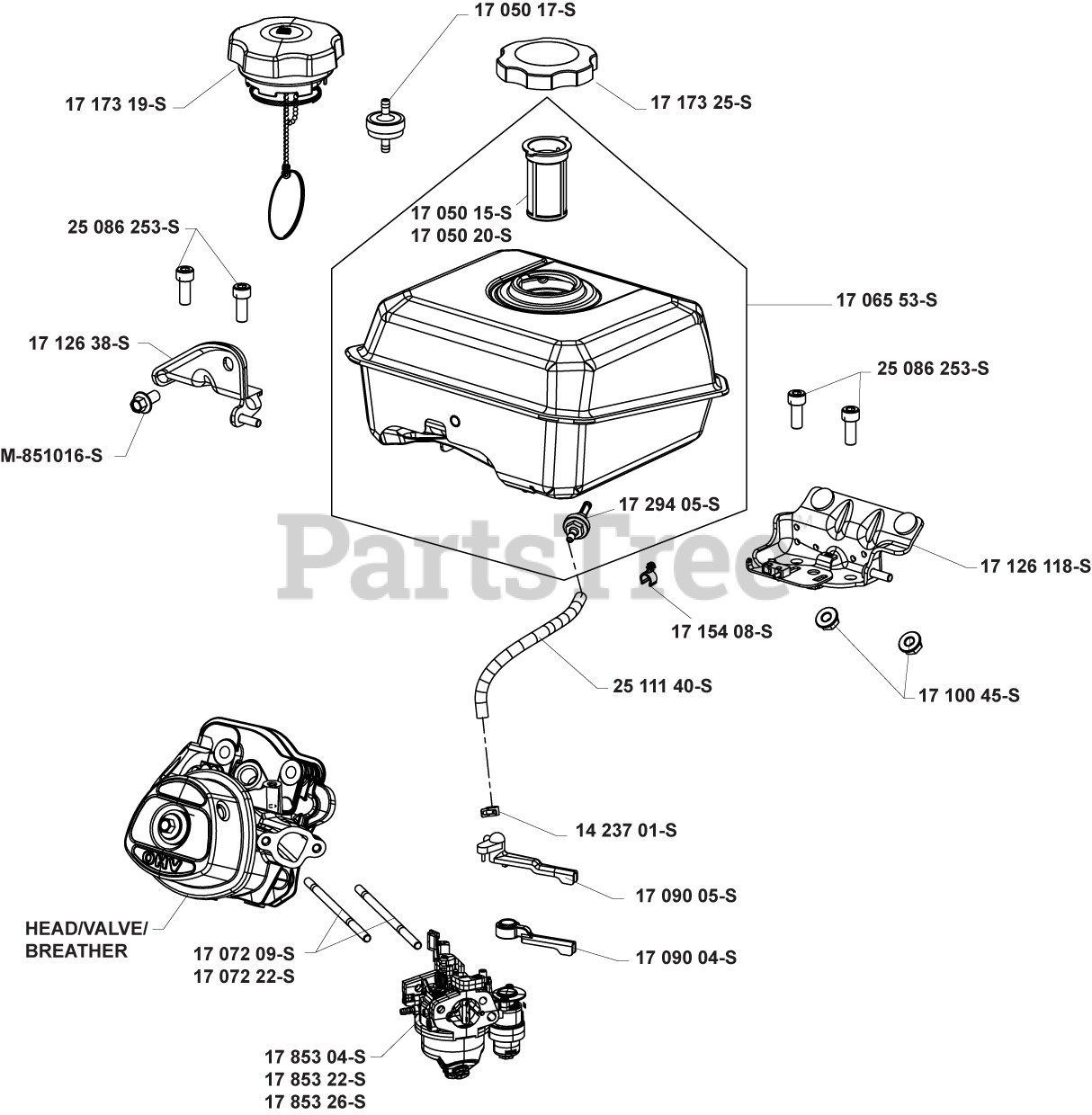

Fuel System Parts Diagram

  • Title

1706553-S

Kohler 17 065 53-S

TANK, ASSY FUEL
(Superseded to 17 065 88-S)

Note: (INCLUDES 17 050 15-S, 17 294 05-S)

$153.99

$

Usually ships in 2-5 days

0

1705020-S

Kohler 17 050 20-S

FILTER, FUEL TANK

$6.49

$

In Stock, only 2 left!

0

1729405-S

Kohler 17 294 05-S

FITTING, FUEL ASSY
(Superseded to 17 294 19-S)

$8.49

$

In Stock, only 2 left!

0

1717319-S

Kohler 17 173 19-S

CAP, EVAPORATIVE EMISSIONS
(Superseded to 17 173 49-S)

$56.99

$

In Stock, only 2 left!

0

1712638-S

Kohler 17 126 38-S

BRACKET ASSY, FUEL TANK

$10.99

$

Usually ships in 2-5 days

0

M-851016-S

Kohler M-851016-S

SCREW, FLG 8X1.25X16

$6.99

$

In Stock, only 1 left!

0

25086253-S

Kohler 25 086 253-S

SCREW, HEX SOCKET HD CAP (CKY)

$2.99

$

Usually ships in 2-5 days

0

1423701-S

Kohler 14 237 01-S

CLAMP, FUEL LINE

$2.99

$

In Stock, only 3 left!

0

1715408-S

Kohler 17 154 08-S

CLIP, FUEL HOSE

$2.99

$

Usually ships in 2-5 days

0

2511140-S

Kohler 25 111 40-S

LINE, FUEL (10"-CUT TO LENGTH)

$8.99

$

In Stock, only 2 left!

0

1785322-S

Kohler 17 853 22-S

KIT, CARBURETOR ASSEMBLY

Note: (INCLUDES 17 041 03-S) (FOR SERVICE USE 14 757 01-S)

$121.99

$

In Stock, only 1 left!

0

1707209-S

Kohler 17 072 09-S

STUD, CARBURETOR

$3.99

$

Usually ships in 2-5 days

0
