CH395-0055 - Kohler Command PRO Engine, Basic Version, 9.5hp, 7.1kW 08 Fuel System Parts Diagram

Command PRO Engine, Basic Version, 9.5hp, 7.1kW

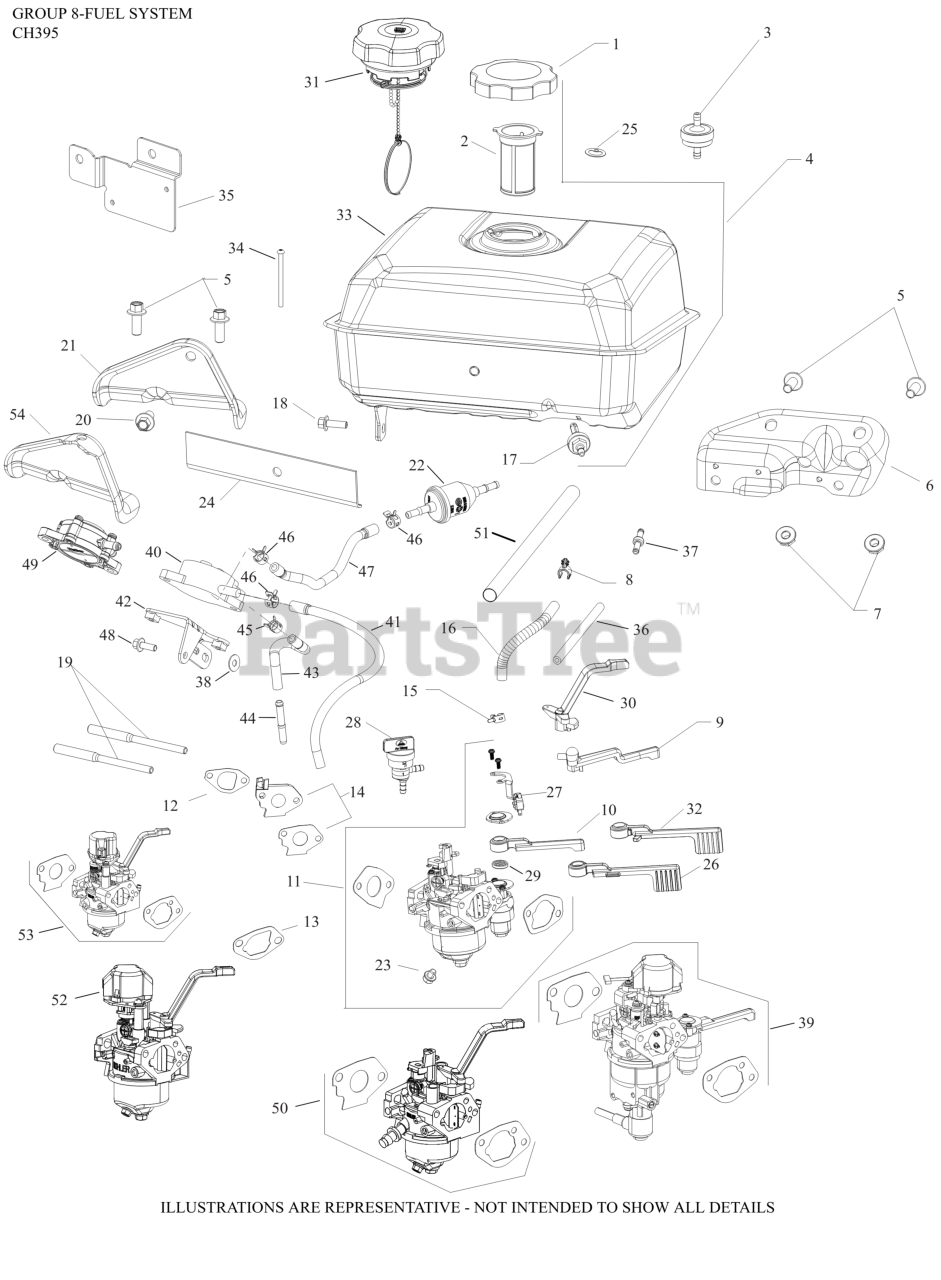

08 Fuel System Parts Diagram

  • Title

5

Kohler 25 086 224-S

SCREW, M8 X 20

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 17 853 24-S

KIT, CARBURETOR-USE 17 853 95-S
(Superseded to 17 853 95-S)

Note: [ 041 03-S FOR SERVICE 14 757 01-S

$101.99

$

In Stock, only 1 left!

0

14

Kohler 17 168 03-S

INSULATOR AND GASKET KIT

$6.99

$

In Stock, only 1 left!

0

15

Kohler 14 237 01-S

CLAMP, FUEL LINE

Note: Before S/N 4921800011

$2.49

$

In Stock, Qty 13

0

16

Kohler 17 111 40-S

FUEL HOSE, LOW PERMEATION

Note: After S/N 4921800001

$6.49

$

Usually ships in 2-5 days

0

16

Kohler 25 111 40-S

LINE, FUEL (10"-CUT TO LENGTH)

Note: Before S/N 4921800011

$7.49

$

In Stock, only 1 left!

0

19

Kohler 17 072 31-S

STUD, INTAKE

$6.49

$

Usually ships in 2-5 days

0

22

Kohler 25 050 21-S

FILTER,FUEL 75 MICRON (GRAVTY FEED)

$8.99

$

In Stock, Qty 20+

0

30

Kohler 17 090 52-S

LEVER, CHOKE

$4.99

$

Usually ships in 2-5 days

0

39

Kohler 17 853 95-S

KIT, CARBURETOR COMPLETE

$101.99

$

In Stock, only 1 left!

0

45

Kohler 17 237 14-S

CLAMP, HOSE

Note: After S/N 4921800001

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 17 755 07-S

KIT, HIGH ALTITUDE (4,000-8,000 FT)

$17.99

$

Usually ships in 2-5 days

0

NI

Kohler 17 755 21-S

KIT, HIGH ALTITUDE (ABOVE 8,000 FT.)

$11.99

$

Usually ships in 2-5 days

0

NI

Kohler 17 757 03-S

KIT, CARBURETOR REPAIR

$19.99

$

In Stock, Qty 6

0
