CH395-3123 - Kohler Command PRO Engine, Made for KPP, 9.5hp, 7.1kW Engine Controls Group CH395-3123 CH395 Parts Diagram

Command PRO Engine, Made for KPP, 9.5hp, 7.1kW

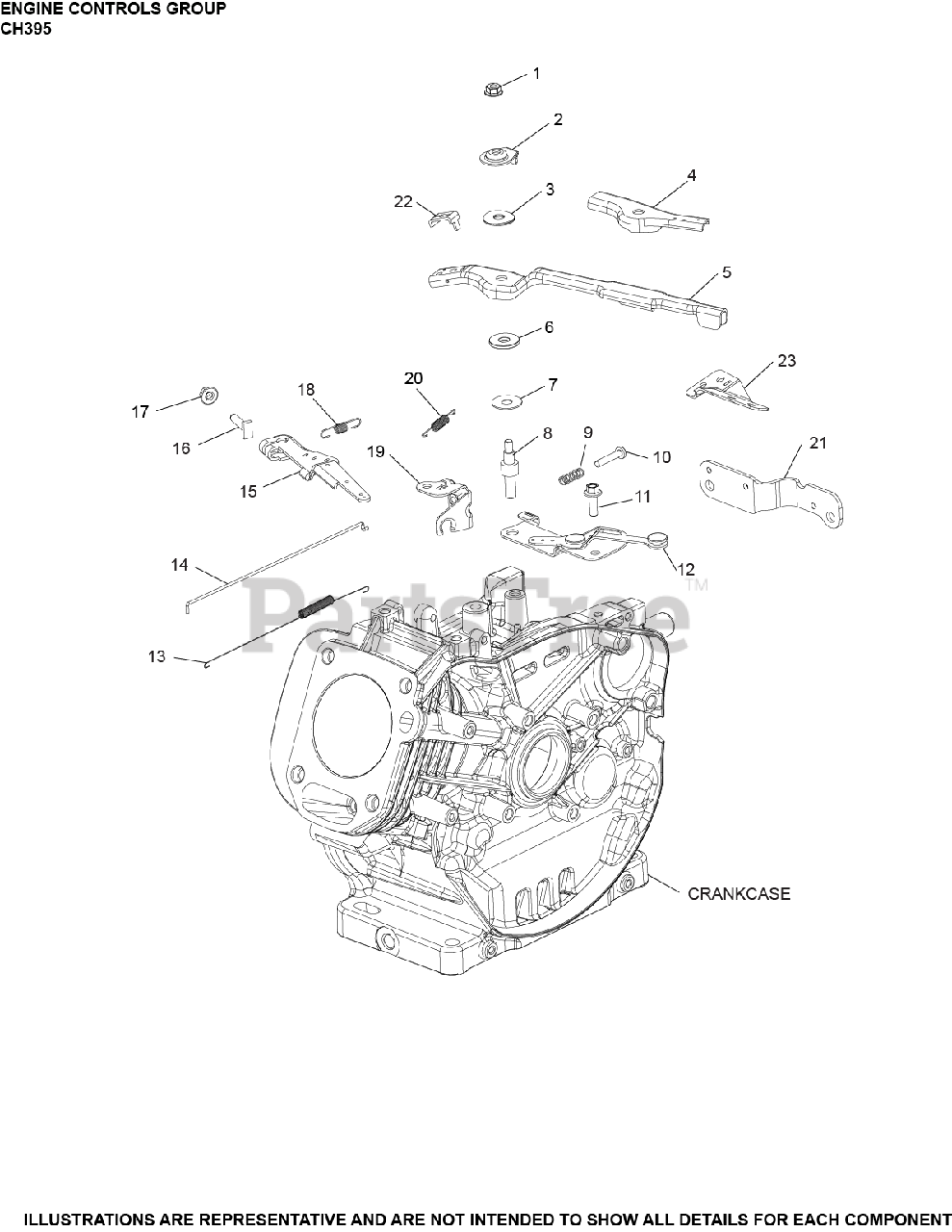

Engine Controls Group CH395-3123 CH395 Parts Diagram

  • Title

1

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, Qty 8

0

4

Kohler 17 090 37-S

LEVER, FIXED SPEED
(Superseded to 17 090 80-S)

$4.99

$

Usually ships in 2-5 days

0

6

Kohler 25 468 15-S

WASHER, NYLON CONTROL LEVER

$2.49

$

In Stock, only 2 left!

0

7

Kohler 17 468 19-S

WASHER, FLAT

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 17 072 11-S

STUD, CONTROL LEVER

$3.49

$

In Stock, only 1 left!

0

9

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 242-S

SCREW, SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 25 086 223-S

SCREW, M6 X18

$2.49

$

In Stock, only 4 left!

0

12

Kohler 17 126 136-S

BRACKET, CONTROL ASSEMBLY
(Superseded to 17 126 49-S)

$12.99

$

In Stock, only 1 left!

0

13

Kohler 17 089 59-S

SPRING, LINKAGE

$5.99

$

Usually ships in 2-5 days

0

14

Kohler 17 079 02-S

LINKAGE, GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

15

Kohler 17 090 54-S

KIT, GOVERNOR LEVER

$8.99

$

Usually ships in 2-5 days

0

16

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

Usually ships in 2-5 days

0

17

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$1.99

$

In Stock, only 3 left!

0

18

Kohler 17 089 13-S

SPRING, GOVERNOR

$6.49

$

Usually ships in 2-5 days

0
