CH440-3157 - Kohler Command PRO Engine, Made for Jiangsu Sumec, 14hp, 10.5kW Engine Controls Group Parts Diagram

Command PRO Engine, Made for Jiangsu Sumec, 14hp, 10.5kW

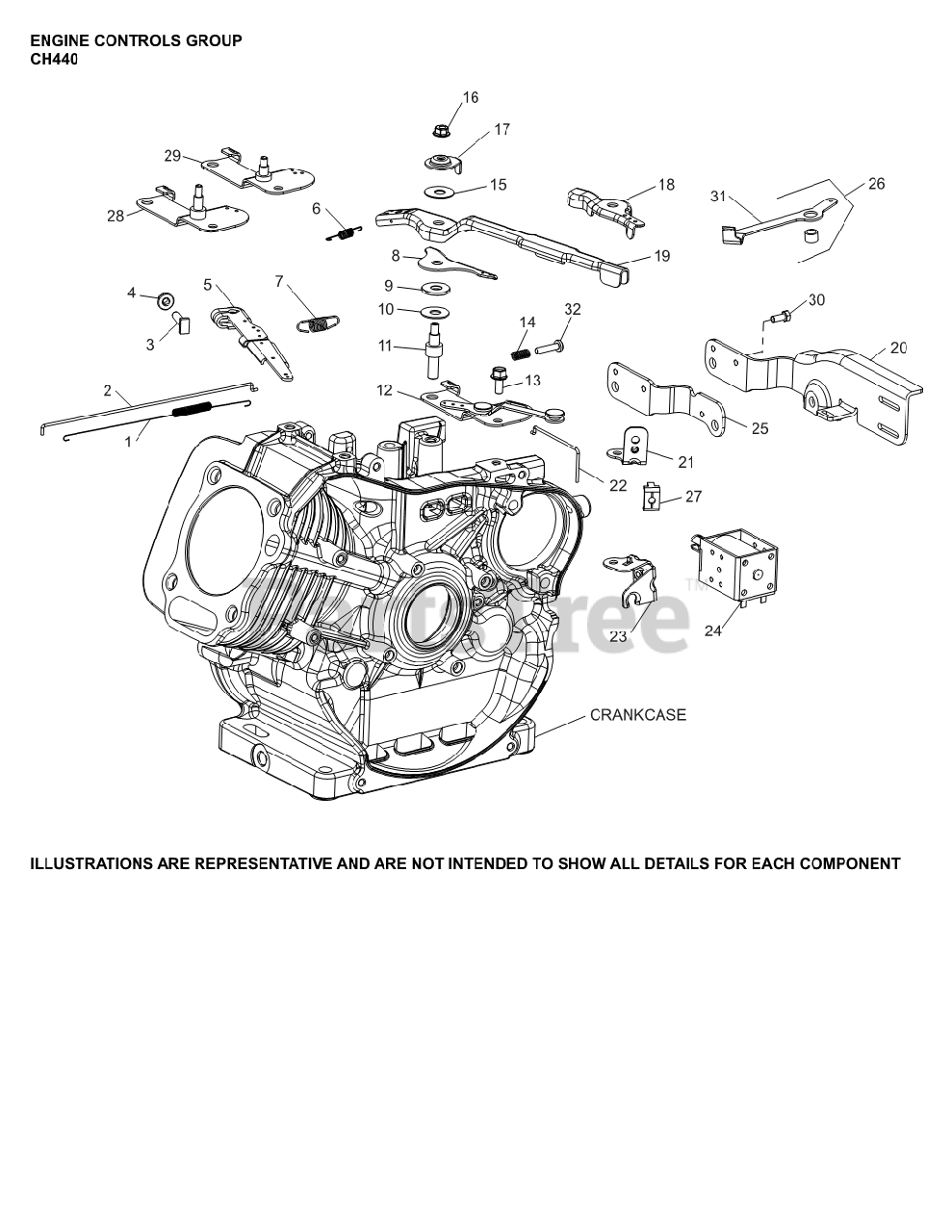

Engine Controls Group Parts Diagram

  • Title

1

Kohler 17 089 59-S

SPRING, LINKAGE

$5.99

$

In Stock, only 1 left!

0

2

Kohler 17 079 03-S

LINKAGE, GOVERNOR

$3.49

$

In Stock, only 1 left!

0

3

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 14 100 08-S

NUT, HEX FLANGE (M6) - USE 14 100 16-S
(Superseded to 14 100 16-S)

$1.99

$

In Stock, only 3 left!

0

5

Kohler 17 090 64-S

LEVER, GOVERNOR

$8.49

$

In Stock, only 1 left!

0

7

Kohler 17 089 63-S

SPRING, GOVERNOR

$5.99

$

Usually ships in 2-5 days

0

8

Kohler 17 090 47-S

LEVER, FIXED SPEED

$4.99

$

Usually ships in 2-5 days

0

11

Kohler 17 072 42-S

STUD, CONTROL LEVER

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

16

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, Qty 6

0

24

Kohler 17 435 01-S

SOLENOID, IDLE (WELDED) USE 17 435 09-S
(Superseded to 17 435 09-S)

$158.99

$

Usually ships in 2-5 days

0

32

Kohler 25 086 270-S

SCREW, SPEED ADJUSTING (CKY)

$2.49

$

Usually ships in 2-5 days

0

1709052-S

Kohler 17 090 52-S

LEVER, CHOKE

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

17126199-S

Kohler 17 126 199-S

BRACKET, IDLE DOWN SOLENOID

Note: NOT ILLUSTRATED

$13.99

$

Usually ships in 2-5 days

0

17126209-S

Kohler 17 126 209-S

BRACKET, CONTROL

Note: NOT ILLUSTRATED

$9.99

$

Usually ships in 2-5 days

0

1738033-S

Kohler 17 380 33-S

PIN, ROLL

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2443506-S

Kohler 24 435 06-S

SOLENOID, IDLE

Note: NOT ILLUSTRATED

$156.99

$

In Stock, only 3 left!

0

25086111-S

Kohler 25 086 111-S

SCREW, SLT WSH HD 8-32X1/4"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

1709075-S

Kohler 17 090 75-S

LEVER ASSEMBLY, GOV. IDLE PULL DOWN

Note: NOT ILLUSTRATED

$8.99

$

Usually ships in 2-5 days

0
