CH5-1509 - Kohler Command PRO Engine, Made for Associate Eng, 5hp Fuel System - Carburetor (TP-2356-A) Rev 10/26/2006 Parts Diagram

Command PRO Engine, Made for Associate Eng, 5hp

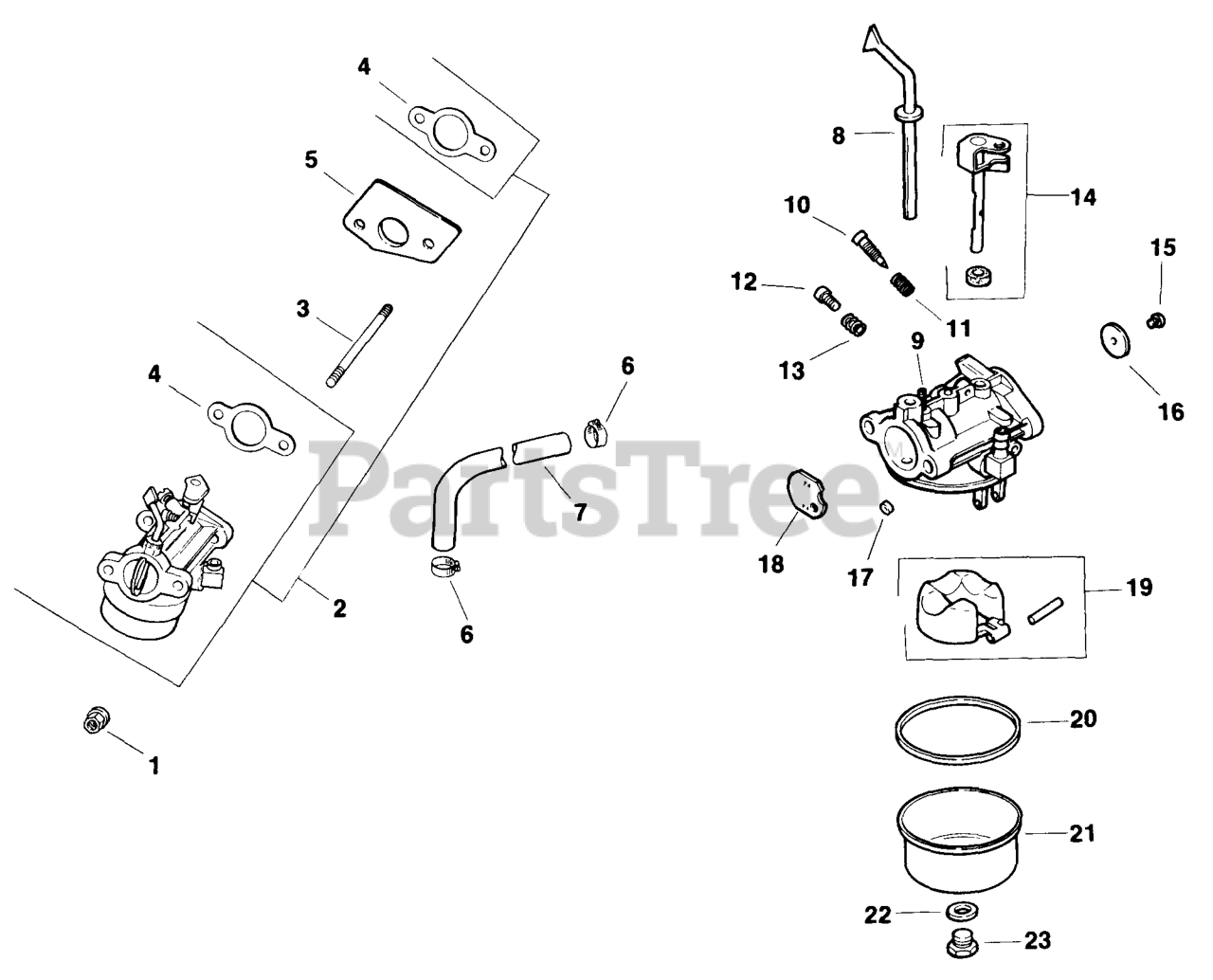

Fuel System - Carburetor (TP-2356-A) Rev 10/26/2006 Parts Diagram

  • Title

1

Kohler SM-0641060

Nut, hex. flange M6x1

$

$

Not available

2

Kohler 15 853 01-S

USE 15 853 04-S CARBURETOR KIT
(Superseded to 15 853 04-S)

Note: Includes 4,15 053 01 For information only not available separately.

$

$

Not available

1505301

Kohler 15 053 01

USE 15 853 01

Note: Includes 9-23. For information only not available separately.

$

$

Not available

3

Kohler M-0629091

Stud, carburetor mounting M6x1x91.9

$

$

Not available

4

Kohler 15 041 02-S

GASKET, CARBURETOR

$2.49

$

In Stock, only 3 left!

0

5

Kohler 15 112 06-S

SPACER

$20.99

$

Usually ships in 2-5 days

0

6

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

$4.99

$

In Stock, Qty 12

0

7

Kohler 15 353 02-S

LINE

$6.49

$

Usually ships in 2-5 days

0

8

Kohler 15 144 04-S

SHAFT, ASSEMBLY CHOKE

$11.99

$

Usually ships in 2-5 days

0

9

Kohler 15 089 05-S

SPRING - DISCONTINUED

$

$

Not available

10

Kohler 15 368 02-S

NEEDLE - DISCONTINUED

$

$

Not available

11

Kohler 12 089 09-S

SPRING

$2.49

$

In Stock, only 3 left!

0

12

Kohler 12 086 04-S

SCREW

$4.49

$

In Stock, only 2 left!

0

13

Kohler 12 089 09-S

SPRING

$2.49

$

In Stock, only 3 left!

0

14

Kohler 15 144 05-S

SHAFT, THROTTLE W/LEVER

$25.99

$

Usually ships in 2-5 days

0

15

Kohler 25 086 27-S

SCREW, VALVE

$4.49

$

Usually ships in 2-5 days

0

16

Kohler 15 146 04-S

PLATE - (#DSC)

$

$

Not available

17

Kohler 12 337 02-S

JET, MAIN (.034) - DISCONTINUED

$

$

Not available

18

Kohler 15 146 03-S

PLATE - DISCONTINUED

$

$

Not available

19

Kohler 12 757 02-S

KIT, REPAIR FLOAT

$13.99

$

In Stock, Qty 8

0

20

Kohler 12 041 05-S

GASKET, FUEL BOWL

$4.49

$

In Stock, Qty 14

0

21

Kohler 12 104 01-S

BOWL

$6.99

$

In Stock, only 3 left!

0

22

Kohler 12 041 06-S

USE 25 041 03-S GASKET
(Superseded to 25 041 03-S)

$7.49

$

In Stock, Qty 11

0

23

Kohler 12 086 05-S

SCREW, FUEL BOWL RETAINER

$4.99

$

Usually ships in 2-5 days

0

1575503-S

Kohler 15 755 03-S

KIT, HIGH ALTITUDE (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available

1575702-S

Kohler 15 757 02-S

KIT, CARBURETOR REPAIR - (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available

2511313

Kohler 25 113 13

DECAL - USE 15 113 16
(Superseded to 15 113 16)

Note: NOT ILLUSTRATED.

$

$

Not available

1511309-S

Kohler 15 113 09-S

DECAL - DISCONTINUED

Note: NOT ILLUSTRATED.

$

$

Not available
