CH640-0026 - Kohler Command PRO Engine, Made for Central Power, 20.5hp, 15.3kW Oil Pan/Lubrication 3-24-742 Parts Diagram

Command PRO Engine, Made for Central Power, 20.5hp, 15.3kW

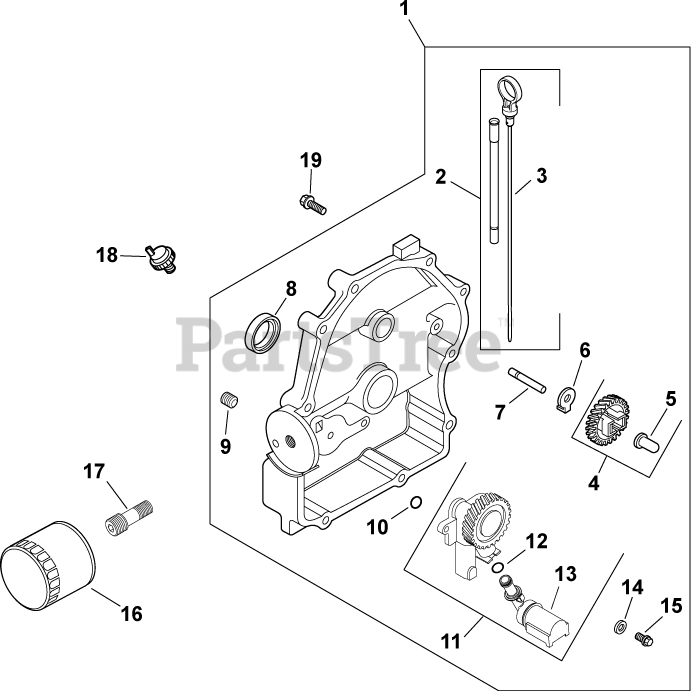

Oil Pan/Lubrication 3-24-742 Parts Diagram

  • Title

1

Kohler 24 009 150-S

CLOSURE PLATE ASSEMBLY USE 24 009 237-S
(Superseded to 24 009 237-S)

$609.99

$

In Stock, only 1 left!

0

2

Kohler 24 755 121-S

KIT, DIPSTICK/DIPSTICK TUBES

$45.99

$

In Stock, only 1 left!

0

3

Kohler 24 038 10-S

DIPSTICK

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$76.99

$

In Stock, only 2 left!

0

5

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 7

0

6

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$5.99

$

In Stock, only 1 left!

0

8

Kohler 25 032 06-S

SEAL, OIL

$13.99

$

In Stock, Qty 19

0

9

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-RING

$8.99

$

In Stock, Qty 6

0

11

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.99

$

In Stock, Qty 13

0

13

Kohler 24 381 04-S

PICK-UP, OIL

$34.99

$

In Stock, only 2 left!

0

14

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

15

Kohler M-645030-S

SCREW, FLNGTHDFRM M6X1.0X30-(#25086401S)
(Superseded to 25 086 401-S)

$3.99

$

In Stock, only 2 left!

0

16

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

17

Kohler 24 136 01-S

NIPPLE, OIL FILTER
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

18

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 6

0

19

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$3.49

$

In Stock, Qty 20+

0
