CH640-3166 - Kohler Command PRO Engine, Made for Toro, 20.5hp, 15.3kW Cylinder Head/ Breather Group CH18-750 Parts Diagram

Command PRO Engine, Made for Toro, 20.5hp, 15.3kW

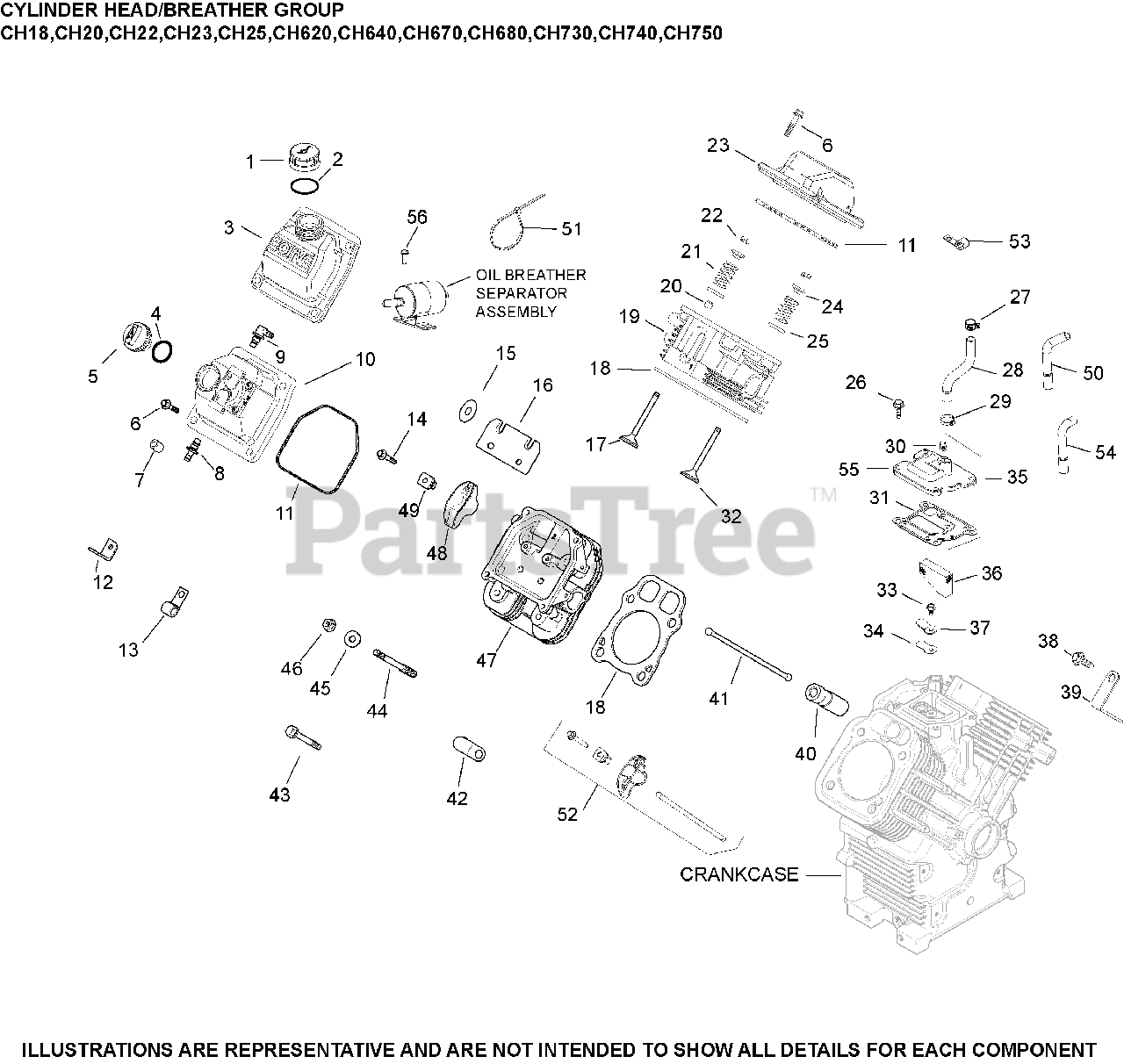

Cylinder Head/ Breather Group CH18-750 Parts Diagram

  • Title

1

Kohler 24 755 46-S

KIT, OIL FILL CAP (YELLOW)

$11.99

$

In Stock, only 3 left!

0

2

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.49

$

In Stock, only 3 left!

0

3

Kohler 24 755 140-S

KIT, VALVE COVER-OIL FILL

$36.99

$

In Stock, Qty 11

0

6

Kohler M-651030-S

SCREW, FLG M6X1.0X30

$

$

Not available

11

Kohler 24 153 30-S

O-RING (YELLOW), VALVE COVER

$11.99

$

In Stock, Qty 20+

0

14

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 17

0

17

Kohler 32 016 01-S

VALVE, EXHAUST

$14.99

$

In Stock, Qty 20+

0

17

Kohler 32 016 02-S

VALVE, EXHAUST (.25)

$15.99

$

In Stock, only 3 left!

0

18

Kohler 24 841 02-S

KIT, GSKT CYL HD (C22-23 674CC)

$45.99

$

In Stock, Qty 20+

0

19

Kohler 24 318 173-S

HEAD, ASSEMBLY CYLINDER (#1)
(Superseded to 24 318 202-S)

$240.99

$

In Stock, only 1 left!

0

20

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

21

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, Qty 12

0

22

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 20+

0

23

Kohler 24 755 141-S

KIT, VALVE COVER-PLAIN

$35.99

$

In Stock, Qty 7

0

24

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 11

0

25

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, Qty 15

0

27

Kohler 25 237 37-S

CLAMP SPRING HOSE

$2.49

$

In Stock, Qty 13

0

28

Kohler 24 326 89-S

HOSE, BREATHER

$9.49

$

In Stock, Qty 20+

0

31

Kohler 24 041 67-S

GASKET, BREATHER

$12.99

$

In Stock, Qty 20+

0

32

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 18

0

32

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$31.99

$

In Stock, only 3 left!

0

33

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

34

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, Qty 6

0

35

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

$30.99

$

In Stock, only 4 left!

0

36

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

In Stock, Qty 20+

0

37

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, Qty 12

0

38

Kohler 25 086 395-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 12

0

39

Kohler 25 445 03-S

STRAP, LIFT

$2.49

$

In Stock, only 1 left!

0

40

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC - (#2535111S)
(Superseded to 25 351 11-S)

$22.99

$

In Stock, Qty 20+

0

41

Kohler 24 411 05-S

ROD, PUSH

$4.99

$

In Stock, Qty 20+

0

43

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.49

$

In Stock, Qty 20+

0

47

Kohler 24 318 174-S

HEAD, ASSEMBLY CYLINDER (#2)
(Superseded to 24 318 203-S)

$240.99

$

In Stock, only 1 left!

0

48

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 3 left!

0

49

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 12

0

52

Kohler 24 755 66-S

KIT, VALVE TRAIN

$44.99

$

In Stock, Qty 5

0

2401805-S

Kohler 24 018 05-S

RETAINER, VALVE GUIDE (KM)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 9

0
